Product catalog summary
Overview
The document provides a detailed description of Streamtek's Air Conveyor systems, which are designed to efficiently convey various materials such as plastic pellets, chips, sawdust, and more using compressed air. These systems are maintenance-free, cost-effective, and do not require electricity.

How Air Conveyors Work
Air Conveyors operate by using compressed air that flows through an inlet into a plenum chamber. The air is then injected into the throat through nozzles, creating a vacuum that draws in materials and accelerates them through the unit for long-distance conveying.

Types of Air Conveyors
1. Threaded Air Conveyors: Convert ordinary pipes into conveying systems for bulk materials. They attach easily to standard plumbing pipe couplers.
2. Non-Threaded Air Conveyors: Convert tubes or hoses into conveying systems by clamping standard sizes to each end.

Selection Criteria
When selecting an Air Conveyor, consider the diameter of parts conveyed, the rate (weight or volume), the material of the conveyor (stainless steel or aluminum), and the diameter of the hose or tube used.

Comparison Chart
The document includes a comparison chart detailing temperature and corrosion ratings for different materials:
- Aluminum: 272°F (133°C), Good corrosion rating
- Stainless Steel: 403°F (206°C), Excellent corrosion rating
- High Temp Stainless Steel: 956°F (513°C), Excellent corrosion rating

Applications
Air Conveyors are used in various industries including automotive, bottling, food, manufacturing, paper/plastic, and pharmaceuticals for conveying items like screws, bottle caps, bulk candy, and more.

Advantages
- No moving parts
- No electricity required
- Zero maintenance
- Longer life than traditional systems
- Simple flow control
- Instantaneous response
- No explosion hazard

Specifications
Available in six standard diameters ranging from 1" to 3". Requires a clean, dry source of compressed air. Includes an auto drain filter with a 5-micron filter.

Air Consumption & Vacuum
The document provides detailed specifications on air consumption and vacuum levels for different diameters and materials.

Installation and Use
Air Conveyors should be installed within 3-5 feet of the suction point for optimal performance. They can convey powder-like substances, but a separator or filter is recommended to manage dust.

Product Options
The document lists various models and kits available in aluminum and stainless steel, including unit-only, standard, and deluxe kits.

Conclusion
Streamtek's Air Conveyors offer a reliable and efficient solution for conveying bulk materials across various industries, with the added benefits of low maintenance and cost-effectiveness.
See more

Catalog excerpts

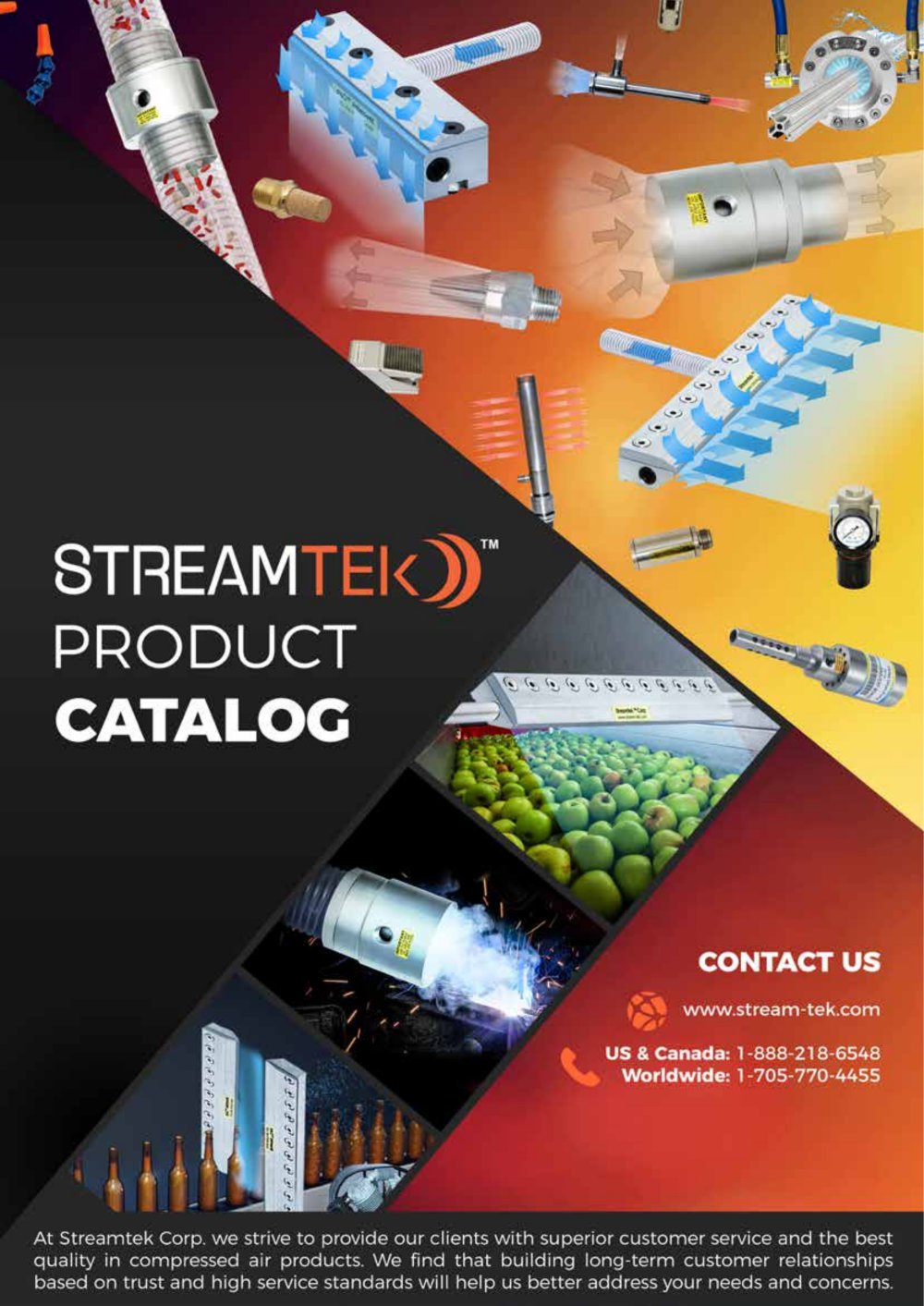

Air Conveyor-1

streamtei<3>™ PRODUCT CATALOG At Streamtek Corp. we strive to provide our clients with superior customer service and the best quality in compressed air products. We find that building long-term customer relationships based on trust and high service standards will help us better address your needs and concerns.

 Open the catalog to page 1
Air Conveyor-2

Air Conveyors Streamtek's Air Conveyor simply uses compressed air to move large volumes of items over great distances, with absolutely no moving parts. Our Air Conveyor is a fast, low-cost way to convey plastic pellets, chips, sawdust, shavings, food products, bulk solids, scrap trim, textiles, granules and so much more! What types of Air Conveyors do we carry?- The Streamtek Air Conveyer is operated by compressed air and connects to a standard pope, hose, or tube to create a powerful in-line conveyor. No need for expensive and maintenance needy conveying systems. The material flow rate is easily...

 Open the catalog to page 2
Air Conveyor-3

Streamtek Corp., manufactures a wide variety of industrial products designed for blow-off, cooling, cleaning, conveying, and industrial housekeeping. Automotive Convey everything from screws, bolts, nuts, ball bearings, to metal and plastic parts for machinery. Bottling Loading/unloading caps with bottle filling lines. Food Move everything from bulk candy, caps, lids, dried food, to fill or empty packaging material. Manufacturing Get rid of those expensive, high-maintenance blower systems and convey all kinds of items from metal and plastic parts to material used for shipping. Paper/Plastic Trim...

 Open the catalog to page 3
Air Conveyor-4

Aluminum Stainless Steel (Type 303) High Temperature Stainless (Type 316) Corrosion Rating Good Very Good Excellent Air Conveyor Dimensions Installs IN-LINE! Converts ordinary Tube/Hose into a powerful conveying system for trim, parts or scrap. Control flow by utilizing a standard pressure regulator will control the flow! Lowest price in the industry! Find a competitors equivalent Air Conveyor for less? Contact our factory and we will beat it by 20%; it's our standard policy. Can powder be conveyed with the Air Conveyor? Yes, the Streamtek Air Conveyor will convey all powder like substances. However,...

 Open the catalog to page 4
Air Conveyor-5

Air Conveyor Threaded Air Conveyor Description Aluminum: Standard Kit Aluminum: Unit Only Air Conveyors Stainless Steel: Unit Only Stainless Steel: Standard Kit Diameter Stainless Steel: Deluxe Kit We believe our compressed air-operated products are the best on the block! But don’t just hear it from us. On our website you can find many satisfied customers who

 Open the catalog to page 5
Air Conveyor-6

Aluminum: Unit Only Stainless Steel: Standard Kit Stainless Steel: Unit Only Stainless Steel: Deluxe Kit

 Open the catalog to page 6
Air Conveyor-7

We have over 15 years of experience in compressed air-o All our products are manufactured in-house. We pride ou costs low and eliminating the middle man in order to pass the our customers. We offer outstanding product quality. ex< service, and safe/secure business transactions. We are o. Friday from 900a m to 5 00pm Eastern Standard Time Our vision is to incorporate quality and effectiveness into our everyday production. We strongly stand behind our products from the moment they are produced to the moment they are taken out of use. All of our products come with an unmatched 6 year warranty against failure....

 Open the catalog to page 7
