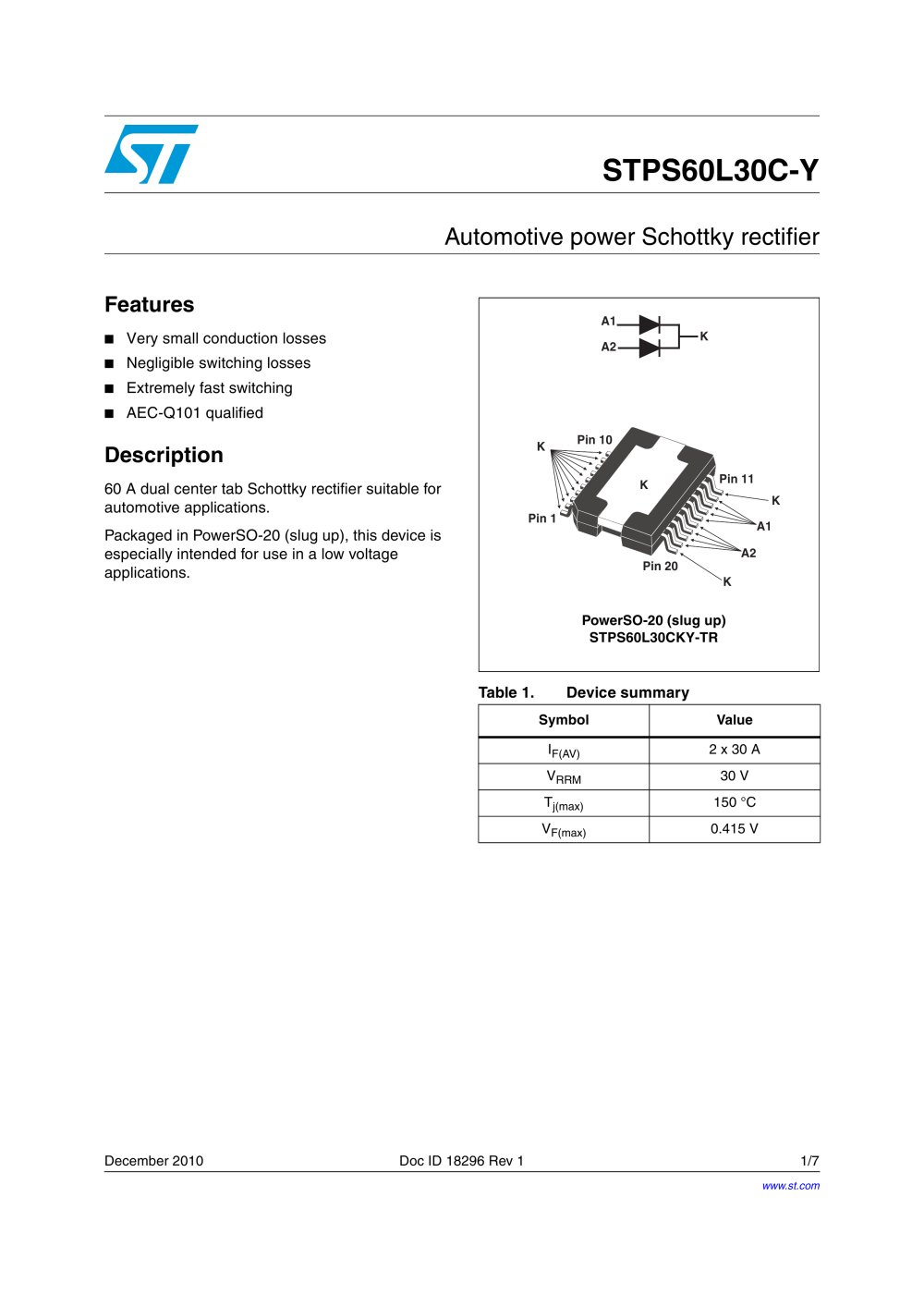

December 2010 Doc ID 18296 Rev 1 1/7 7 STPS60L30C-Y Automotive power Schottky rectifier Features ¡ Very small conduction losses ¡ Negligible switching losses ¡ Extremely fast switching ¡ AEC-Q101 qualified Description 60 A dual center tab Schottky rectifier suitable for automotive applications. Packaged in PowerSO-20 (slug up), this device is especially intended for use in a low voltage applications. Table 1. Device summary Symbol Value IF(AV) 2 x 30 A VRRM 30 V Tj(max) 150 °C VF(max) 0.415 V A1 A2 K K A2 A1 K Pin 1 Pin 10 Pin 11 Pin 20 K K PowerSO-20 (slug up) STPS60L30CKY-TR www.st.com

Open the catalog to page 1

STPS60L30C-Y Automotive power Schottky rectifier - 2

Characteristics STPS60L30C-Y 2/7 Doc ID 18296 Rev 1 1 Characteristics When diodes 1 and 2 are used simultaneously: ÄTj(diode 1) = P(diode1) x Rth(j-c)(Per diode) + P(diode 2) x Rth(c) Table 2. Absolute rating (limiting value, per diode) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage 30 V IF(RMS) (1) 1. All anode pins (A1, A2) must be connected Forward rms current 45 A IF(AV) (1) Average forward current Tc = 130 °C, ä = 0.5 Square pulse Per diode Per device 30 60 A IFSM (1) Surge non repetitive forward current tp = 10 ms Sinusoidal 250 A Tstg Storage temperature range -65...

Open the catalog to page 2

STPS60L30C-Y Automotive power Schottky rectifier - 3

STPS60L30C-Y Characteristics Doc ID 18296 Rev 1 3/7 Figure 1. Average forward power dissipation versus average forward current Figure 2. Average forward current versus ambient temperature per diode (ä = 0.5) 0 2 4 6 8 10 12 14 16 18 20 22 24 0 5 10 15 20 25 30 35 40 45 P (W) F(AV) I (A) F(AV) ä = 0.05 ä = 0.1 ä = 0.2 ä = 0.5 ä = 1 (per diode, all anode pins connected) 0 5 10 15 20 25 30 35 0 25 50 75 100 125 150 Rth(j-a)=Rth(j-c) Rth(j-a)=10°C/W I (A) F(AV) T (°C) amb T ä = tp / T tp (per diode, all anode pins connected) Figure 3. Non repetetive surge peak forward current versus overload...

Open the catalog to page 3

STPS60L30C-Y Automotive power Schottky rectifier - 4

Characteristics STPS60L30C-Y 4/7 Doc ID 18296 Rev 1 Figure 7. Forward voltage drop versus forward current 0 10 20 30 40 50 60 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60 I (A) FM V (V) FM (Typical values) Tj = 125 °C (Maximum values) Tj = 125 °C (Maximum values) Tj = 25 °C (per diode, all anode pins connected)

Open the catalog to page 4

STPS60L30C-Y Automotive power Schottky rectifier - 6

Ordering information STPS60L30C-Y 6/7 Doc ID 18296 Rev 1 3 Ordering information 4 Revision history Table 6. Ordering information Order code Marking Package Weight Base qty Delivery mode STPS60L30CKY-TR PS60L30CY PowerSO-20 1.93 g 600 Tape and reel Table 7. Document revision history Date Revision Changes 02-Dec-2010 1 First issue.

Open the catalog to page 6

STPS60L30C-Y Automotive power Schottky rectifier - 7

STPS60L30C-Y Doc ID 18296 Rev 1 7/7 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever...
