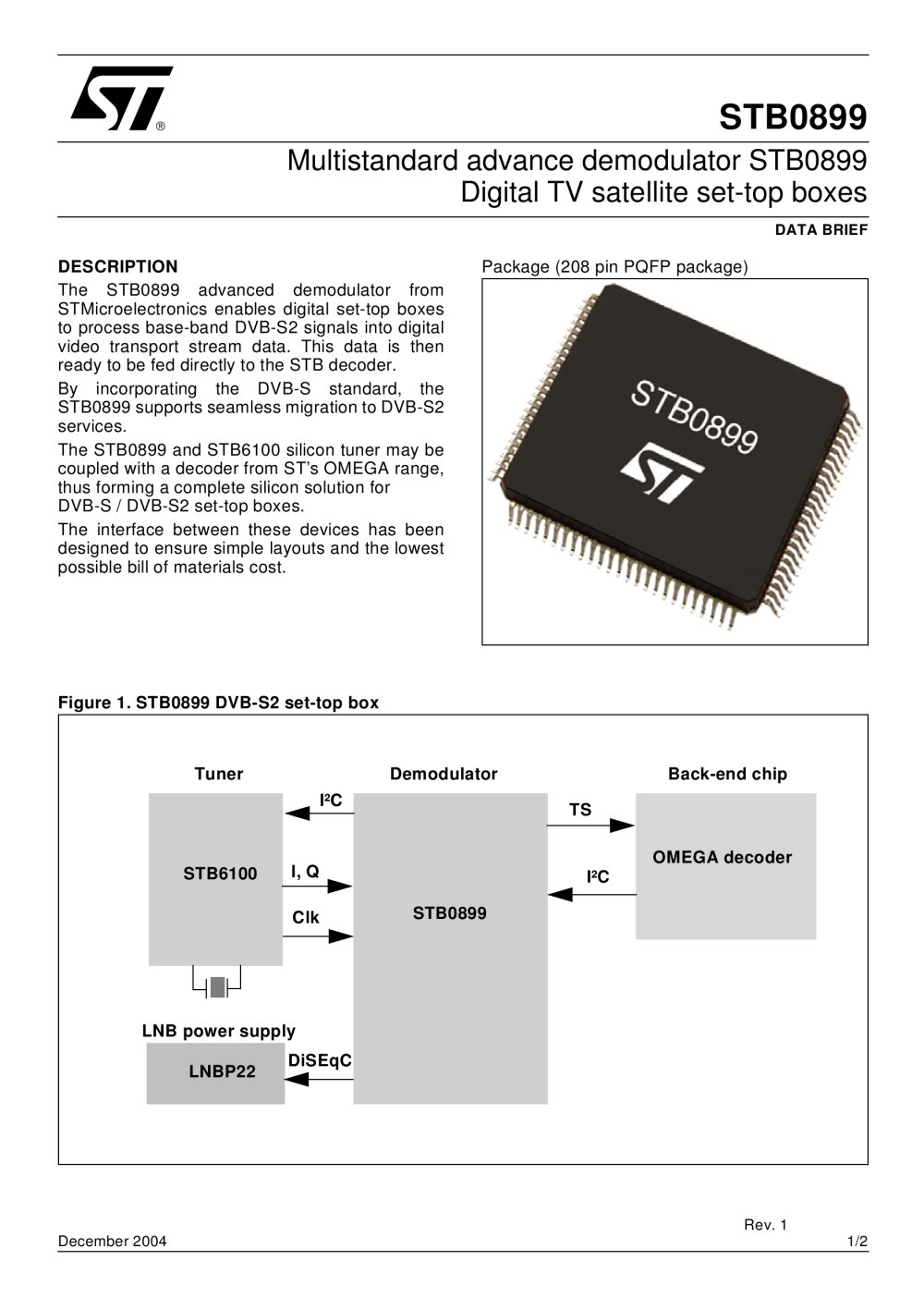

December 2004 DESCRIPTION The STB0899 advanced demodulator from STMicroelectronics enables digital set-top boxes to process base-band DVB-S2 signals into digital video transport stream data. This data is then ready to be fed directly to the STB decoder. By incorporating the DVB-S standard, the STB0899 supports seamless migration to DVB-S2 services. The STB0899 and STB6100 silicon tuner may be coupled with a decoder from ST’s OMEGA range, thus forming a complete silicon solution for DVB-S / DVB-S2 set-top boxes. The interface between these devices has been designed to ensure simple layouts and the lowest possible bill of materials cost. Package (208 pin PQFP package) Figure 1. STB0899 DVB-S2 set-top box xxxx STB0899 STB6100 OMEGA decoder LNBP22 LNB power supply Tuner Demodulator Back-end I²C I, Q Clk DiSEqC I²C TS

Open the catalog to page 1

STB0899 Multistandard advance demodulator STB0899 digital TV satellite STB - 2

2/2 – DVB-S2 framing ¡ Legacy support for DVB-S and DIRECTV® QPSK modes ¡ Digital carrier and timing recovery loops – 12-bit parallel and 7-bit serial ¡ DiSEqC 2.0 22 kHz to 100 kHz ¡ TQPFP 100 exposed pad package PART NUMBERING Table 1. Order codes REVISION HISTORY Table 2. Revision history Part Number Description STB0899 DVB-S2 demodulator EVALDVBS2 Evaluation board Date Revision Description of changes December-2004 1 First issue Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility of use of such information nor for any...
