RX 60-16

Product catalog summary

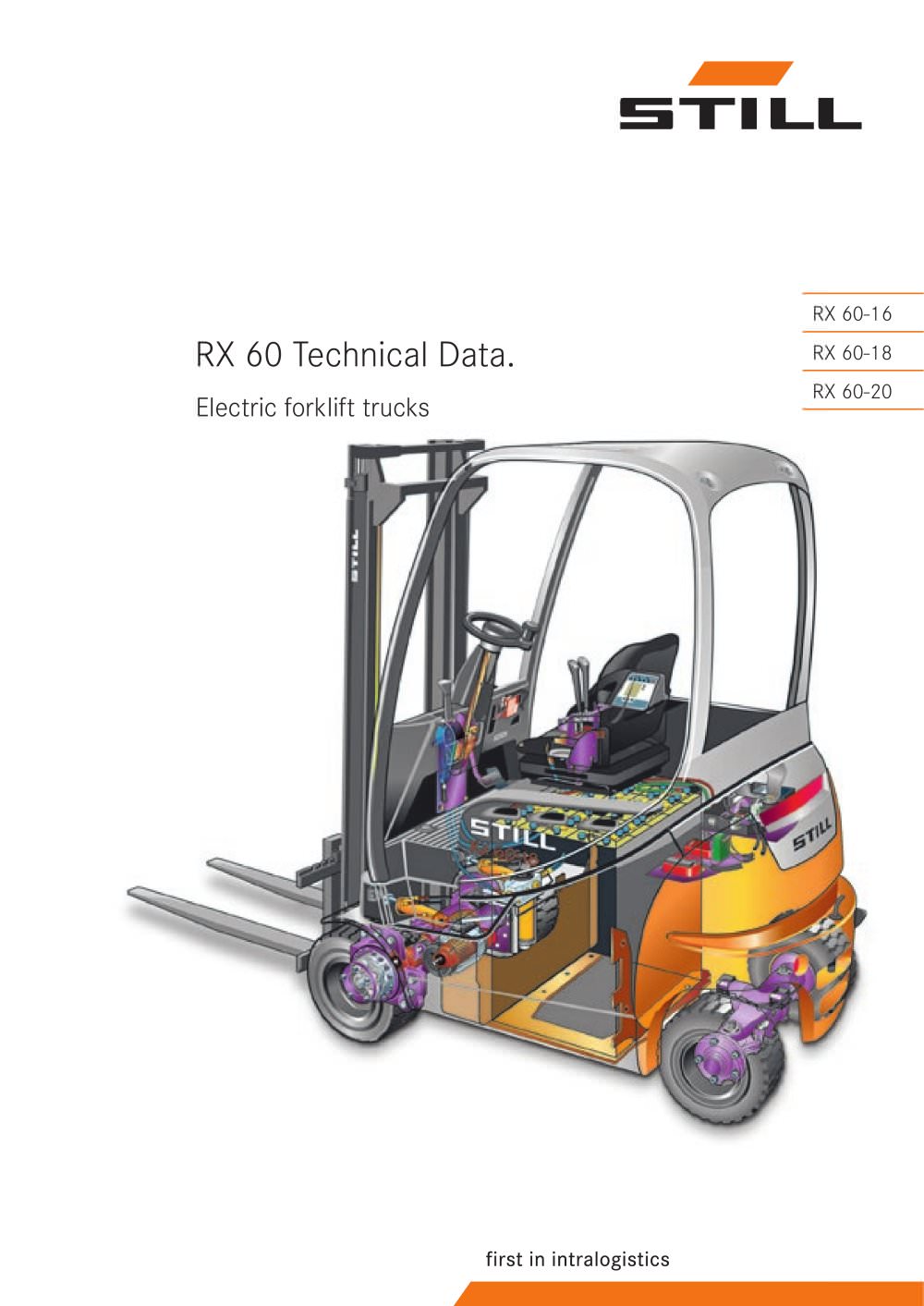

Overview: The document provides technical specifications for the STILL RX 60 series electric forklift trucks, specifically models RX 60-16, RX 60-18, and RX 60-20. It outlines the characteristics, weights, dimensions, performance data, and additional features of these forklifts.

Specifications:

Manufacturer: STILL
Power Supply: Electric
Control Type: Rider seated
Carrying Capacity: RX 60-16: 1600 kg, RX 60-18: 1800 kg, RX 60-20: 2000 kg
Load Centre: 500 mm

Weights:

Total Weight: RX 60-16 & RX 60-18: 3479 kg, RX 60-20: 3517 kg
Axle Loadings: Vary between models when laden and unladen.

Dimensions:

Overall Length: RX 60-16 & RX 60-18: 2908 mm, RX 60-20: 2918 mm
Overall Width: RX 60-16: 1099 mm, RX 60-18 & RX 60-20: 1138 mm
Lift Height: Varies with mast type and model.

Performance Data:

Speed: 20 km/h (laden and unladen)
Lift Speed: Varies between models and load conditions.
Gradeability: Varies between models and load conditions.

Drive and Electrical System:

Features energy-efficient, noise-optimized three-phase drive units.
Includes electrical regenerative braking to extend battery life.
Utilizes a digital electrical system with CAN bus for reliability.

Mast Options:

Telescopic, HiLo, and Triplex masts available for different applications.

Hydraulic System:

Demand-controlled pump motor for efficient energy use.
Features load retention valves for improved energy consumption.

Driver's Compartment:

Ergonomic design with adjustable steering and foot pedal options.
Includes a heated display for operational information.

Safety and Service:

Features automatic hold-on-ramp and mechanical brakes for safety.
Maintenance interval is 1000 hours or 12 months, with easy diagnostics and part accessibility.

Contact Information: STILL GmbH, Berzeliusstraße 10, D-22113 Hamburg, Telephone: +49 (0)40/73 39-2000, Email: [email protected]
