STILL
R07 / R08

R07 / R08

Product catalog summary

Overview: This document provides technical specifications and operational guidelines for the STILL R 07-25 Electric Tow Tractor and R 08-20 Electric Platform Truck. It includes details on dimensions, performance, and equipment options.

Specifications:

Power Supply: Both models are electric with a rider-seated control type.
Carrying Capacity: R 07-25 has a load capacity of 300 kg and a trailer load capacity of 25,000 kg. R 08-20 has a load capacity of 2000 kg.
Towing Capacity: R 07-25 can tow up to 5000 N, while R 08-20 can tow up to 900 N.
Dimensions: Both models have similar dimensions with slight variations in wheelbase and platform length.
Performance: Maximum speed varies between laden and unladen conditions, with R 07-25 reaching up to 25 km/h unladen.

Operational Guidelines:

Braked trailers are recommended for loads exceeding 9 tonnes or when gradients are involved.
Performance charts indicate permissible haul per hour and speed based on gradient and load conditions.

Key Features:

Drive System: Features an 80-volt three-phase drive motor with regenerative braking.
Battery: Standard batteries with options for side removal on R 08-20.
Brakes: Three independent braking systems including hydraulic disc brakes and a mechanical handbrake.
Steering: Servo-steering for ease of maneuverability.
Frame: Robust steel structure designed for high resistance to distortion and corrosion.
Lighting: Standard Road Traffic Act lighting with optional rear lights.
Driver's Compartment: Adjustable seat and steering column with excellent visibility and ergonomic design.

Equipment Options:

Standard equipment includes a sprung driver's seat, pneumatic tires, and automatic coupling.
Auxiliary equipment options include additional tow couplings, cloth-covered seats, and SE tires.

Contact Information: For further details, contact STILL GmbH at Berzeliusstraße 10, D-22113 Hamburg, or visit their website.

Catalog excerpts

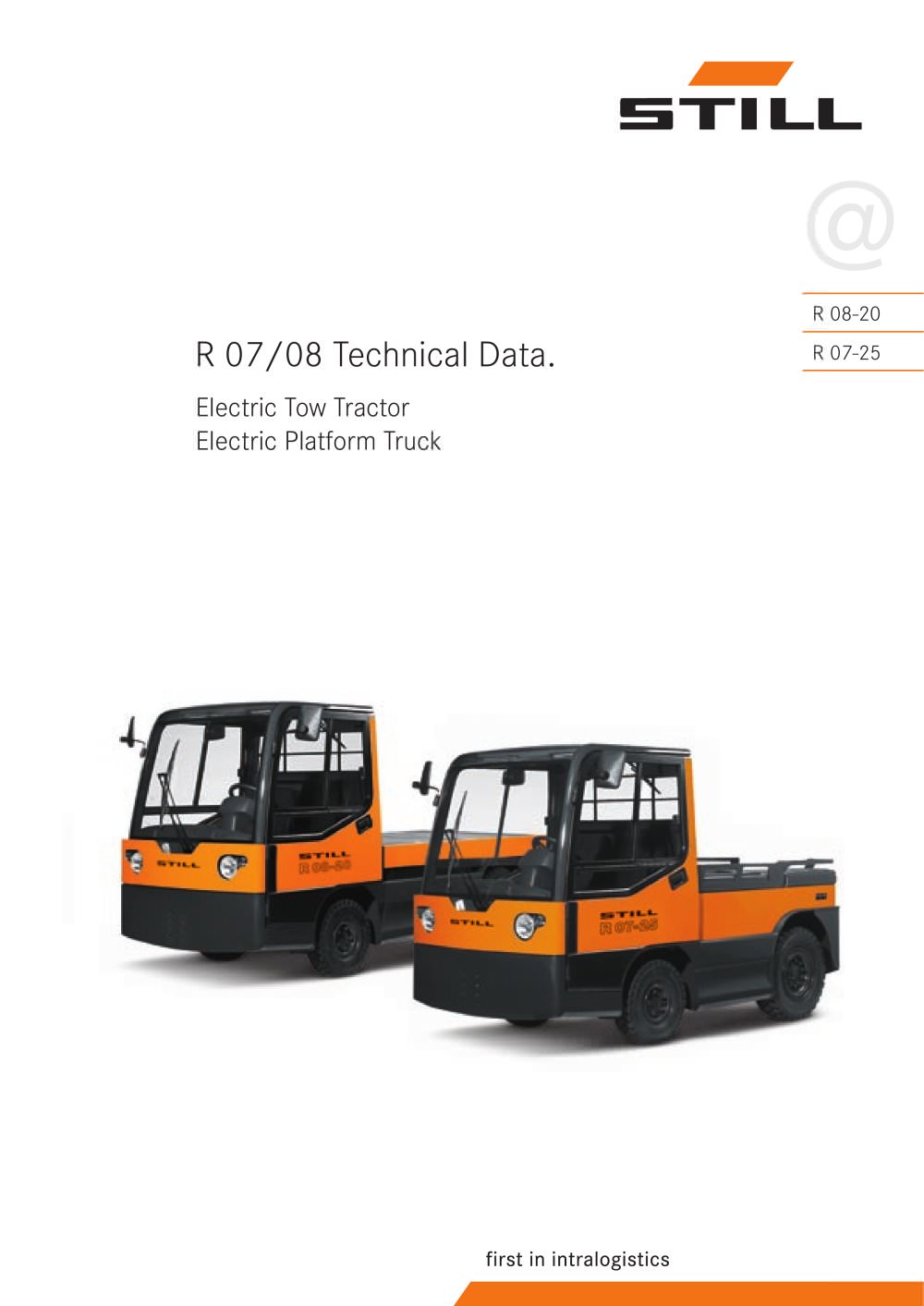

R 08-20 R 07-25 R 07/08 Technical Data. Electric Tow Tractor Electric Platform Truck @

Open the catalog to page 1

2 R 07-25 ELECTRIC TOW TRACTOR. R 08-20 ELECTRIC PLATFORM TRUCK. In accordance with VDI guidelines 2198, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Dimensional sketch and operating data When hauling loaded trailers that are coupled to platform or towing trucks under the most arduous of operating conditions (e.g. sloping surfaces, smooth or slippery roadways, etc.) the determining factor for trailing load assessment will not be the tractive effort developed by the towing truck, nor the carrying...

Open the catalog to page 2

Electric Platform Truck R 08-20 The models depicted in this brochure may contain special parts or attachments which are not supplied as standard. Electric Tow Tractor R 07-25

Open the catalog to page 3

4 The Speed/Draw Bar Pull performance of the tractor can be programmed between the two limits shown to suit the application. The permissible haul per hour is the total distance travelled, including the return journey and any downhill gradients. It is recommended that braked trailers are used for trailer loads exceeding 9 tonnes and for all trailer loads if gradients are involved. Performance Chart R 07-25 Gradient Truck empty drawbar pull (N) Trailer weight Permissible haul per hour (m) Speed (km/hr) Speed Permissible haul per hour The permissible haul per hour is the total distance travelled,...

Open the catalog to page 4

5 Drive. - The encapsulated 80 volt three-phase drive motor from STILL gives long life and freedom from maintenance, with optimal energy utilisation. - During braking the drive motor acts as a generator and feeds electrical energy back into the battery. This allows a longer period of work before the battery needs recharging. - Due to the regulated drive control, the travel speed will remain constant for the same pedal position regardless of upward or downward gradients. Battery and battery changing. The chassis can take standard batteries. Battery changing is by means of a hoist. On the R 08-20...

Open the catalog to page 5

R 07/08 0.7 HHe 07/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 [email protected] For further information please visit: www.still.de/R07 Your contact @

Open the catalog to page 6
