Product catalog summary

Specifications:
The R 06-06 is an electric tow tractor manufactured by STILL, designed for seated rider control. It has a carrying capacity of 150 kg and a trailer load capacity of 6000 kg. The towing capacity is 1200 N, with a wheelbase of 1040 mm. The tractor weighs between 1020 and 1070 kg, with specific axle loadings for both laden and unladen conditions. It features rubber or pneumatic tyres, with a front tyre size of 4.00-8/6 PR and a rear tyre size of 4.00-8/6 PR. The overall dimensions include a height of 1960 mm, a width of 996 mm, and a length of 1730 mm.

Performance:
The R 06-06 can reach speeds of 7 km/h when laden and 17 km/h when unladen. It has a rated drawbar pull of 1200 N and a maximum unladen drawbar pull of 4500 N. The drive motor has an hourly capacity of 3.2 kW, with battery options of 24V or 48V and capacities ranging from 330 Ah to 550 Ah.

Braking and Steering:
The tractor is equipped with three independent braking systems: electrical braking with energy recovery, hydraulic drum brakes, and a mechanical hand brake. The electrical braking system reduces brake lining wear and enhances safety on gradients. The steering is designed to be extremely light, enhancing maneuverability and reducing driver fatigue.

Frame and Design:
The frame is self-supporting, providing stability and strength. It is constructed with a combination of polyethylene mouldings and steel beams, ensuring durability and resistance to corrosion and impact. The battery is mounted low for stability, contributing to a low center of gravity.

Safety and Equipment:
The R 06-06 complies with EU safety regulations and includes safety features such as an emergency off switch and a safety switch in the driver’s seat. Standard equipment includes a microprocessor control system, pneumatic tyres, and a comprehensive display panel. Optional equipment includes a speed limiter, various cab options, and additional safety features.

Service and Maintenance:
The tractor features a powerful diagnostics package for quick fault tracing, reducing downtime and servicing costs. Important driving parameters can be adjusted via the digital controller, enhancing operational efficiency.

Catalog excerpts

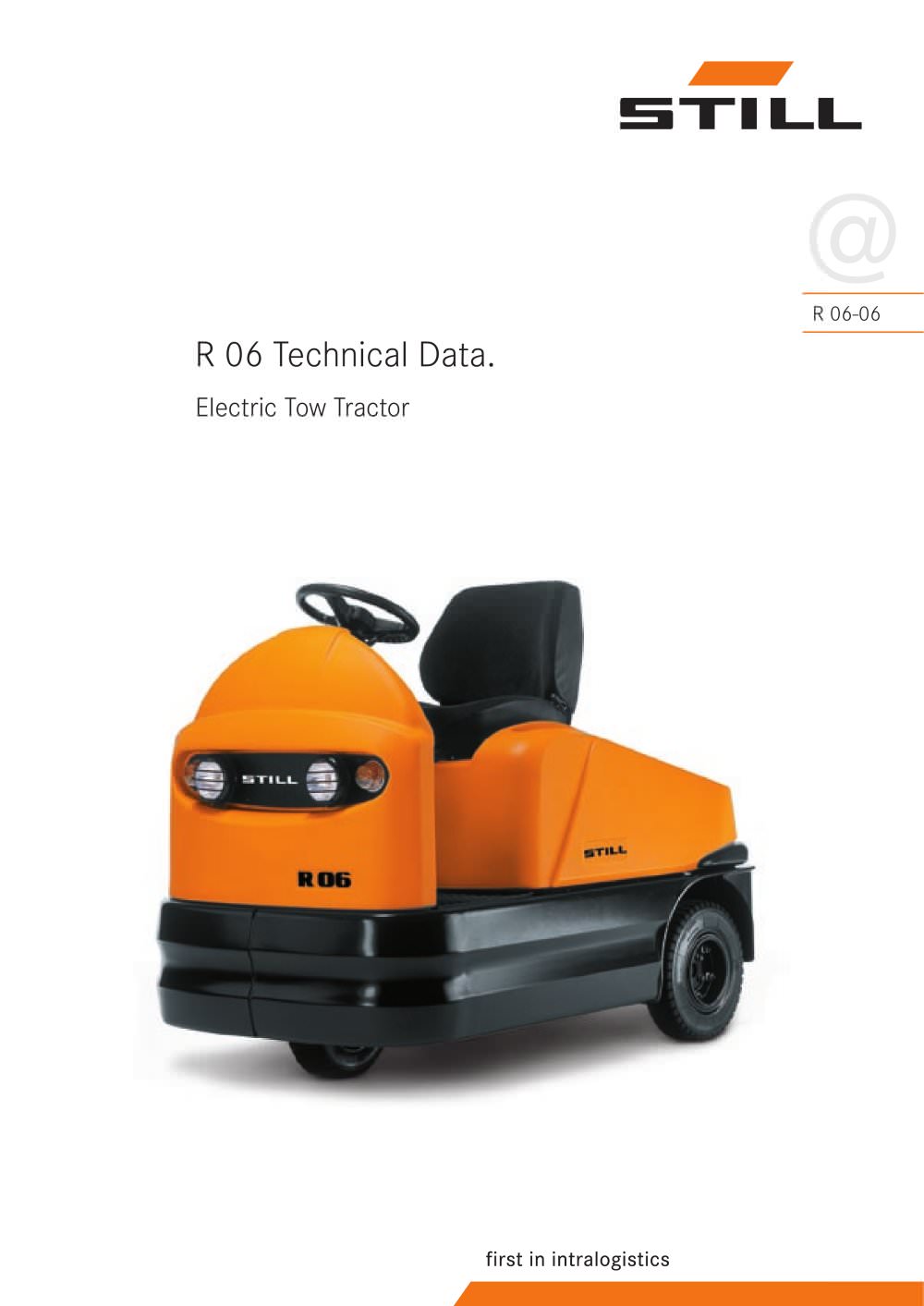

R 06-06 R 06 Technical Data. Electric Tow Tractor @

Open the catalog to page 1

2 Front and rear view shown without cab. R 06 TECHNICAL DATA. In accordance with VDI guidelines 2198, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Characteristics 1.1 Manufacturer STILL 1.2 Manufacturer’s model designation R 06-06 1.3 Power supply electric 1.4 Type of control rider seated 1.5 Carrying capacity/load Q kg 150 1.5.1 Trailer load Q kg 6000 1 1.7 Towing capacity F N 1200 1.9 Wheelbase y mm 1040 Weight 2.1 Weight kg 1020 1070 2.2 Axle loadings laden front kg - 2.2.1 Axle loadings laden...

Open the catalog to page 2

4 Load/gradient combinations shown by full line can be restarted from stationary on the gradient. The permissible haul per hour is the total distance travelled, including the return journey and any downhill gradients. It is recommended that braked trailers are used for trailer loads exceeding 2.5 tonnes and for all trailer loads if gradients are involved. Travel speed (km/h) Permissible travel distance per hour (m) Gradient Trailer load Performance chart R 06-06. Battery charging and changing. The battery cover can be hinged back in two stages: - half open to allow access to the battery, - fully...

Open the catalog to page 4

5 Driver’s compartment. The R 06-06 provides a comfortable, ergonomically designed workplace and offers the following features: - Low entry step. - Automotive style hand brake mounted to the right of the driver’s seat. - Roomy footwell fitted with non-slip rubber matting. - Bottle holder and spacious storage compartment. - Driver’s seat fitted with a pocket to hold documentation. Display panel with: - Combined warning light for handbrake/low brake fluid. - Warning light for operating fault. - Brush wear indicator. - Motor temperature warning. - Battery discharge indicator. - Work hour meter....

Open the catalog to page 5

R 06 0.8 HHe 06/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 [email protected] For further information please visit: www.still.de/R06 Your contact @

Open the catalog to page 6
