R 70-40
1 / 6 PagesView full catalog
R 70-40
Product catalog summary

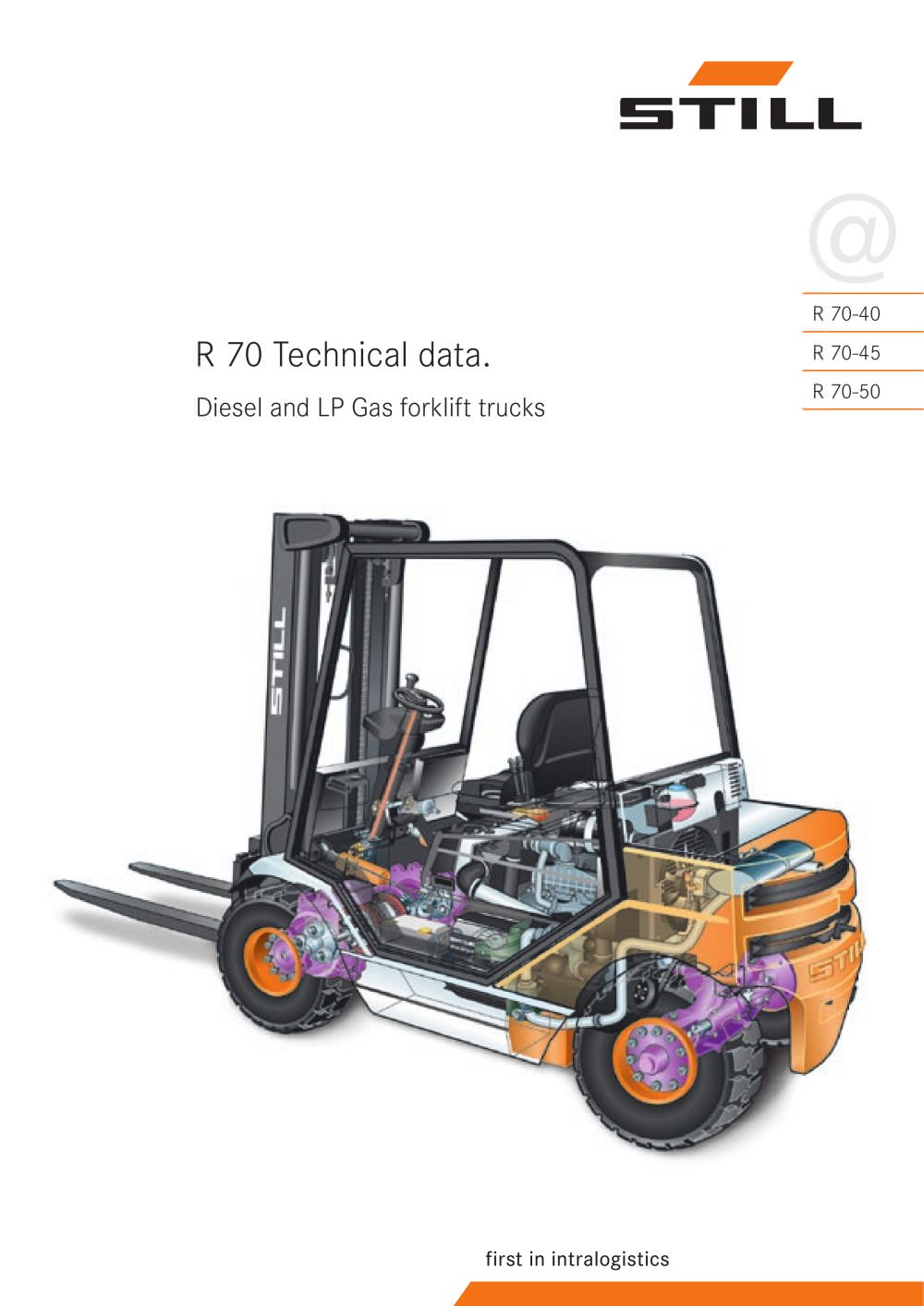

Overview: This document provides comprehensive technical specifications for the STILL R 70 series of diesel and LPG forklift trucks, specifically models R 70-40, R 70-45, and R 70-50. It includes details on characteristics, weights, dimensions, performance data, engine specifications, and additional features.
Specifications:
- Manufacturer: STILL
- Models: R 70-40, R 70-45, R 70-50 (Diesel and LPG variants)
- Capacity: 4000 kg to 4999 kg
- Load Centre: 500 mm
- Wheelbase: 2005 mm
Weights:
- Truck Weight: 5800 kg to 6395 kg
- Axle Load (Laden): Front: 8627 kg to 10290 kg, Rear: 1105 kg to 1173 kg
Dimensions:
- Overall Length: 4027 mm to 4130 mm
- Overall Width: 1380 mm to 1506 mm
- Fork Length: 1000 mm to 1200 mm
Performance Data:
- Travel Speed: 21 km/h (laden and unladen)
- Hoist Speed: 0.43 m/s to 0.51 m/s (laden)
- Gradeability: 20% to 24% (laden)
Engine Specifications:
- Manufacturer: VW
- Engine Rating: 55 kW to 56 kW
- Fuel Consumption: 3.3 l/h to 4.4 kg/h
Additional Features:
- Drive Control: Stilltronic
- Safety: Low center of gravity, articulating steer axle
- Environment: Low fuel consumption, meets emission guidelines
- Service: 1000-hour maintenance interval, computerized diagnostics
Optional Equipment:
- Superelastic or pneumatic tyres
- Modular cab construction
- Comfort seat variants
- Camera systems for mast and reversing
