HPS / HPT - 1

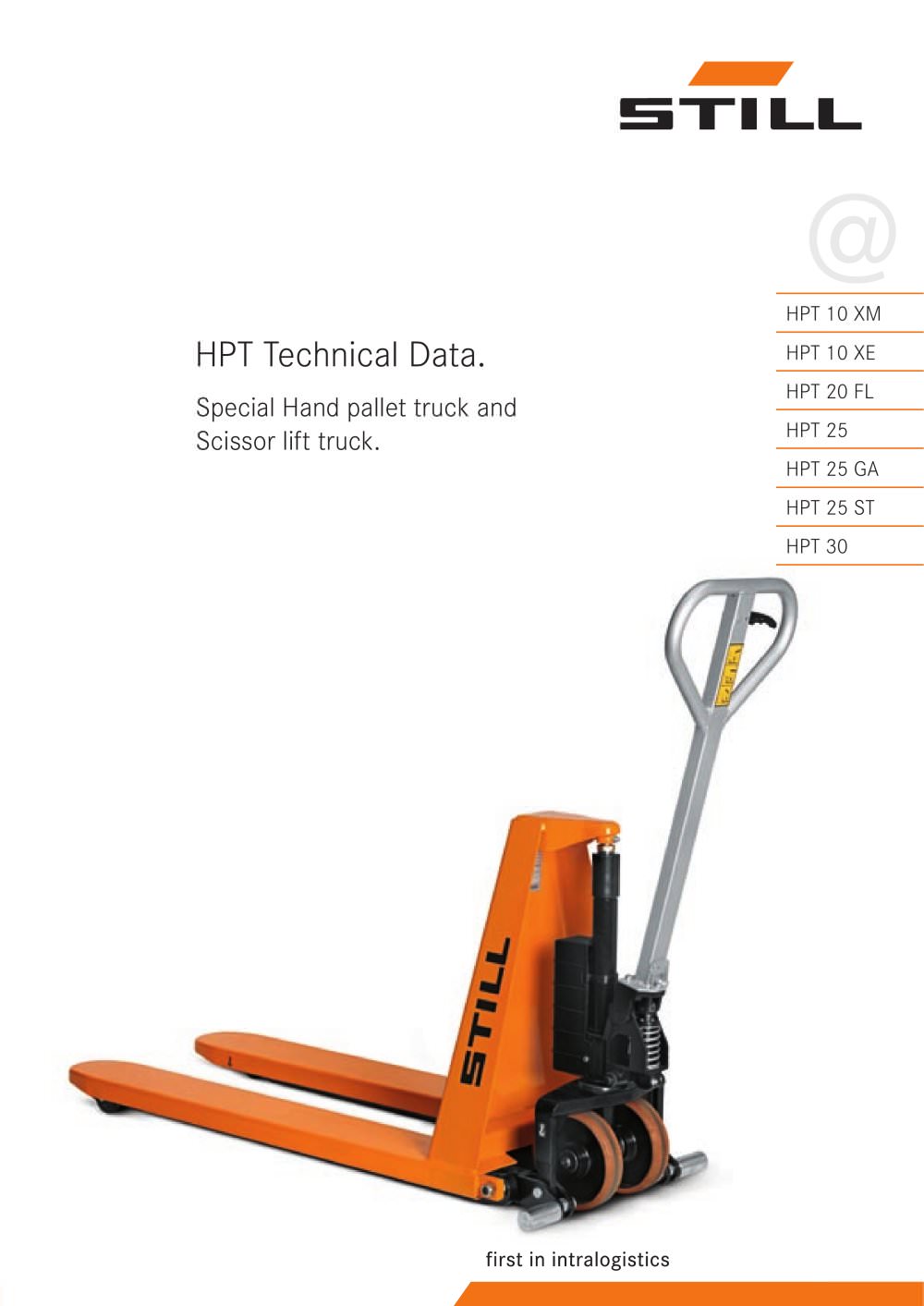

HPT 10 XM HPT 10 XE HPT 20 FL HPT 25 HPT 25 GA HPT 25 ST HPT 30 HPT Technical Data. Special Hand pallet truck and Scissor lift truck. @

Open the catalog to page 1
HPS / HPT - 2

2 1450 1250 750 c Q l 1140 245 400 h13 100 1200 100 L1 Ast 376 120° 120° Wa e e b1 1450 1300 750 c Q l 1140 245 400 h13 h3 h3 100 90° Wa L1 Ast 540 100 e e b1 1200 HPT TECHNICAL DATA. Technical Data and equipment HPT 25 HPT 25 ST HPT 25 GA HPT 30 HPT 20 FL HPT 10 XM HPT 10 XE Q Capacity Kg 2500 2500 2500 3000 2000 1000 1000 Truck weight Kg 63 69 63 67 71 104 141 l Standard fork length mm 1150 1150 1150 1150 1150 1150 1150 c Load centre mm 575 575 575 575 575 575 575 L Overall length mm 1550 1550 1550 1550 1550 1526 1685 Ø Steer wheels mm 200 x 50 200 x 50 200 x 50 200 x 50 200 x 50 200 x 50...

Open the catalog to page 2
HPS / HPT - 3

3 HPT 25/HPT 30 – Hand pallet truck. Capacity 2.500 kg/3.000 kg. The HPT 25 and HPT 30 hand pallet trucks stand out from the crowd thanks to their high quality build and user friendly design. These versatile all-rounders are available in 2.5 and 3.0 tonne capacities respectively, with various fork lengths and widths. Further individual equipment options round off the range. Tiller. - Ergonomic grip for fatigue free operation. - A maximum steering lock of 205° gives excellent manoeuvrability, even in the tightest of spaces – such as loading and unloading lorries. Frame. - Warp resistant...

Open the catalog to page 3
HPS / HPT - 4

HPT 0.5 HHe 09/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 info@still.de For further information please visit: www.still.de/HPT Your contact @

Open the catalog to page 4
