FU-X / FS-X / EFU
8Pages

{{requestButtons}}

Catalog excerpts

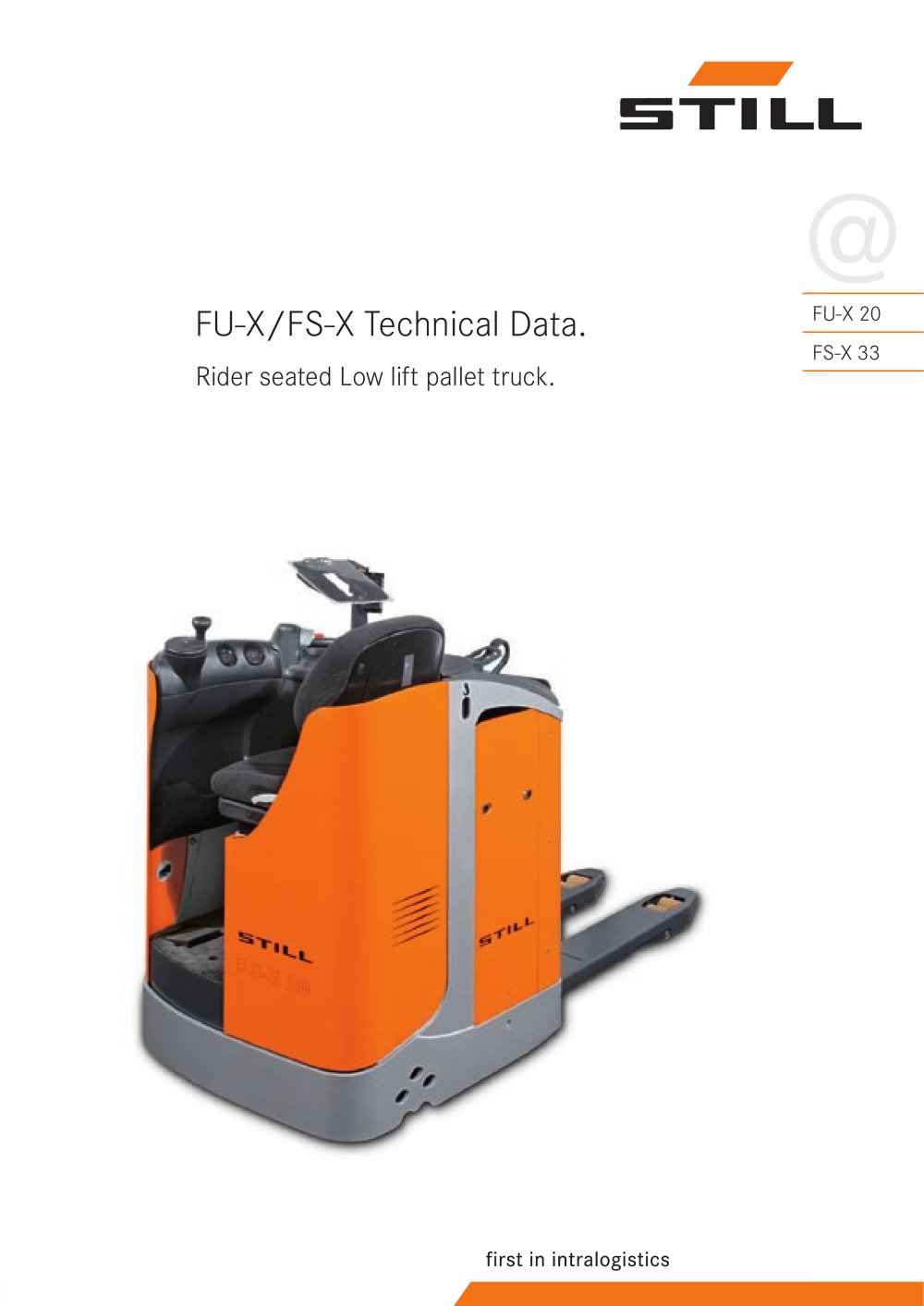

FU-X / FS-X / EFU - 1

FU-X 20 FS-X 33 FU-X/FS-X Technical Data. Rider seated Low lift pallet truck. @

Open the catalog to page 1
FU-X / FS-X / EFU - 2

2 This specification sheet to VDI Guidelines 2198 gives the technical figures for the standard truck. Different tyres, other masts, additional equipment etc. could give different figures. Characteristics 1.1 Manufacturer STILL 1.2 Manufacturer’s model designation FU-X 20 1.3 Drive (electric, diesel, petrol, gas, mains electric) Electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) Rider seated with steering wheel 1.5 Capacity/load Q t 2 1.6 Load centre c mm see table 1.8 Load distance (lowered/raised) x mm see table 1.9 Wheelbase, raised y mm see table...

Open the catalog to page 2
FU-X / FS-X / EFU - 3

3 The STILL Electric rider seated fork lift truck FU-X 20. Designed for high turnaround and efficient horizontal transport of goods up to 2000 kg. An overall width of 880 mm and compact design create ideal conditions for the safe, fast and efficient transport of goods. Driver’s compartment. - Ergonomically laid out driver’s compartment with individually adjustable Comfort seat. - High driver comfort due to padded interior, integral storage compartments for working papers and utensils. - The non-slip footplate is damped by a gas spring and its height, which is smoothly adjustable through 120...

Open the catalog to page 3
FU-X / FS-X / EFU - 4

4 This specification sheet to VDI Guidelines 2198 gives the technical figures for the standard truck. Different tyres, other masts, additional equipment etc. could give different figures. Characteristics 1.1 Manufacturer STILL 1.2 Manufacturer’s model designation FS-X 33 1.3 Drive unit (Electric, Diesel, petrol, gas, mains electric) Electric 1.4 Controls (hand, pedestrian, stand-on, rider seated, order picker) Rider seated 1.5 Capacity/load Q kg 3300 1.6 Load centre c mm 1800 1.8 Load distance lowered/raised x mm 2634/2528 1.9 Wheelbase lowered/raised y mm 3700/3595 Weights 2.1 Truck weight...

Open the catalog to page 4
FU-X / FS-X / EFU - 5

5 Driver’s compartment. - Roomy driver’s compartment with adjustable controls and ample legroom. - Adjustable height platform, individually adjustable to suit different physiques. - Comfort driver’s seat with individual weight and horizontal settings. - Large area, open steps and hand grips on both sides make entry and exit easy. - An optional arm rest to the left of the diver’s seat provides a relaxed arm position for long runs. - Individual storage thanks to large utensil compartments and versatile storage options. - Easily visible LCD display with symbol and numeric displays of all...

Open the catalog to page 5
FU-X / FS-X / EFU - 6

6 Standard Option Equipment overview. Manufacturer STILL STILL Manufacturer’s model designation FU-X 20 FS-X 33 Rated capacity 2000 kg 3300 kg Driver’s compartment Comfort seat with hydraulic damping and weight and longitudinal adjustment Driver’s seat with heater - Driver’s seat with leatherette seat - Arm to the left of the driver’s seat - Adjustable height footplate Electric thermostatically regulated foot heater - Joystick for lifting/lowering, direction selection and horn - Multifunction control for lifting/lowering/direction selection and horn - 5 Driving profiles, selected by driver...

Open the catalog to page 6
FU-X / FS-X / EFU - 8

FU-X/FS-X 0.8 HHe 07/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 info@still.de For further information please visit: www.still.de/FU-X Your contact @
