Catalog excerpts

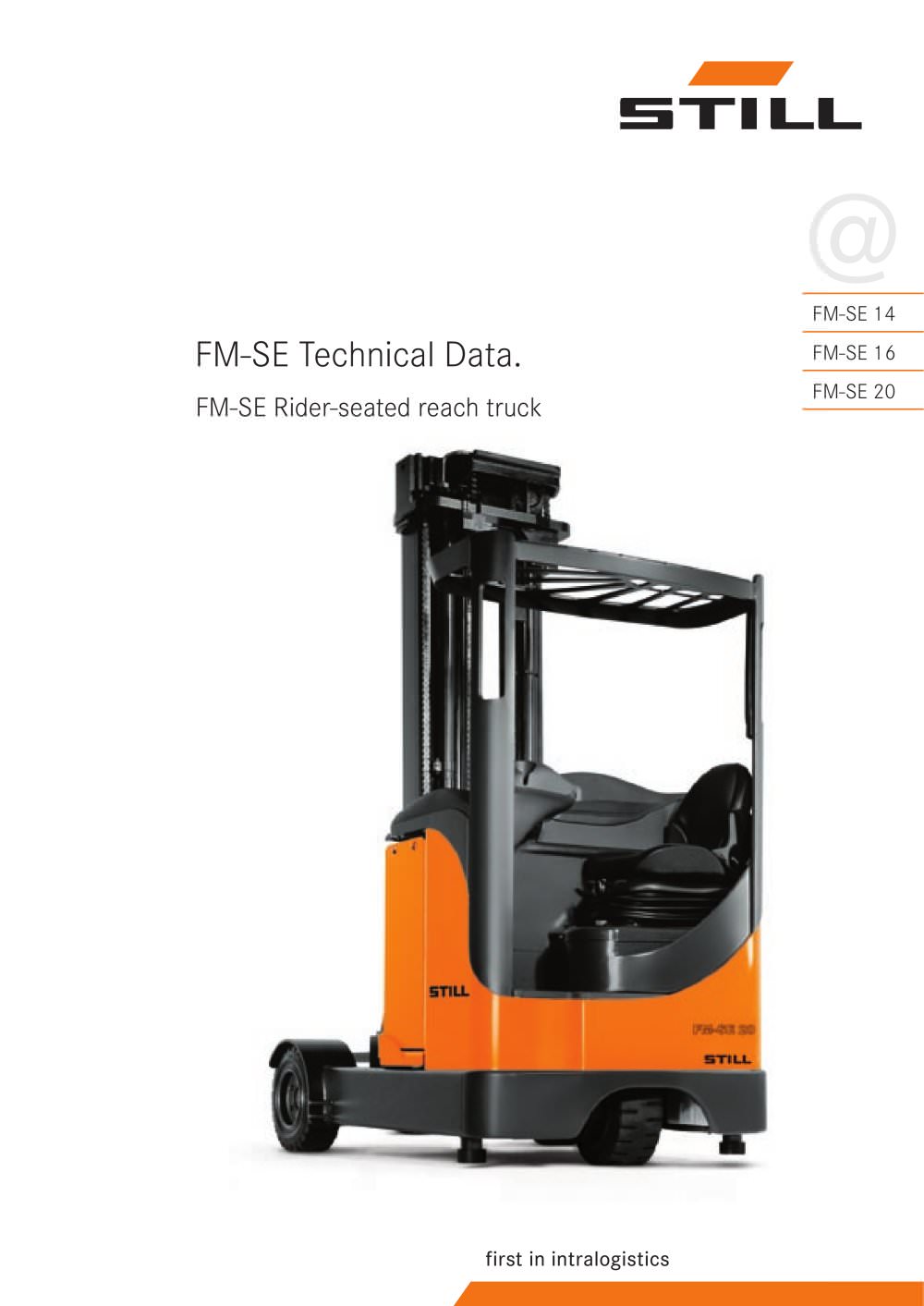

FM-SE - 1

first in intralogistics FM-SE 14 FM-SE 16 FM-SE 20 FM-SE Technical Data. FM-SE Rider-seated reach truck @

Open the catalog to page 1
FM-SE - 2

2 This specification sheet to VDI Guidelines 2198 only gives the technical figures for the standard truck. Different tyres, other masts, additional equipment etc. could give different figures. Characteristics 1.1 Manufacturer STILL STILL STILL 1.2 Manufacturer’s model designation FM-SE 14 FM-SE 16 FM-SE 20 1.3 Drive (electric, diesel, petrol, LPG) Electric Electric Electric 1.4 Operation (hand, pedestrian, stand on, rider seated) Rider seated Rider seated Rider seated 1.5 Capacity/load Q kg 1400 1600 2000 1.6 Load centre c mm 600/500 600/500 600/500 1.8 Load distance 2 x mm 326 321 471 1.9...

Open the catalog to page 2
FM-SE - 3

FM-SE 14 FM-SE 16 FM-SE 20 Rated capacity kg 1.4 1.6 2.0 Driver’s compartment Adjustable steering wheel position and longitudinal seat adjustment Adjustable height luxury seat with lumbar and weight setting Adjustable height driver’s seat with heater Driver’s compartment with synthetic leather seat Driver’s compartment with cloth seat Clearview mast with optimised view overhead guard Fingertip control (Hydraulic actuation through 4 individual control levers Integral storage facilities Display: Clear display of active operating states Steering Adjustable steering resistance Free moving, full...

Open the catalog to page 3
FM-SE - 5

5 The requirement: Greater effectiveness in narrow warehouse areas with uneven floors. The solution for an extended range of use: an SE tyred moving mast reach truck for combined indoor and outdoor use. Flexible: the application. Individual application options thanks to SE tyres and large tyre diameter. Large floor clearance and superb traction allow individual use even on uneven and slippery floors. Short construction and moving mast reach principle for optimal warehouse utilisation. Weather protection cabs provide the best possible protection and safety in outdoor use. Ergonomic: the...

Open the catalog to page 5
FM-SE - 6

first in intralogistics STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 info@still.de For further information please visit: www.still.de/FM-SE Your contact FM-SE 0.5 HHe 06/09 TD Subject to technical modifications. @

Open the catalog to page 6
