EXU-S - 1

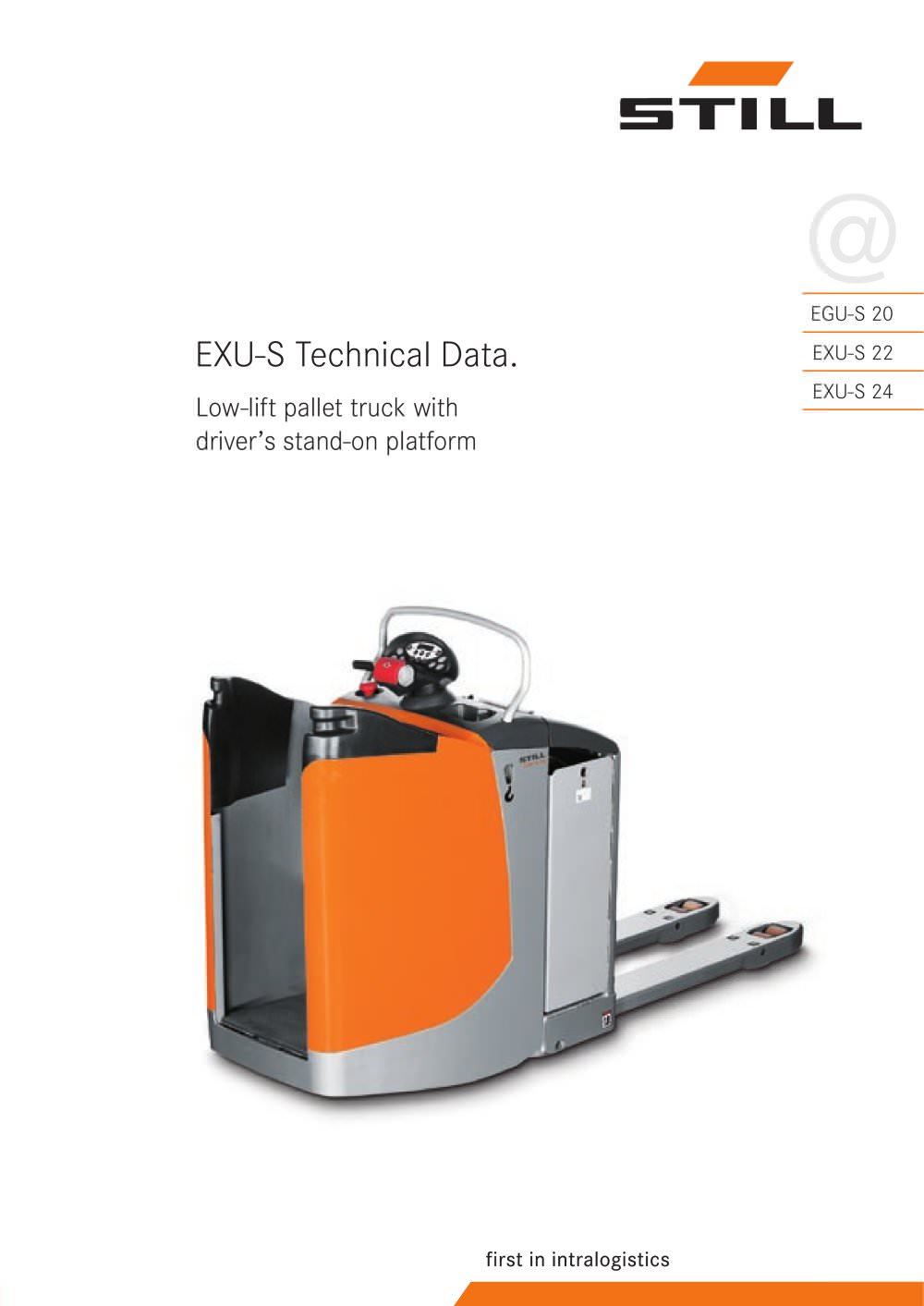

EXU-S Technical Data. Low-lift pallet truck with driver’s stand-on platform EGU-S 20 EXU-S 22 EXU-S 24 @

Open the catalog to page 1
EXU-S - 2

2 KAPITEL Low-lift pallet truck with driver’s stand-on platform. Chassis frame. - Optimised for loading and unloading vehicles, the EXU-S’s design provides excellent driving characteristics on loading ramps, dock levellers and in the tight confines of lorries, containers and trailers. - Acting as a slider, the lower edge of the frame will never catch on ramp edges, while the tapered platform sides allow reversing from vehicles without any risk of damage to the trailer side walls or loading dock seals, even when loading the final two pallet rows. - The platform is an integral part of the...

Open the catalog to page 2
EXU-S - 3

3 Hydraulic system. - A compact pump and 2.2 kW motor unit with built in oil tank, solenoid valve and maximum pressure valve operates on the lift cylinder with lift cut-out. - This powerful hydraulic system offers very short lift times, even with full load, thereby providing high productivity for loading and unloading vehicles. Brake system. - There are two independent brake systems. - “Soft” braking with energy recovery, activated by releasing or reversing the drive control. - “Emergency” braking takes place when the push-button in the COCKPIT is actuated. - Driving is only possible when...

Open the catalog to page 3
EXU-S - 4

4 KAPITEL 1 2 In accordance with VDI guidelines 2198 resp. 3597, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Characteristics 1.1 Manufacturer STILL STILL 1.2 Manufacturer‘s model designation EXU-S 22 EXU-S 22 Platform type Rear access Side access 1.3 Power supply (electric, diesel, petrol, gas, mains electric) Electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) Stand-on 1.5 Capacity/load Q kg 2200 1.6 Nominal load centre c mm 600 1.8 Load distance x mm 1023...

Open the catalog to page 4
EXU-S - 6

6 KAPITEL In accordance with VDI guidelines 2198 resp. 3597, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Charcacteristics 1.1 Manufacturer STILL 1.2 Manufacturer’s model designation EGU-S 20 with folding platform and hinged side guards 1.3 Power supply (electric, diesel, petrol, gas, mains electric) electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) stand-on/pedestrian 1.5 Capacity/load Q kg 2000 1.6 Load centre c mm 600 1.8 Load distance x mm 962 1.9...

Open the catalog to page 6
EXU-S - 7

7 A A B h14 h14 155 c Q s b1 b1' h13 h3 b10 b11 b5 e x l l2 l1 l1´ y m2 l2´ Wa Wa´ Ast´ Ast 100 100 100 Drive. - Efficient, economical and cost saving drive unit with MOSFET technology as standard. - Precise driving response thanks to the shunt wound drive motor. - Smooth and even acceleration up to maximum travel speed. - Automatic braking and energy recovery when drive switch released. - When starting on a gradient (or if the drive switch is released or put into neutral) the controller and drive respond to prevent uncontrolled rolling back. Hydraulic system. - A compact pump and motor...

Open the catalog to page 7
EXU-S - 8

EXU-S 0.5 HHe 09/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 info@still.de For further information please visit: www.still.de/EXU-S Your contact @

Open the catalog to page 8
