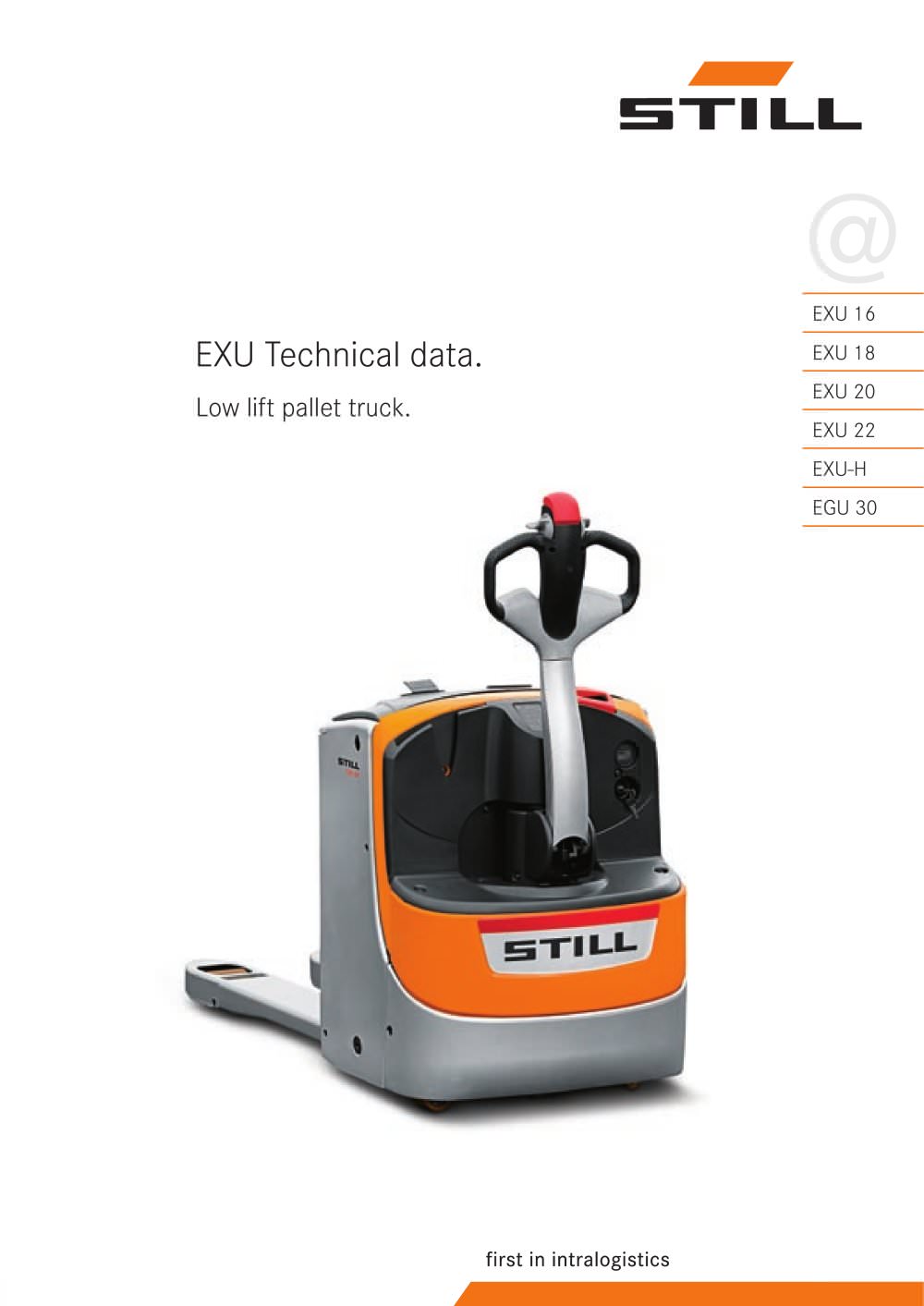

EXU 16 EXU 18 EXU 20 EXU 22 EXU-H EGU 30 EXU Technical data. Low lift pallet truck. @

2 EXU TECHNICAL DATA. Characteristics 1.1 Manufacturer STILL STILL 1.2 Manufacturer’s model designation EXU16 EXU18 1.3 Power supply (electric, diesel, petrol, gas, mains electric) Electric Electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) Pedestrian Pedestrian 1.5 Capacity/load Q kg 1600 1800 1.6 Nominal load centre c mm 600 600 1.8 Load distance Initial lift up/down x mm 962/895,5 962/895,5 1.9 Wheelbase Initial lift up/down y mm 1304/1237,5 1304/1237,5 Weight 2.1 Weight (incl. Battery) kg 430 430 2.2 Axle loadings laden drive end/load end kg 680/1350 680/1350...

4 Thanks to its versatility, reliability and efficiency, the new EXU low lift pallet truck from STILL offers customers the right solution for every application. Being easy and safe to use for the operator was a focal point in its development, as was the compact build. This allows it to be used even in the tightest spaces, for example, when loading and unloading lorries, in narrow warehouses, or in business operations. Together with a highly energy efficient 3-phase drive and the wide range of options, the EXU is thus the ideal low lift pallet truck for intralogistics tasks in industry, trade...

5 Battery. - The drive control and resulting low energy requirement allows the use of compact batteries with a lower capacity - even for longer use applications. - Three different battery trays are available to take batteries (wet, low-maintenance or maintenance free) with capacities from 24 V/150 Ah to 24 V/375 Ah, in order to optimally match the truck to the application. - The batteries are easily accessible and can be changed using a hoist. - Side battery changing is available as an option for all models with tray 2 PzS. Support rollers. - For demanding applications - such as driving on ramps...

6 Characteristics 1.1 Manufacturer STILL STILL 1.2 Manufacturer’s model designation EXU-H EGU 30 1.3 Power supply (electric, diesel, petrol, gas, mains electric) Electric Electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) Pedestrian Tiller 1.5 Carrying capacity/load Q kg 2000/800 3000 1.6 Load centre c mm 600 600 1.8 Load distance x mm 1028 872 1.9 Wheelbase y mm 1468 1347 1419 Weights 2.1 Weight (inc. battery) kg 550 354 363 2.2 Axle loading laden drive end/load end kg 972/1586 1037/2529 (1043/2531) 1065/2586 (1077/2591) 2.3 Axle loading unladen drive end/load...

7 m3h14h14b10Ast100100l12000 KgB800 KgAA c 600h3h5l3m2h13xll2eb11b5b3b1155yaW EXU-H. As a variant on the standard low lift pallet truck, the EXU-H has the same product benefits as the new EXU range. In addition to this, there are important special features which make the EXU-H a perfect all-round truck: - Extra order picking lift of 690 mm lift height giving a picking height of 775 mm from the floor, taking the strain off the back, and reducing fatigue levels. - Additional area of application as an order picker, mobile working table with variable working height, in the block storage or as a high...

EXU 1.5 HHe 07/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 [email protected] For further information please visit: www.still.de/EXU Your contact @
