STILL
EXD-S / EGD

EXD-S / EGD

Product catalog summary

Overview: The EXD-S is a high lift pallet truck designed for double-decker use, capable of lifting up to 2,000 kg with the initial lift or 2 x 1,000 kg with double-decker loading. It enhances efficiency in loading and unloading operations by allowing simultaneous transport of two pallets.

Chassis Frame: The truck features a robust design optimized for vehicle loading and unloading, with a frame that prevents catching on ramp edges and allows safe reversing. It includes a 'D-Box' structure for reliability and a sprung drive unit for optimal traction.

Steering: Equipped with fully electric "Fly-by-Wire" steering, the truck offers automatic return to the straight-ahead position and electronic damping for precise control. Speed reduction during cornering enhances stability.

Multi-function Controls: The "COCKPIT" control system integrates all operational functions, including direction, speed, lifting, and diagnostics. It features an ergonomic button layout for ease of use and includes access control via PIN code.

Driver’s Stand-on Platform: Two platform types are available, providing comfort with padded backrests and sprung platforms to protect against shocks.

Drive System: The EXD-S uses a 3.0 kW AC-drive motor, offering modes like "ECO" for battery efficiency and "BOOST" for increased productivity. Regenerative braking and magnetic disc brakes enhance safety and energy recovery.

Hydraulic System: A compact pump and motor unit ensures short lift times, even with full loads, enhancing productivity.

Mast and Initial Lift: The new mast design improves load visibility, with a capacity of 2,000 kg for initial lift and 2 x 1,000 kg for double loading.

Brake System: Two independent brake systems provide soft braking with energy recovery and emergency braking via a cockpit button.

Battery: The battery is accessible for side changes, with options for 450 Ah or 600 Ah capacities, supporting multi-shift operations.

Options and Safety: The EXD-S offers modular accessories, cold store versions, and advanced fleet management options. It complies with EC Guidelines 98/37 and ISO 9001 standards.

Technical Specifications: Detailed specifications include dimensions, weight, performance metrics, and energy consumption, highlighting the truck's capabilities and efficiency.

Specifications:

Height: Lift height is 1544 mm, with mast extended to 2080 mm. Initial lift is 120 mm. Tiller height in drive position ranges from 880 mm to 1480 mm.
Dimensions: Overall length is 1975 mm, extending to 2501 mm. Length to front face of fork is 785 mm, extending to 1311 mm. Overall width is 700 mm, extending to 792 mm. Fork dimensions are 56/184/1190 mm.
Clearance: Floor clearance under mast is 36+120 mm, and at the center of the wheelbase is 35+120 mm.
Turning and Aisle Width: Working aisle width is 2426 mm, extending to 3025 mm. Outer turning radius is 1770 mm, extending to 2369 mm.

Performance:

Speed: Laden/unladen speed is 6.0/6.0 km/h, extending to 8/11.2 km/h.
Lifting and Lowering: Lifting time is 2.0/1.8 seconds, lowering time is 1.6/1.6 seconds. Lift speed is 0.11/0.20 m/s.
Gradeability: 7% laden, 10% unladen.
Acceleration: 8.7/7.7 seconds over 10 m.
Brakes: Electromagnetic.

Electric Motors:

Drive Motor: 1.2 kW, with a hoist motor rating of 2.0 kW.
Battery: 24 V/200 Ah, weighing 185 kg. Energy consumption is 0.62 kWh/h.

Other Features:

Drive Control: Impuls.
Noise Level: 65 dB(A) at operator’s ears.

Capacity: Initial lift capacity is 1600 kg, with double decker use at 2 x 800 kg.

Catalog excerpts

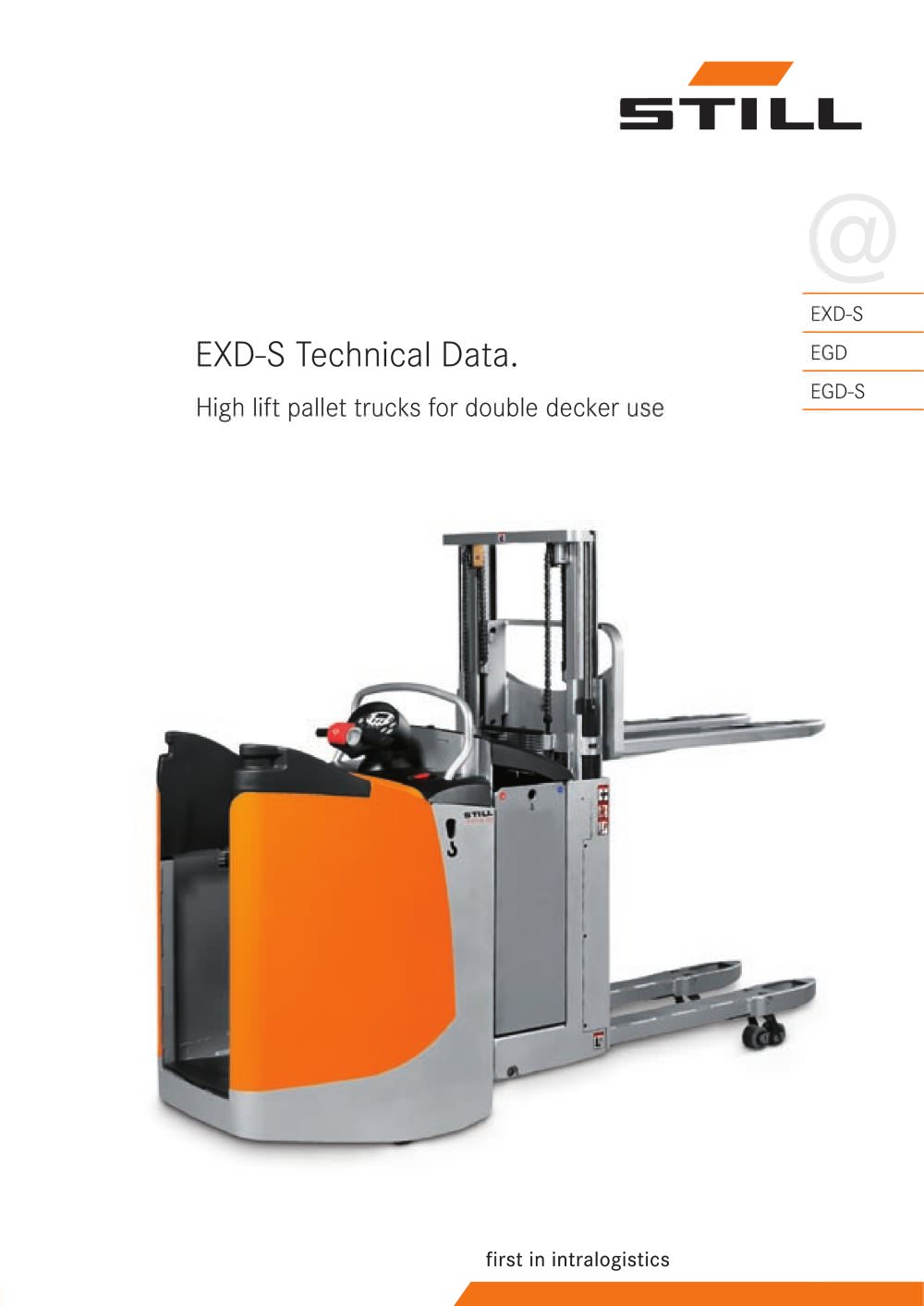

EXD-S Technical Data. High lift pallet trucks for double decker use @

Open the catalog to page 1

2 The EXD-S is a heavy duty double decker high lift pallet truck that can lift a maximum of 2,000 kilogrammes when using the initial lift or 2 x 1,000 kg when utilising double decker loading and unloading. Two pallets can be transported simultaneously with the EXD-S - so time can be saved by the more effecient loading and unloading of lorries. Chassis frame. - Optimised for loading and unloading vehicles, the EXD-S’s design provides excellent driving characteristics on loading ramps, dock levellers and in the tight confines of lorries, containers and trailers. - Acting as a slider, the lower...

Open the catalog to page 2

3 Hydraulic system. - A compact pump and 2.2 kW motor unit with a built in oil tank, solenoid valve and maximum pressure valve operates on the lift cylinder with lift cut-out. - This powerful hydraulic system offers very short lift times, even with full load, thereby providing high productivity for loading and unloading vehicles. Mast and initial lift. - Optimal view when loading due to the new mast concept. - Wider mast and improved mast shape allow an optimal view of the load. - Capacity of the initial lift max. 2,000 kilograms, for double loading 2 x 1,000 kilograms. Brake system. - There...

Open the catalog to page 3

4 In accordance with VDI guidelines 2198, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Characteristics 1.1 Manufacturer STILL STILL 1.2 Manufacturer‘s model designation EXD-S with fixed platform. open at back EXD-S with fixed platform. open at side 1.3 Power supply (electric, diesel, petrol, gas, mains electric) Electric Electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) Stand-on Stand-on 1.5 Capacity/load Q kg 2000 1) 2000 1) 1.6 Nominal load centre c mm 600...

Open the catalog to page 4

5 EXD-S: Entry at the rear EXD-S: Entry at the side

Open the catalog to page 5

6 Design. - The functional design and optimal ergonomics are ideally suited for double-decker loading and unloading. Both a low lift and at the same time a high lift pallet truck, the EGD 16 offers the highest versatility and productivity. - The cover which is made of extremely sturdy polyurethane (RIM = Reaction Injection Moulding) provides various storage facilities due to its raised edging bead, and the A4 writing surface with document clip. - The sturdy chassis made of thick-walled steel plate is a match for hard applications. Steering. - Light operation allows manoeuvring in the tightest...

Open the catalog to page 6

7 In accordance with VDI guidelines 2198, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Charcacteristics 1.1 Manufacturer STILL STILL 1.2 Manufacturer’s model designation EGD 16 EGD-S with folding platform and hinged side guards 1.3 Power supply (electric, diesel, petrol, gas, mains electric) electric electric 1.4 Type of control (hand, pedestrian, stand-on, rider seated, order picker) Pedestrian stand-on 1.5 Capacity/load Q kg 1600 1) 1600 1.6 Load centre c mm 600 600 1.8 Load distance x mm 982...

Open the catalog to page 7

EXD-S 0.5 HHe 06/09 TD Subject to technical modifications. Your contact STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 [email protected] For further information please visit: www.still.de/EXD-S @

Open the catalog to page 8
