Introduction
The EK-X vertical order picker by STILL is a new generation truck featuring the OPTISPEED concept. It is designed for ergonomic operation, high lift and picking heights, and customizable dimensions to meet various customer needs.

Key Features

Ergonomic workspace with advanced control and sensor technology for fatigue-free operation.
High lift capabilities with a load capacity of up to 1,000 kg.
Modular design for scalability and customization.
OPTISPEED concept for enhanced performance and safety through adjustable drive profiles.
Maintenance-free AC technology for optimal availability and reduced operational costs.
Compact design for use in narrow warehouse spaces.

Operator's Compartment

Spacious cabin with ergonomic controls and a comfortable foot switch.
Central foot mat to reduce body vibrations and strain.
Large storage compartments and integrated display for easy monitoring.

Technology and Performance

Powerful 24V AC drives with energy recovery under braking.
Proportional hydraulics for sensitive lifting.
Selectable power modules to match customer demands.

Steering and Chassis

Fully electric steering with a redundant 2-channel system for safety.
Torsion-resistant steel construction with options for frame width and overhead guard height.

Mast and Hydraulics

Torsion-resistant lift masts with single and telescopic options.
Innovative design for optimal load visibility.
Hydraulic dampening for smooth operation.

Brakes and Battery

Wear-free generative operation brake with energy recuperation.
Battery capacities ranging from 360 Ah to 930 Ah for various operational needs.

Safety and Quality

Compliance with EC guidelines and ISO 9001 certification.
Central service interface for efficient diagnostics and service.

Technical Specifications

Load capacity: 1,000 kg
Drive: Electric
Speed: Up to 10 km/h
Lift motor capacity: 3.2-7.6 kW
Battery type: PzS, 24V

Additional Equipment Options

PIN code access control, automatic aisle recognition, and pedestrian operation features.
Various battery compartment and operator cabin configurations.
Cold storage and antistatic versions available.

Conclusion
The EK-X vertical order picker is a versatile and efficient solution for modern warehouses, offering advanced technology, ergonomic design, and customizable options to enhance productivity and safety.

Catalog excerpts

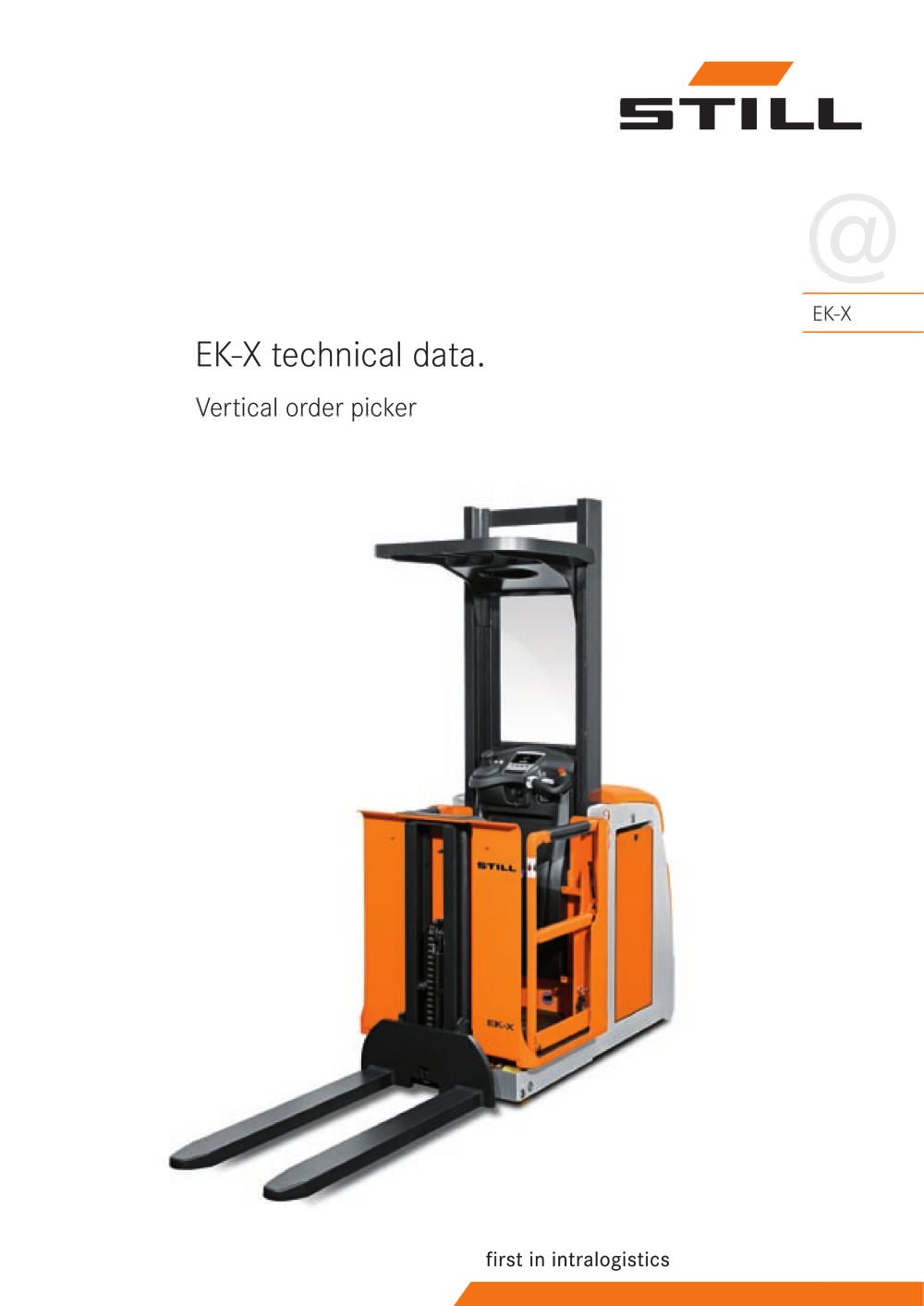

EK-X EK-X technical data. Vertical order picker @

Open the catalog to page 1

2 EK-X TECHNICAL DATA. EK-X vertical order picker. STILL presents the new EK-X generation with future-oriented truck concept, OPTISPEED. This truck generation features: - ergonomic work space with a unique control concept and up-to-date sensor technology for fatigue-free two-handed operation. - high lift and picking heights at minimum dimensions of the truck and load weights up to 1,000 kg. - scalable dimensions and performance - modular design for individual adaptation to every customer demand. - Optispeed truck concept - more performance and safety due to stepless adjustment of the drive profiles...

Open the catalog to page 2

3 Chassis. - Torsion resistant steel construction. - Two frame widths and two overhead guard heights to suit individual applications. - Narrowest order picker on the market: 790 mm chassis available for narrow warehouses and block storage. - Different frame width and operator cabin options allow the truck to be tailored to the individual application. - Impact resistant ABS plastic drive cover - very stable, unbreakable, light and easy to handle. Mast and hydraulics. - Torsion resistant lift masts offer maximum safety. - Single and telescopic masts available, with or without auxiliary lift. -...

Open the catalog to page 3

4 EK-X TECHNICAL DATA. Characteristics 1.1 Manufacturer STILL STILL STILL 1.2 Type designation EK-X single lift mast b1 = 790 EK-X single lift mast b1 = 980 EK-X telescopic lift mast 1.3 Drive(electric, diesel, petrol, mains plug) electric electric electric 1.4 Control (hand, pedestrian, stand-on, driver seat, order picker) order picker order picker order picker 1.5 Load capacity/load Q kg 1000 1000 1000 1.6 Load centre c mm 400 400 400 1.8 Load distance x mm 180 9) 180 9) 180 9) 1.9 Wheel base y mm 1270 1415 1415 Weights 2.1 Dead weight (incl. battery) kg varying 1564 - 1793 varying 2076 - 2305...

Open the catalog to page 4

5 Single lift mast 1500 without auxiliary lift Single lift mast 2000/2500 without auxiliary lift Telescopic lift mast 2400/2900 with auxiliary lift Single lift mast 2000/2500 with auxiliary lift

Open the catalog to page 5

6 EK-X TECHNICAL DATA. Single lift masts with auxiliary lift Closed mast height h1 Overall lift above floor h25 (h3+h9+h13) Total lift h24 (h3+h9) Main lift h3 Closed height h13 Auxiliary lift h9 800 Platform height h12 (h3+h7) Picking height h28 (h12+1600) Max. height h4 (h3+h6) 1.500 1.865 1.800 1.000 65 800 1.200 2.800 2.390 2.000 2.365 2.300 1.500 65 800 1.700 3.300 3.750 2.500 2.775 2.710 1.910 65 800 2.110 3.710 4.160 Intermediate heights on request. Single lift masts without auxiliary lift Closed mast height h1 Overall lift above floor h25 (h3+h9+h13) Total lift h24 (h3+h9) Main lift h3...

Open the catalog to page 6

EK-X 1.6 HHe 09/09 Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 [email protected] For further information please visit: www.still.de Your contact @

Open the catalog to page 8
