Overview: The document provides technical data and specifications for the EXV and EGV series of high lift pallet trucks by STILL, designed for industrial, service, wholesale, and general trade applications. These models offer modern design, ergonomic features, and efficient performance.

Design and Ergonomics: The EXV models feature a modern, functional design with optimal ergonomics. The tiller is designed for both right and left-handed operators, with easily reachable controls to reduce operator fatigue. The trucks include storage compartments and a durable plastic cover.

Steering and Maneuverability: The trucks offer smooth maneuvering in tight spaces, with a gas-spring strut for easy tiller positioning. The offset drive and castor wheel provide stability, making the trucks safe and stable 4-wheel vehicles.

Drive System: The EXV models use a maintenance-free, enclosed 1.2 kW AC drive motor, offering high performance and improved traction control. Features include gentle acceleration, energy recovery during braking, and a 'Hold on Ramp' feature to prevent roll-back.

Mast and Hydraulic System: The trucks can be equipped with various mast types, including Tele, HiLo, and Triplex, offering rigidity and robustness. The hydraulic system features electronic control for precise load positioning and safety devices to protect the system.

Braking System: Two independent brake systems are featured: soft braking with energy recovery and an electromagnetic disk brake for safety and parking.

Battery and Options: The EXV models can be equipped with an integral battery charger and accommodate batteries of various capacities. Options include different fork lengths, tyre types, and additional safety features like cold store protection and a mast safety screen.

Safety and Standards: The trucks conform to the Machine Directive 98/37/EG and carry the CE mark. STILL is certified to ISO 9001. The OPTISPEED 3.0 feature adjusts speed based on tiller angle for enhanced safety.

Technical Specifications: Detailed specifications are provided for each model, including dimensions, weight, performance data, and battery information. The document includes tables with specific measurements and performance metrics for different configurations.

Specifications: The document provides detailed specifications for various models of high lift pallet trucks, including EGV 14/16 and EGV 20. Key specifications include:

Drive motor rating: 1.2 kW for 60 minutes.
Hoist motor rating: Varies by model, with examples like 3.0 kW at 15% duty cycle.
Battery specifications: 24V with capacities ranging from 180Ah to 360Ah, depending on the model.
Energy consumption: Approximately 1.36 kWh/h.
Service brake: Electromagnetic.

Design and Features: The trucks are designed with modern, functional aesthetics and optimal ergonomics. Features include:

Sturdy chassis made of thick-walled sheet steel.
Storage compartments integrated into the cover made of strong polyurethane.
Clear view mast options for better visibility and safety.
Electromagnetic disc brake system for safety and parking.

Performance: Performance metrics for the trucks include:

Travel speed: 5/6 km/h laden/unladen.
Hoist speed: 0.12/0.25 m/s laden/unladen.
Gradeability: Up to 7% laden and 15% unladen.
Acceleration time over 10 m: 8/6.5 seconds laden/unladen.

Safety and Compliance: The trucks comply with Machinery Guidelines 98/37/EC and carry the CE symbol. STILL is certified to ISO 9001 standards.

Additional Features: Additional features include:

Initial lift for increased floor clearance.
On-board charger and load backrest options.
Cold store version available for temperatures down to -30°C.

Overview: The document provides detailed specifications and features of the EGV 20 and EGV-S high lift pallet trucks manufactured by STILL. These trucks are designed for optimal performance, safety, and ergonomics in various industrial applications.

Specifications:

Motor: The EGV 20 uses a 1 kW motor for driving and a 3 kW motor for hydraulics, while the EGV-S uses a 1.2 kW drive motor.
Mast Options: Duplex and Triplex masts are available, offering lift heights over 4300 mm for EGV 20 and over 5300 mm for EGV-S.
Load Capacity: Both models can handle loads up to 2000 kg.
Brakes: Two independent braking systems are featured: a service brake with energy feedback and an electromagnetic parking brake.
Electronic System: Operates on a 24V DC supply with MOSFET technology for efficient energy use and reduced wear.
Safety and Standards: Complies with Machinery Guidelines 98/37/EC and ISO 9001 certification.

Features:

Support Wheel: Ensures optimal tyre grip and stability.
Initial Lift: Increases floor clearance to 135 mm, allowing navigation over uneven surfaces.
Driver’s Platform: The EGV-S features a hinged platform with side protection arms for enhanced safety and comfort.
Steering: Power-assisted tiller with ergonomic design for precise control.
Options: Cold store version, adjustable forks, load backrest, and integral charger are available.

Performance Data:

Travel Speed: Up to 6 km/h laden and 8 km/h unladen for EGV-S.
Hoist Speed: Varies by model and load, with maximum speeds of 0.26 m/s unladen.
Gradeability: Up to 9% unladen for EGV-S.

Conclusion: The EGV 20 and EGV-S high lift pallet trucks are robust, reliable, and versatile machines suitable for demanding industrial environments, offering a range of features and options to enhance productivity and safety.

Catalog excerpts

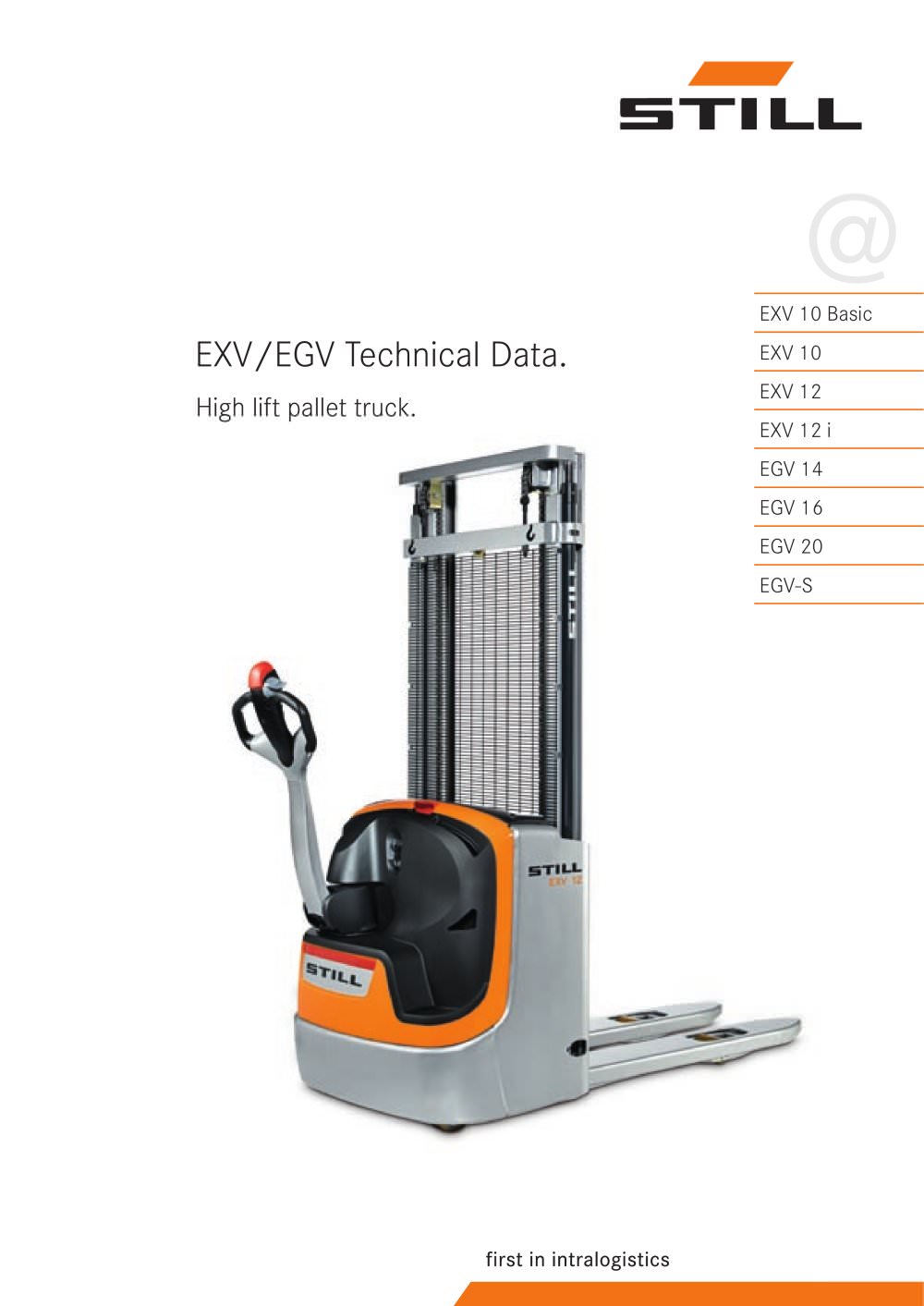

EXV 10 Basic EXV 10 EXV 12 EXV 12 i EGV 14 EGV 16 EGV 20 EGV-S EXV/EGV Technical Data. High lift pallet truck. @

Open the catalog to page 1

2 Simply strong. The EXV 10 basic and the EXV 12 i from STILL were created with a completely new, modern and functional design. The easy to operate machine, with more agility and a higher load carrying capacity, gives longer work cycles for each battery charge. The new EXV models have increased strength in the areas prone to impact damage. The extremely durable cover is manufactured from high-strength, shock absorption material and offers excellent accessibility for servicing and maintenance. A powerful high lift pallet stacker with minimum operating costs, it provides the right solution for...

Open the catalog to page 2

3 Battery. - The EXV 12 i can be optionally equipped with an integral battery charger. - The drive control technology and the low energy requirement resulting from it enable the use of smaller capacity batteries while still providing longer hours of use. - The battery is easily accessible and can be changed by means of a hoist. - The EXV 12 i is equipped with a new battery compartment which enables the use of batteries from 165 to 225 AH capacity. Initial lift. - Increases the ground clearance to 155 mm (130 mm lift) and so permits driving on uneven surfaces, irregularities and ramps. - Allows...

Open the catalog to page 3

4 600500400575930120065078043093909340930092530625700725800860980120012001060120050024390062h50024390062 EXV 12 I EXV 10 BASIC TECHNICAL DATA. In accordance with VDI guidelines 2198 resp. 3597, this specification applies to the standard model only. Alternative tyres, mast types, ancillary equipment, etc. could result in different values. Characteristics 1.1 Manufacturer STILL STILL 1.2 Manufacturer’s model designation EXV 10 Basic EXV 10 Single Tele HiLo 1.3 Drive: (electric, diesel, petrol, LPG, mains electric) Electric Electric 1.4 Operation (Hand, pedestrian, stand-on, sit-on , order picker)...

Open the catalog to page 4

6 High Lift Pallet Truck EGV 14/16. Design. - With modern, functional design and optimal ergonomics, these trucks are good all-rounders for a multiplicity of applications. - Storage compartments are incorporated into the cover, which is made of extremely strong polyurethane. - Sturdy chassis made of thick walled sheet steel is a match for the hardest of applications. Steering. - Lighter steering and ergonomically weighted tiller makes for easy manoeuvring in the tightest spaces. - A gas spring takes the user friendly balanced tiller handle quickly into the vertical braking position when it is...

Open the catalog to page 6

8 Characteristics 1.1 Manufacturer STILL 1.2 Manufacturer’s model designation EGV 14 Chassis short short long long Initial lift Initial lift Mast Tele/HiLo Triplex Tele/HiLo Triplex Tele/HiLo Triplex 1.3 Drive (electric, diesel, petrol, LPG, mains electric) electric 1.4 Operation (hand, pedestrian, stand, sit, order picker) pedestrian 1.5 Capacity/load Q kg 1400 1.6 Load centre c mm 600 1.8 Load distance x mm 690 670 690 670 690 (647)1) 670 (627)1) 1.9 Wheel base y mm 1223 1273 1333 (1288)1) Weights 2.1 Truck weight (including battery) kg 815 950 825 960 925 1060 2.2 Axle load laden drive end/load...

Open the catalog to page 8

10 Pedestrian high lift pallet truck EGV 20. Model. The EGV has been specially developed for arduous workloads involving putting goods into and taking them out of stock at medium lift heights. Chassis. - The construction, with four support points and the tiller fitted at the side, guarantees high stability with a perfect view of the load when picking up and placing a pallet at height. - The drive unit and the support wheel remain within the truck frame, so that the driver’s feet are better protected. - The battery compartment is protected all round by steel sheets and designed for DIN batteries....

Open the catalog to page 10

11 This specification sheet to VDI Guidelines 2198 only gives the technical figures for the standard truck. Different tyres, other masts, additional equipment etc. could give different figures. 1) With limited free lift. 2) With full free lift. 3) With load backrest + 490 mm. 4) With tiller vertical - 45 mm. 5) Maximum gradeability related to truck geometry unladen. 6) Data related to mast with h3 = 4380 mm. 7) Data related to mast with h3 = 3580 mm. 8) With 315 Ah battery. 9) - 20 mm with Triplex mast and full free lift. 10) With Duplex mast h3 = 3580 mm and min. rated battery capacity (see...

Open the catalog to page 11

13 Pedestrian high lift pallet truck with hinged platform. The new high lift pallet truck, with hinged driver’s platform and side protection arms, has been developed with the objective of achieving the best possible safety and ergonomics. Thanks to the use of reliable and proven technical solutions, the new EGV-S is an extremely reliable and productive machine, especially under difficult application conditions. Chassis. The EGV-S has 4-point wheel support: the rigidly mounted drive unit, arranged to one side, with a castor wheel. This configuration guarantees the stability and high residual capacity...

Open the catalog to page 13

STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 [email protected] For further information please visit: www.still.de/EXV Your contact EXV/EGV 1.3 HHe 07/09 TD Subject to technical modifications. @

Open the catalog to page 16
