Catalog excerpts

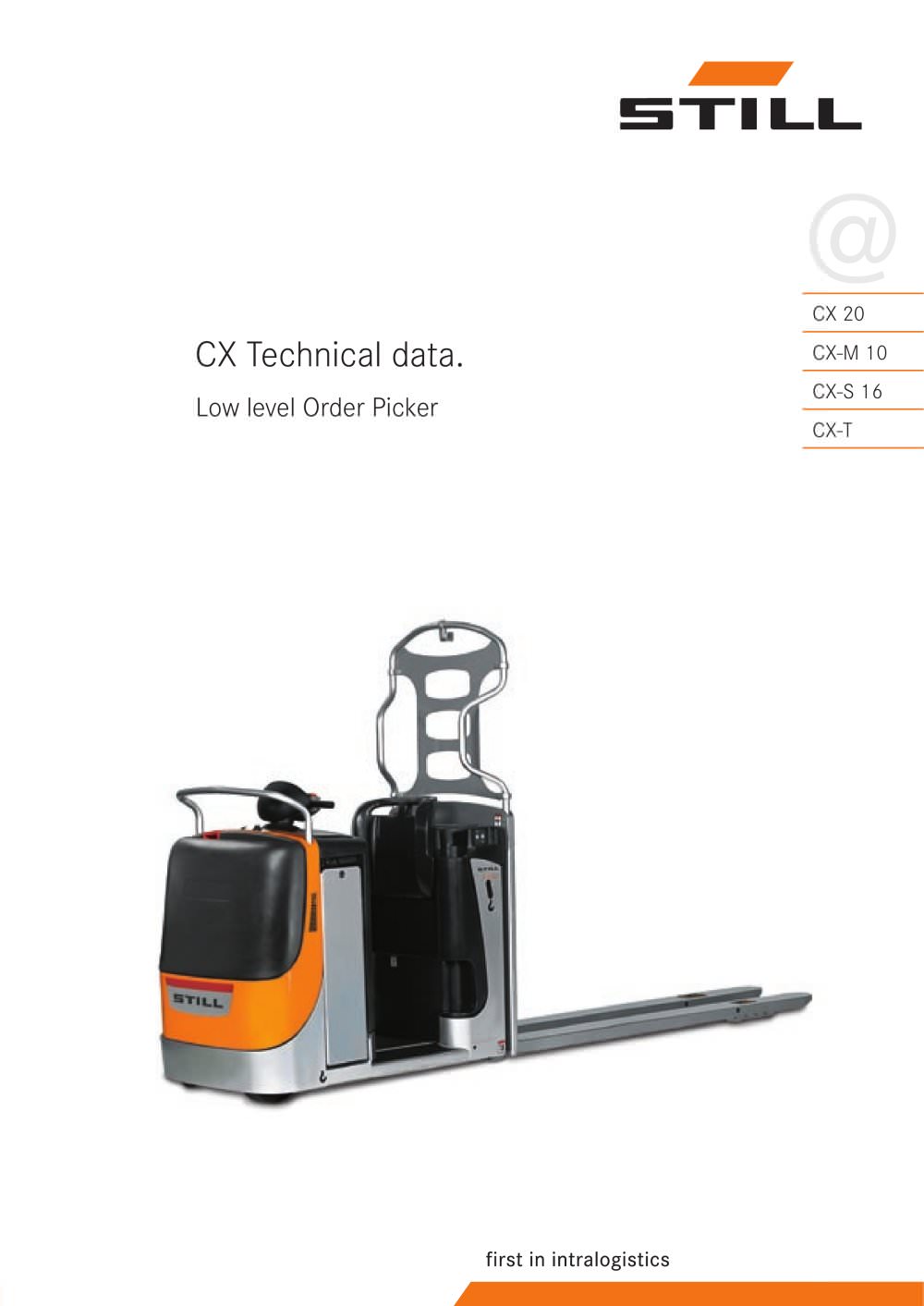

CX-T - 1

CX 20 CX-M 10 CX-S 16 CX-T CX Technical data. Low level Order Picker @

Open the catalog to page 1
CX-T - 2

2 This specification sheet to VDI Guidelines 2198 or 3597 gives the technical figures for the standard truck only. Different tyres, other masts, additional equipment etc. could give different figures. Characteristics 1.1 Manufacturer STILL 1.2 Manufacturer’s model designation CX 20 1.3 Drive Electric 1.4 Controls Order picker 1.5 Capacity/load Q kg 2000 1.6 Load centre c mm 1200 1.8 Load distance x mm 1615 1.9 Wheel base y mm 28431) Weights 2.1 Truck weight (inc. battery) kg 1145 2.2 Axle load laden drive end/load end kg 1250/1895 2.3 Axle load unladen drive end/load end kg 880/265 Wheels |...

Open the catalog to page 2
CX-T - 4

4 Characteristics 1.1 Manufacturer STILL STILL STILL 1.2 Manufacturer’s model designation CX-M 10 CX-S 16 CX-T 1.3 Drive Electric Electric Electric 1.4 Controls Order picker Order picker Stand-on 1.5 Capacity/load Q kg 1000 1600 - 1.5.1 Trailing load Q kg 4000 1.6 Load centre c mm 600 1200 - 1.7 Drawbar pull F - - 1600 1.8 Load distance x mm 675 13811)/1542 - 1.9 Wheel base y mm 1906 26611)/2822 1195 Weights 2.1 Truck weight (inc. battery) kg 1218 1476 1170 2.2 Axle load laden drive end/load end kg 868/1350 1202/1874 - 2.3 Axle load unladen drive end/load end kg 842/376 1016/460 585/585...

Open the catalog to page 4
CX-T - 5

5 ylcxAstl1l2b1b10b11b5Wam2sh13h14e1090102560185452420h7100100b3h3h1h4h1410901025601854124201757501078h141090102560185412420175751078h10b11h10h10m21025h141100185452420l1l5b1wah7yb1800b11679h7146h10300 / 355 / 410h141165l11573l5128m270y1195wa1390 4000 3000 2000 1000 5000 4000 3000 2000 1000 0 12 10 8 6 4 2 0 2 4 6 8 10 12 14 16 18 20 CX-M 10. gradient [%] Speed (km/h) Pulling Power [N] Permissible run [m] Speed (km/h) Permissible run Performance example: On a 2% gradient with a towed load of 4 t, the CX-T can pull this load at a speed of 4.0 km/h for 3500 m uninterrupted, and still brake it....

Open the catalog to page 5
CX-T - 6

6 Truck frame. - Reinforced at the front to act as a collision guard. The working parts of the truck are all easily accessible behind the removable front cover. Steering. - Fully electric steering with automatic return to the neutral position. - In the centre steering range any unintentional steering movements are electronically damped, to guarantee precise straight-ahead driving without vibrations. - Automatic speed reduction when driving around curves and side mounted idler support castors give high lateral stability and reduce the effects of centrifugal force. Multi-function controls....

Open the catalog to page 6
CX-T - 7

7 CX-M 10 (Mast lift). - Additional mast lift of 700 mm lift height, with a resulting back-saving picking height of 786 mm above the floor. - Fork length for 1 Euro pallet lengthways. - Residual capacity of 1000 kilogrammes (at 600 mm load centre) with mast fully extended. - Hoisting/lowering as standard using additional buttons on the backrest and on COCKPIT. - Automatic speed limitation when the load is raised, to ensure stability when driving laden around bends. - Automatic lowering stop at 400 mm in order to protect the feet. CX-S 16 (Scissor-lift). - Additional mast lift of 700 mm lift...

Open the catalog to page 7
CX-T - 8

CX 0.7 HHe 07/09 TD Subject to technical modifications. STILL GmbH Berzeliusstraße 10 D-22113 Hamburg Telephone: +49 (0)40/73 39-2000 Telefax: +49 (0)40/73 39-2001 info@still.de For further information please visit: www.still.de/CX Your contact @

Open the catalog to page 8
