Catalog excerpts

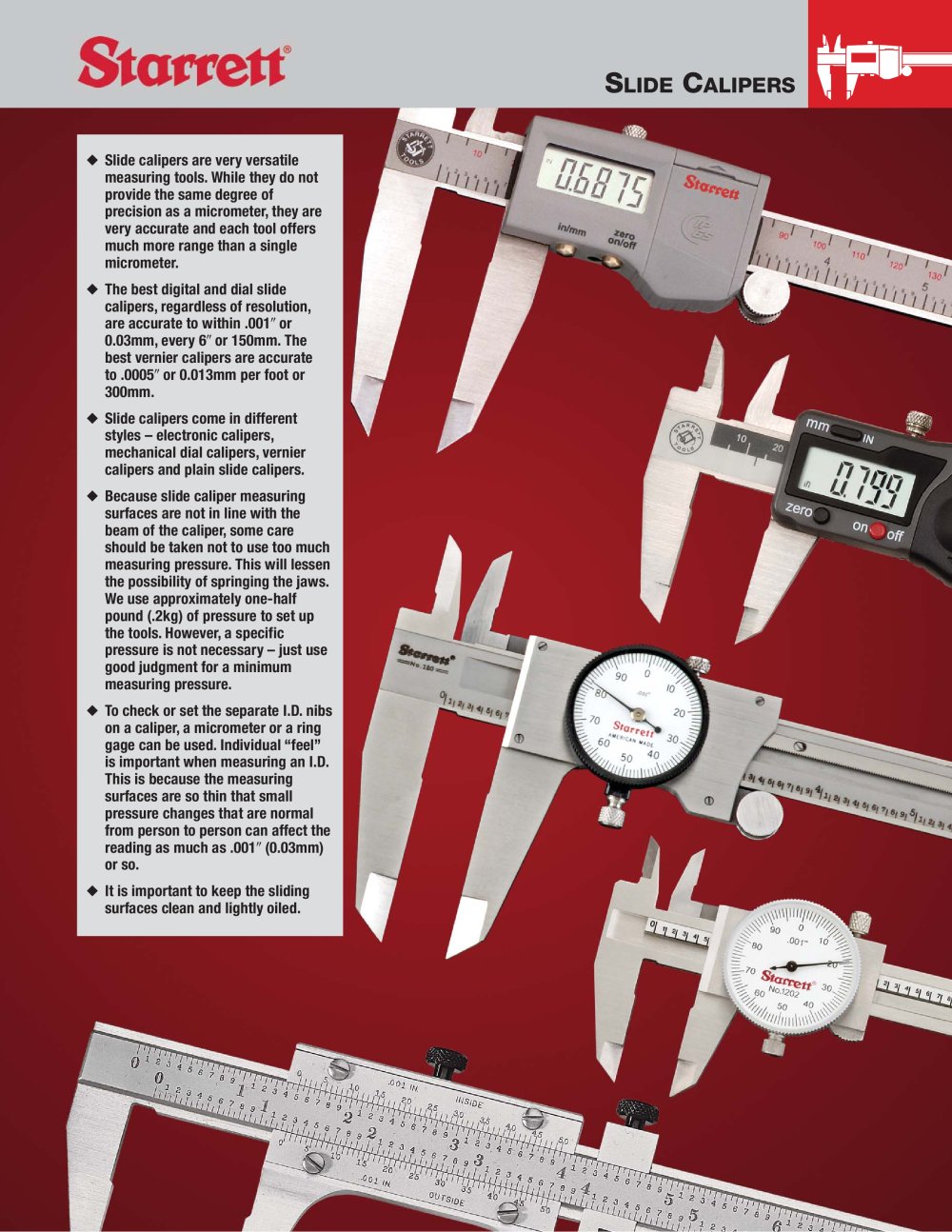

Ÿ Slide calipers are very versatile measuring tools. While they do not provide the same degree of precision as a micrometer, they are very accurate and each tool offers much more range than a single micrometer. Ÿ The best digital and dial slide calipers, regardless of resolution, are accurate to within .001 or 0.03mm, every 6 or 150mm. The best vernier calipers are accurate to .0005 or 0.013mm per foot or 300mm. Ÿ Slide calipers come in different styles – electronic calipers, mechanical dial calipers, vernier calipers and plain slide calipers. Ÿ Because slide caliper measuring surfaces are not in line with the beam of the caliper, some care should be taken not to use too much measuring pressure. This will lessen the possibility of springing the jaws. We use approximately one-half pound (.2kg) of pressure to set up the tools. However, a specific pressure is not necessary – just use good judgment for a minimum measuring pressure. Ÿ To check or set the separate I.D. nibs on a caliper, a micrometer or a ring gage can be used. Individual “feel” is important when measuring an I.D. This is because the measuring surfaces are so thin that small pressure changes that are normal from person to person can affect the reading as much as .001 (0.03mm) or so. Ÿ It is important to keep the sliding surfaces clean and lightly oiled. SLIDE CALIPERS
Open the catalog to page 1100 SLIDE CALIPERS Packed one in a box. Starrett 797 Electronic Calipers provide an IP65* level of protection against foreign matter in hostile shop environments. They are coolant and water resistant and offer excellent protection against chips, dirt, dust and other contaminants. The extra large LCD (character height .310) makes the 797 exceptionally easy to read. All 797 models also include an output port for RS232 equipped devices. While there are other IP65 electronic calipers available, only the 797 is a Starrett – the tool of choice for the most experienced toolmakers and machinists...
Open the catalog to page 2101 Packed one in a box. SLIDE CALIPERS NOTE: † Includes redemption card for Standard Letter of Certification (SLC). Approximate Jaw Depths 6 (150mm) 8 (200mm) 12 (300mm) Outside 1-1/2 (38mm) 1-7/8 (47.6mm) 2-1/2 (63.5mm) Inside 5/8 (16mm) 3/4 (19mm) 3/4 (19mm) Range Description Catalog No. EDP No. Caliper with Output in Fitted Plastic Case 797B-6/150 68659 0-6 (150mm) Caliper with Output, Standard Letter 797B-6/150 W/SLC 68823 of Certification†, in Fitted Plastic Case Caliper with Output in Fitted Plastic Case 797B-8/200 68660 0-8 (200mm) Caliper with Output, Standard Letter 797B-8/200...
Open the catalog to page 3102 SLIDE CALIPERS Packed one in a box. Starrett’s 799 Series Electronic Calipers are light, comfortable, easy-to-use, and constructed with features that have made Starrett slide calipers the machinist’s first choice for many years. The 799 offers a slim, streamlined profile, a large, clear, easy-to-read LCD display, long battery life, and function buttons for zero and inch/mm. 799 calipers are available in 0-6", 0-8", and 0-12" sizes and the newly available Extended Range 24" and 40". All sizes furnished in a fitted, protective case. Features (all sizes) Ÿ Lightweight, ergonomic design Ÿ...
Open the catalog to page 4103 SLIDE CALIPERS Approximate Jaw Depths 6 (150mm) 8 (200mm) 12 (300mm) 24" 600mm) 40" (1000mm) Outside 1-1/2 (38mm) 2 (50.8mm) 2-1/2 (63.5mm) 4" (100mm) 4" (100mm) Inside 5/8 (16mm) 3/4 (19mm) 23/32 (18.3mm) 11/16" (17.46mm) 11/16" (17.46mm) NOTE: † Includes redemption card for Standard Letter of Certification (SLC). No. 799 Series specifications Range Description Catalog No. EDP No. Caliper in Fitted Plastic Case 799A-6/150 67410 0-6 (150mm) Caliper with Standard Letter 799A-6/150 W/SLC 67620 of Certification†, in Fitted Plastic Case Caliper in Fitted Plastic Case 799A-8/200 67412 0-8...
