Catalog excerpts

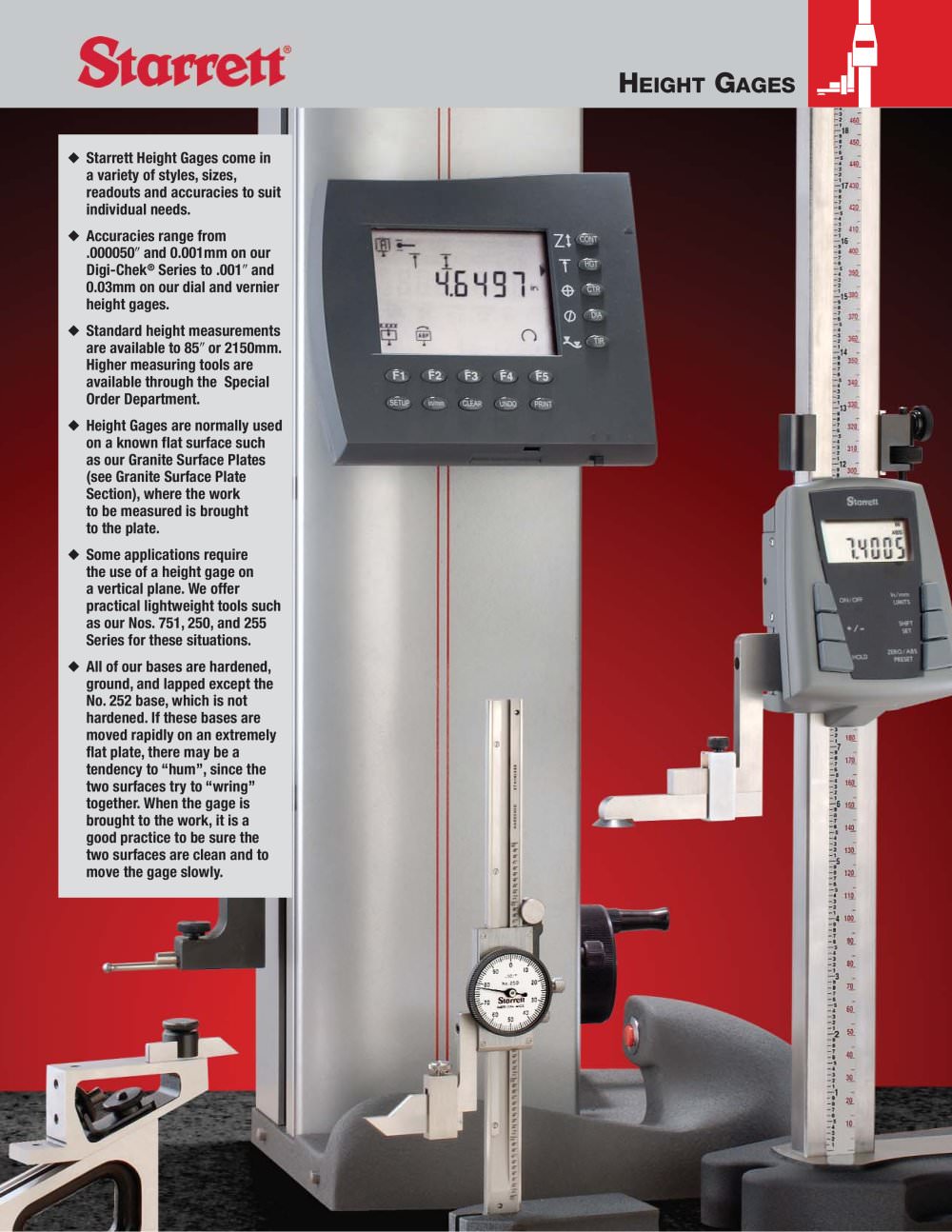

Ÿ Starrett Height Gages come in a variety of styles, sizes, readouts and accuracies to suit individual needs. Ÿ Accuracies range from .000050 and 0.001mm on our Digi-Chek® Series to .001 and 0.03mm on our dial and vernier height gages. Ÿ Standard height measurements are available to 85 or 2150mm. Higher measuring tools are available through the Special Order Department. Ÿ Height Gages are normally used on a known flat surface such as our Granite Surface Plates (see Granite Surface Plate Section), where the work to be measured is brought to the plate. Ÿ Some applications require the use of a height gage on a vertical plane. We offer practical lightweight tools such as our Nos. 751, 250, and 255 Series for these situations. Ÿ All of our bases are hardened, ground, and lapped except the No. 252 base, which is not hardened. If these bases are moved rapidly on an extremely flat plate, there may be a tendency to “hum”, since the two surfaces try to “wring” together. When the gage is brought to the work, it is a good practice to be sure the two surfaces are clean and to move the gage slowly. HEIGHT GAGES
Open the catalog to page 1116 Quickly change between measuring routines by pressing the “hot key,” ergonomically integrated with the base HEIGHT GAGES Features Ÿ A unique, ergonomically shaped base, hardened and ground, that fits your grip just right to easily move the gage and press the … Ÿ Hot key that lets you select measuring results on the fly Ÿ 20-24 Measuring Range Ÿ Smart probe that can measure I.D. or O.D. without attachments Ÿ Electronically adjusted probe force Ÿ Large, easy-to-read interactive LCD with unique scanning meter for monitoring probe position Ÿ Electronically adjustable beeper volume Ÿ Bold...
Open the catalog to page 2117 Specifications: Measuring Range 24/600mm (Extendible to 30/750mm by rotating the probe holder 180º) Resolution .0001/.0005/.001 (.002mm/.01mm/.02mm) Accuracy No. 2000-24 ±.0006 (.015mm) No. 2001-24 ±.0003 (.008mm) Repeatability ±.0001 (±.002mm) Power Source NiMH Rechargeable Batteries (120V AC/60Hz Carger/Adaptor included). Operation time: 100+ hours, Recharging time: 10 hours Included .1875/4.8mm Dia. Carbide Probe, Probe Holder Accessories AC Charger/Adaptor, Probe Calibration Block Dimensions Length 11 (279mm), Width 7-3/4 (197mm), Height 36-1/2 (927mm) Weight 40 lbs. (18 kg)...
Open the catalog to page 3118 Altissimo® Electronic Height Gages (continued) HEIGHT GAGES Height Gages with Standard Components: Description Catalog No. EDP No. Height Gage 2000-24 67008 Height Gage, “Platinum” 2001-24 67453 Carbide Probe .1875 (4.8mm) Dia. (Standard) PT27937 67009 Probe Holder (Standard) PT27940 67010 Probe Calibration Block (Standard) PT27944 67011 Accessories: Accessory Set Includes: S2000AZ 66997 Probe Tip, 5-Way Adaptor PT27948 67012 .040 (1mm) Carbide Contact Point PT23942 65255 .078 (2mm) Carbide Contact Point PT23914 64222 .120 (3mm) Carbide Contact Point PT23943 65256 Contact Wrench PT27952...
