Electronic Micrometers No. 795 Series

Electronic Micrometers No. 795 Series
6Pages

Catalog excerpts

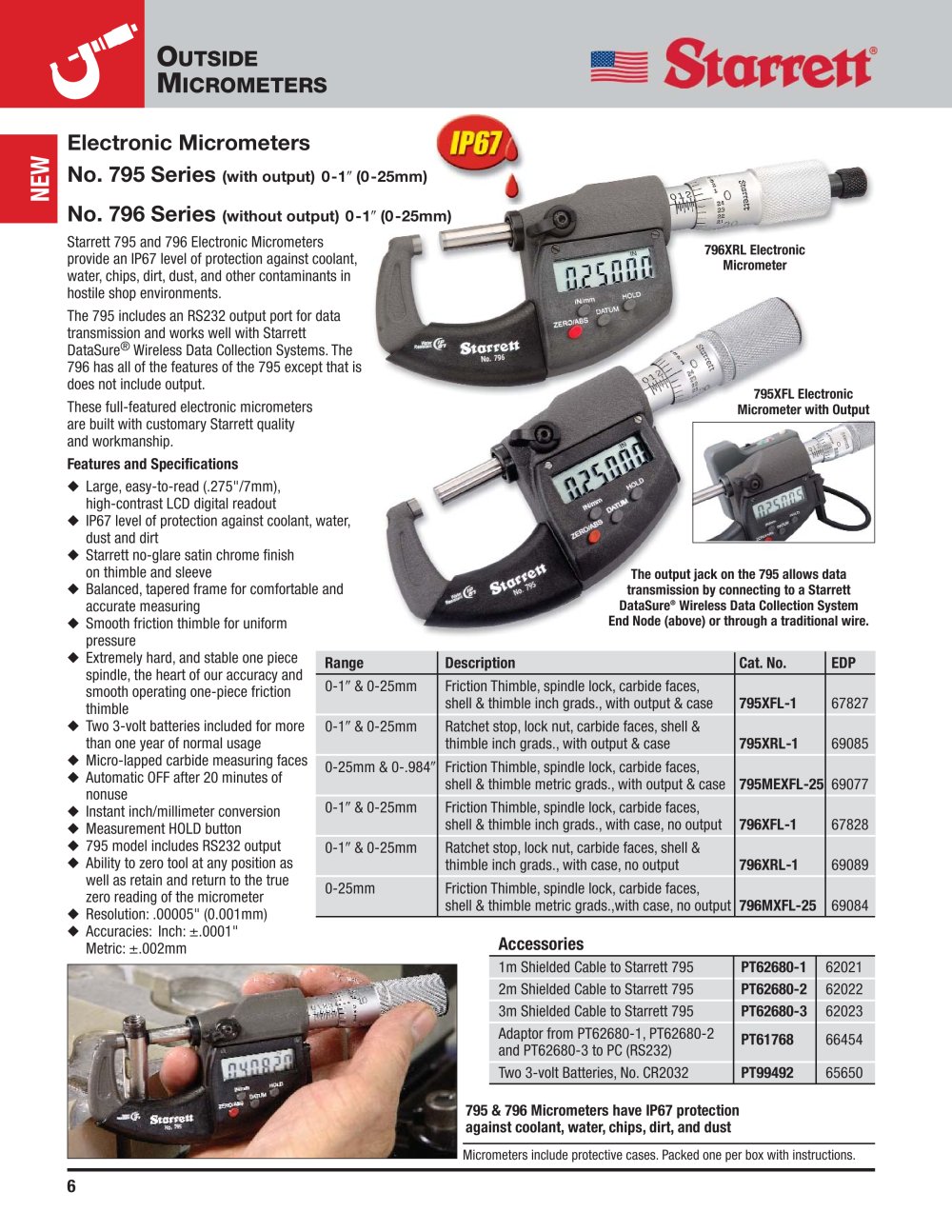

Electronic Micrometers No. 795 Series - 1

6 OUTSIDE MICROMETERS Electronic Micrometers No. 795 Series (with output) 0-1 (0-25mm) No. 796 Series (without output) 0-1 (0-25mm) Micrometers include protective cases. Packed one per box with instructions. Accessories 1m Shielded Cable to Starrett 795 PT62680-1 62021 2m Shielded Cable to Starrett 795 PT62680-2 62022 3m Shielded Cable to Starrett 795 PT62680-3 62023 Adaptor from PT62680-1, PT62680-2 and PT62680-3 to PC (RS232) PT61768 66454 Two 3-volt Batteries, No. CR2032 PT99492 65650 NEW The output jack on the 795 allows data transmission by connecting to a Starrett DataSure® Wireless Data Collection System End Node (above) or through a traditional wire. 795XFL Electronic Micrometer with Output 796XRL Electronic Micrometer Range Description Cat. No. EDP 0-1 & 0-25mm Friction Thimble, spindle lock, carbide faces, shell & thimble inch grads., with output & case 795XFL-1 67827 0-1 & 0-25mm Ratchet stop, lock nut, carbide faces, shell & thimble inch grads., with output & case 795XRL-1 69085 0-25mm & 0-.984 Friction Thimble, spindle lock, carbide faces, shell & thimble metric grads., with output & case 795MEXFL-25 69077 0-1 & 0-25mm Friction Thimble, spindle lock, carbide faces, shell & thimble inch grads., with case, no output 796XFL-1 67828 0-1 & 0-25mm Ratchet stop, lock nut, carbide faces, shell & thimble inch grads., with case, no output 796XRL-1 69089 0-25mm Friction Thimble, spindle lock, carbide faces, shell & thimble metric grads.,with case, no output 796MXFL-25 69084 795 & 796 Micrometers have IP67 protection against coolant, water, chips, dirt, and dust Starrett 795 and 796 Electronic Micrometers provide an IP67 level of protection against coolant, water, chips, dirt, dust, and other contaminants in hostile shop environments. The 795 includes an RS232 output port for data transmission and works well with Starrett DataSure® Wireless Data Collection Systems. The 796 has all of the features of the 795 except that is does not include output. These full-featured electronic micrometers are built with customary Starrett quality and workmanship. Features and Specifications Ÿ Large, easy-to-read (.275"/7mm), high-contrast LCD digital readout Ÿ IP67 level of protection against coolant, water, dust and dirt Ÿ Starrett no-glare satin chrome finish on thimble and sleeve Ÿ Balanced, tapered frame for comfortable and accurate measuring Ÿ Smooth friction thimble for uniform pressure Ÿ Extremely hard, and stable one piece spindle, the heart of our accuracy and smooth operating one-piece friction thimble Ÿ Two 3-volt batteries included for more than one year of normal usage Ÿ Micro-lapped carbide measuring faces Ÿ Automatic OFF after 20 minutes of nonuse Ÿ Instant inch/millimeter conversion Ÿ Measurement HOLD button Ÿ 795 model includes RS232 output Ÿ Ability to zero tool at any position as well as retain and return to the true zero reading of the micrometer Ÿ Resolution: .00005" (0.001mm) Ÿ Accuracies: Inch: ±.0001" Metric: ±.002mm

Open the catalog to page 1

Electronic Micrometers No. 795 Series - 2

7 OUTSIDE MICROMETERS Electronic Micrometers No. 733 Series (with output) 0-24 (0-600mm) No. 734 Series (without output) 0-1 (0-25mm) The 733 and 734 are full function electronic outside micrometers with a full range of features. The 733 Series is offered in a wide variety of sizes up to 24 and includes output. The 734 Series is available in a 0-1 (0- 25mm) inch/millimeter version and a 0- 25mm metric-only version, both without output. Ÿ Large, right-sized, high-contrast LCD digital readout is easy to read and reduces errors Ÿ Conventional inch or millimeter graduations standard Ÿ...

Open the catalog to page 2

Electronic Micrometers No. 795 Series - 5

10 Available in inch and millimeter models. Shown above: top, No. T216XFL-2 (2 model); bottom, No. 216MXRL-25 (25mm model). Digital Micrometers No. 216 Series 0-12 No. 216M Series 0-300mm This is the Starrett mechanical digital micrometer – simple to use even by the inexperienced. The anvil and spindle are sized at .250 (6.35mm). Readability Features Ÿ Clear, easily read numbers reduce errors Ÿ No-glare black finish on the frame Ÿ Starrett no-glare satin chrome finish on thimble and sleeve Ÿ .001 or .01mm is read directly from the counter Ÿ .0001 or .001mm is read from the vernier scale on...
