Electronic Height Gages No. 3752 Series

Electronic Height Gages No. 3752 Series
3Pages

Catalog excerpts

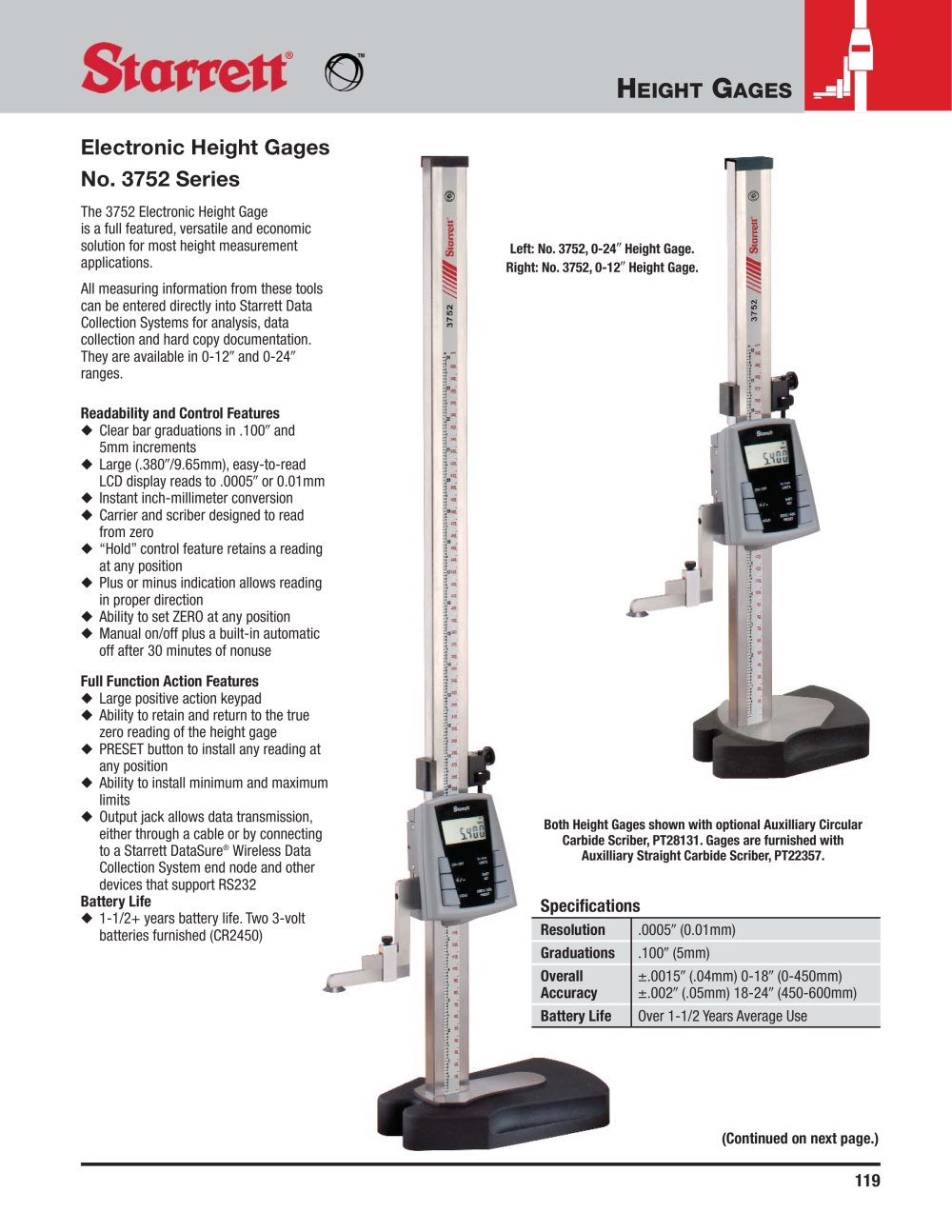

Electronic Height Gages No. 3752 Series - 1

119 HEIGHT GAGES Electronic Height Gages No. 3752 Series The 3752 Electronic Height Gage is a full featured, versatile and economic solution for most height measurement applications. All measuring information from these tools can be entered directly into Starrett Data Collection Systems for analysis, data collection and hard copy documentation. They are available in 0-12 and 0-24 ranges. Readability and Control Features Ÿ Clear bar graduations in .100 and 5mm increments Ÿ Large (.380/9.65mm), easy-to-read LCD display reads to .0005 or 0.01mm Ÿ Instant inch-millimeter conversion Ÿ Carrier and scriber designed to read from zero Ÿ “Hold” control feature retains a reading at any position Ÿ Plus or minus indication allows reading in proper direction Ÿ Ability to set ZERO at any position Ÿ Manual on/off plus a built-in automatic off after 30 minutes of nonuse Full Function Action Features Ÿ Large positive action keypad Ÿ Ability to retain and return to the true zero reading of the height gage Ÿ PRESET button to install any reading at any position Ÿ Ability to install minimum and maximum limits Ÿ Output jack allows data transmission, either through a cable or by connecting to a Starrett DataSure® Wireless Data Collection System end node and other devices that support RS232 Battery Life Ÿ 1-1/2+ years battery life. Two 3-volt batteries furnished (CR2450) Specifications Resolution .0005 (0.01mm) Graduations .100 (5mm) Overall ±.0015 (.04mm) 0-18 (0-450mm) Accuracy ±.002 (.05mm) 18-24 (450-600mm) Battery Life Over 1-1/2 Years Average Use Left: No. 3752, 0-24 Height Gage. Right: No. 3752, 0-12 Height Gage. Both Height Gages shown with optional Auxilliary Circular Carbide Scriber, PT28131. Gages are furnished with Auxilliary Straight Carbide Scriber, PT22357. (Continued on next page.)

Open the catalog to page 1

Electronic Height Gages No. 3752 Series - 2

120 HEIGHT GAGES No. 3752 Series Electronic Height Gages Range Description Catalog No. EDP No. 0-12 (300mm) Height Gage without Case 3752-12/300 68815 0-24 (600mm) 3752-24/600 68816 Cables, Accessories, Cases Description Catalog No. EDP No. Shielded Cable to Starrett Nos. 761/772 PT62103 67019 Series Modules, No. PT61768 Adaptor Interface Adaptor for Starrett Tools to PC PT61768 66454 3-Volt Battery, No. CR2450 (2) Required PT61120 65446 Wood Case Only for 12 Gage 928 55249 Wood Case Only for 24 Gage 945 56684 Furnished without case unless otherwise ordered. On/Off Button (auto off after 30...

Open the catalog to page 2

Electronic Height Gages No. 3752 Series - 3

121 0-6/150mm range Catalog No. EDP No. Description 3751AZ-6/150 12221 Height Gage, in Case Accessories and Cables PT99492 65650 One 3-Volt Batteries, No. CR2032 947 56756 Wood Case Only Electronic Height Gage (without output) No. 3751 0-6 / 150mm This height gage is light, portable and easy to use for vertical measurements within its range. Readability Features Ÿ Easy-to-read LCD .32" high characters Accuracy and Long Life Design Features Ÿ Hardened, stainless steel bar for long life Ÿ Depth attachment No. PT08680A available for measuring depth of holes, slots, and recesses Ÿ Fine...

Open the catalog to page 3
