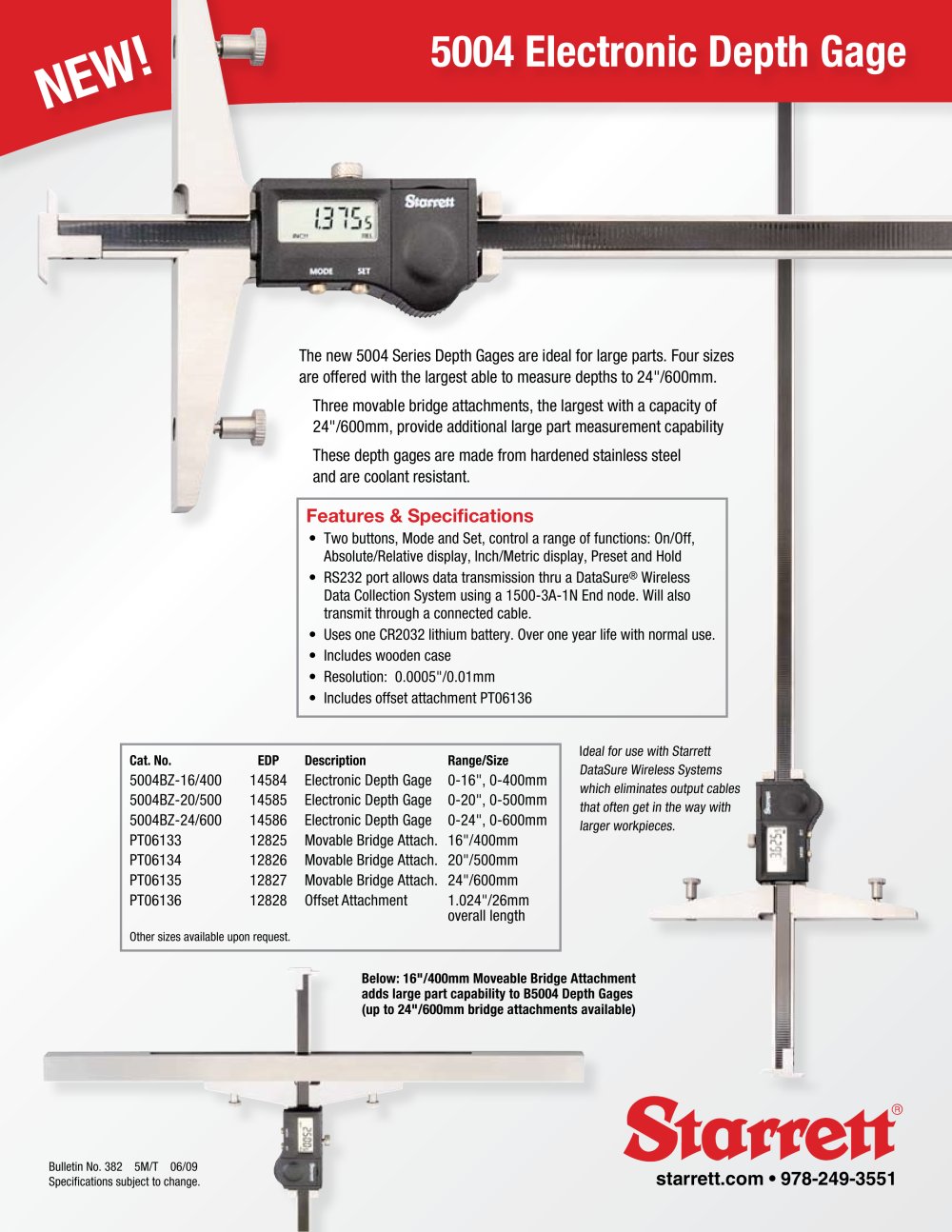

![5004 Electronic Depth Gage - 1](https://img.directindustry.com/pdf/repository_di/11639/5004-electronic-depth-gage-122313_1m.jpg)
The new 5004 Series Depth Gages are ideal for large parts. Four sizes are offered with the largest able to measure depths to 24"/600mm. Three movable bridge attachments, the largest with a capacity of 24"/600mm, provide additional large part measurement capability These depth gages are made from hardened stainless steel and are coolant resistant. Features & Specifications • Two buttons, Mode and Set, control a range of functions: On/Off, Absolute/Relative display, Inch/Metric display, Preset and Hold • RS232 port allows data transmission thru a DataSure® Wireless Data Collection System using a 1500-3A-1N End node. Will also transmit through a connected cable. • Uses one CR2032 lithium battery. Over one year life with normal use. • Includes wooden case • Resolution: 0.0005"/0.01mm • Includes offset attachment PT06136 Cat. No. EDP Description Range/Size 5004BZ-16/400 14584 Electronic Depth Gage 0-16", 0-400mm 5004BZ-20/500 14585 Electronic Depth Gage 0-20", 0-500mm 5004BZ-24/600 14586 Electronic Depth Gage 0-24", 0-600mm PT06133 12825 Movable Bridge Attach. 16"/400mm PT06134 12826 Movable Bridge Attach. 20"/500mm PT06135 12827 Movable Bridge Attach. 24"/600mm PT06136 12828 Offset Attachment 1.024"/26mm overall length Other sizes available upon request. Below: 16"/400mm Moveable Bridge Attachment adds large part capability to B5004 Depth Gages (up to 24"/600mm bridge attachments available) Ideal for use with Starrett DataSure Wireless Systems which eliminates output cables that often get in the way with larger workpieces. Bulletin No. 382 5M/T 06/09 Specifications subject to change. starrett.com • 978-249-3551 NEW! 5004 Electronic Depth Gage
