Waveform Generator

Product catalog summary

Overview: The DS340 is a 15 MHz function and arbitrary waveform generator developed by Stanford Research Systems. It utilizes Direct Digital Synthesis (DDS) technology, offering a combination of features, performance, and affordability suitable for various test and measurement applications.

Specifications:

Frequency Range: 1 µHz to 15.1 MHz with a resolution of 1 µHz.
Waveforms: Capable of generating sine, square, ramp, triangle, and noise waveforms.
Arbitrary Waveforms: Supports up to 16,300 points with a sample rate of 40 MHz.
Output: Source impedance of 50 Ω, with amplitude ranging from 50 mVpp to 10 Vpp into 50 Ω.
Interfaces: Optional RS-232 and GPIB interfaces available.
Modulation: FSK modulation with internal and external modes.
Sweeps: Linear and logarithmic phase-continuous frequency sweeps.
Timebase Accuracy: Standard accuracy of ±5 ppm, with an optional TCXO for improved stability.

Performance:

Sine Wave: Spurious response of < −65 dBc to 1 MHz, harmonic distortion varies with frequency.
Square Wave: Rise/fall time of <15 ns, with minimal overshoot and asymmetry.
Ramps and Triangles: Rise/fall time of 45 ns, with excellent linearity and settling time.

General Features:

Non-volatile memory for storing up to nine sets of instrument settings.
Dimensions: 8.5" × 3.5" × 13" (WHD), Weight: 8 lbs.
Power: 35 W, compatible with various AC voltages.
Warranty: One year for parts and labor on defects in materials and workmanship.

Pricing and Options:

Base price for DS340: $1295.
Option 01 (GPIB, RS-232, and software): $495.
Option 02 (2 ppm TCXO timebase): $350.
Rack mount kits available for $85 each.

Catalog excerpts

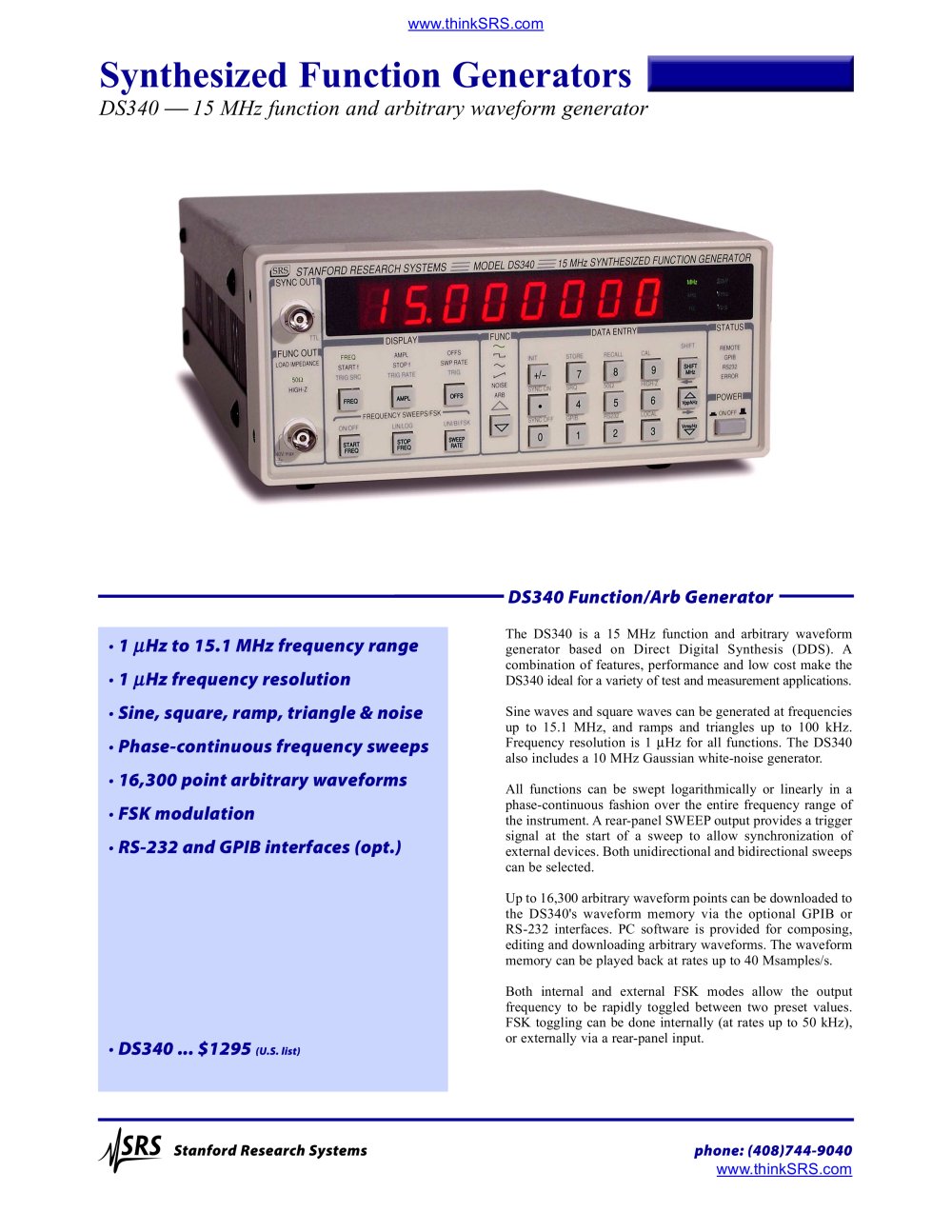

DS340 Function/Arb Generator 1 ׵ Hz to 15.1 MHz frequency range 1 > The DS340 is a 15 MHz function and arbitrary waveformgenerator based on Direct Digital Synthesis (DDS). A combination of features, performance and low cost make the DS340 ideal for a variety of test and measurement applications.Sine waves and square waves can be generated at frequenciesup to 15.1 MHz, and ramps and triangles up to 100 kHz. Frequency resolution is 1 յ Hz for all functions. The DS340also includes a 10 MHz Gaussian white-noise generator.All functions can be swept logarithmically or linearly in aphase-continuous fashion over the entire frequency range of the instrument. Arear-panel SWEEPoutput provides a trigger signal at the start of a sweep to allow synchronization of external devices. Both unidirectional and bidirectional sweeps can be selected.Up to 16,300 arbitrary waveform points can be downloaded tothe DS340's waveform memory via the optional GPIB orRS-232 interfaces. PC software is provided for composing, editing and downloading arbitrary waveforms. The waveform memory can be played back at rates up to 40 Msamples/s.Both internal and external FSK modes allow the outputfrequency to be rapidly toggled between two preset values. FSK toggling can be done internally (at rates up to 50 kHz), or externally via a rear-panel input. Hz frequency resolution Օ Sine, square, ramp, triangle & noise Phase-continuous frequency sweeps Օ 16,300 point arbitrary waveforms FSK modulation Օ RS-232 and GPIB interfaces (opt.) DS340 ... $1295 > (U.S. list) Stanford Research Systemsphone: (408)744-9040 www .thinkSRS.com size="-1">

Open the catalog to page 1

Frequency Range FSK Modulation Max. Freq.Resolution ModesInternal, ExternalMax. rate50 kHz, internal External FSKTTLinput, 1 MHz (max.) Sine15.1 MHz1 HzSquare15.1 MHz1 յ HzRamp100 kHz1 Sweeps HzTriangle100 kHz1 յ HzNoise10 MHz(Gaussian weighting) Arbitrary10 MHz40 MHz/N (sample rate) TypeLinear and logarithmic (phase continuous)SpanLinear (full frequency range), log (6 decades)Sweep rate0.01 Hz to 1 kHz Output Source impedance50 Ω GroundingOutput may float up to 40 V(AC + DC) Timebase Accuracy Amplitude Standardѱ5 ppm (20 C to 30 аC)Optional TCXO, 2 ppm stability, 2 ppm aging (20 C to 50 аC)...

Open the catalog to page 2
