Stanford Research Systems
Distribution Amplifier

Distribution Amplifier

Product catalog summary

Overview: The FS710 AGC Distribution Amplifier is designed for installations requiring multiple 10 MHz outputs from a remote source. It provides seven independent outputs from a single input, with the capability to drive signals up to one mile away.

Key Features:

10 MHz distribution amplifier with 7 output channels.
Capable of driving up to one mile of cable.
30 dB gain through an AGC circuit.
Priced at $1000 (U.S. list).

Specifications:

Input: Frequency of 10 MHz ± 100 kHz, insulated BNC, transformer coupled, level range from 50 mVpp to 5 Vpp, VSWR less than 1.2 at 10 MHz.
Output: 7 local grounded BNCs, level of 1 Vpp into 50 Ω with ±10% tolerance, output VSWR less than 1.2 at 10 MHz, distortion less than −25 dBc.
General: Power requirements of 100/120/220/240 VAC, 3 W, 50/60 Hz, dimensions of 7.75" × 2" × 7.5" (WHD), weight of 3 lbs, and a one-year warranty covering parts and labor for defects in materials and workmanship.

Contact Information: For more details, visit www.thinkSRS.com or call Stanford Research Systems at (408)744-9040.

Catalog excerpts

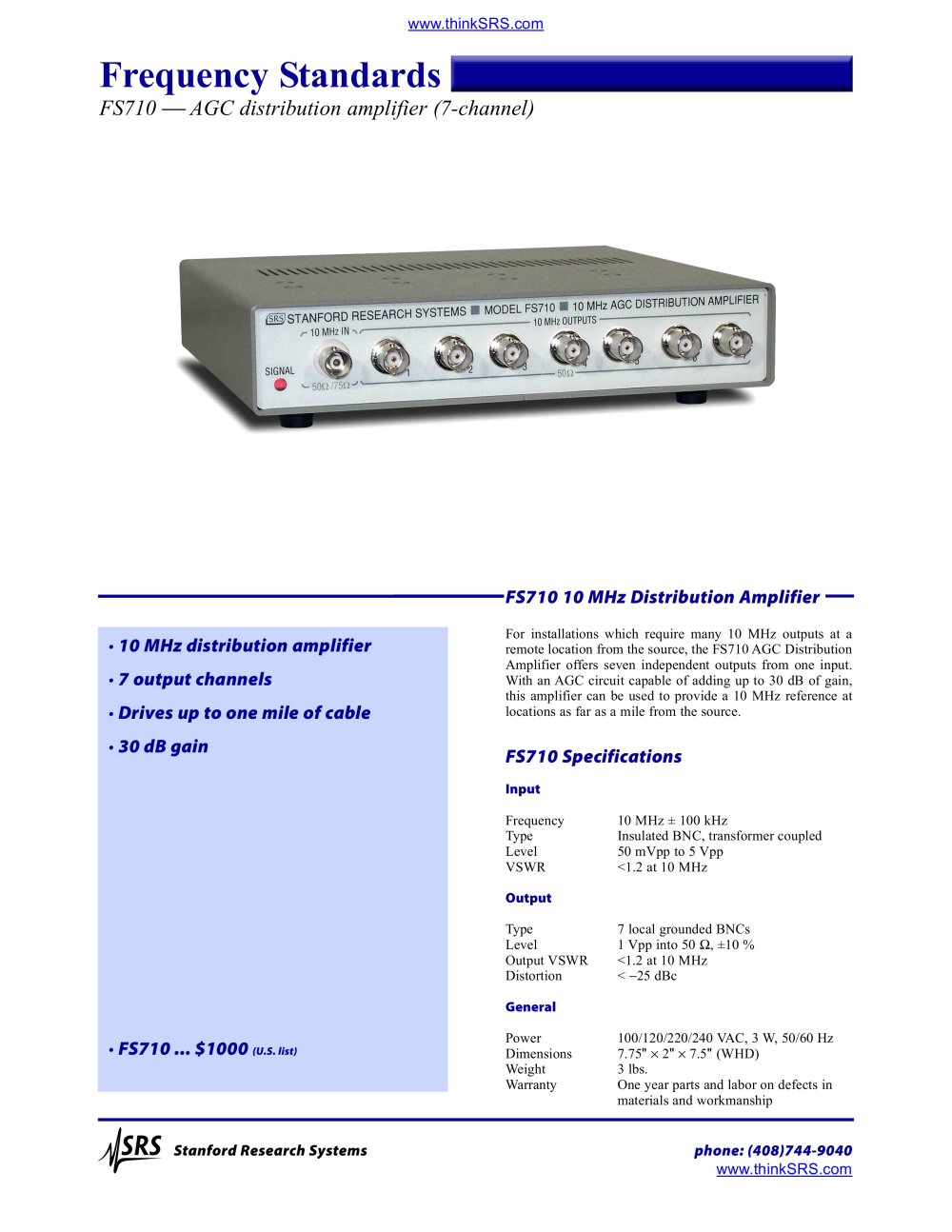

Frequency Standards FS710 . AGC distribution amplifier (7-channel) · 10 MHz distribution amplifier · 7 output channels · Drives up to one mile of cable · 30 dB gain · FS710 ... $1000 (U.S. list) Stanford Research Systems phone: (408)744-9040 www.thinkSRS.com For installations which require many 10 MHz outputs at a remote location from the source, the FS710 AGC Distribution Amplifier offers seven independent outputs from one input. With an AGC circuit capable of adding up to 30 dB of gain, this amplifier can be used to provide a 10 MHz reference at locations as far as a mile from the source. FS710 Specifications Input Frequency 10 MHz ± 100 kHz Type Insulated BNC, transformer coupled Level 50 mVpp to 5 Vpp VSWR <1.2 at 10 MHz Output Type 7 local grounded BNCs Level 1 Vpp into 50 Ù, ±10 % Output VSWR <1.2 at 10 MHz Distortion < -25 dBc General Power 100/120/220/240 VAC, 3 W, 50/60 Hz Dimensions 7.75" × 2" × 7.5" (WHD) Weight 3 lbs. Warranty One year parts and labor on defects in materials and workmanship FS710 10 MHz Distribution Amplifier www.thinkSRS.com
