Catalog excerpts

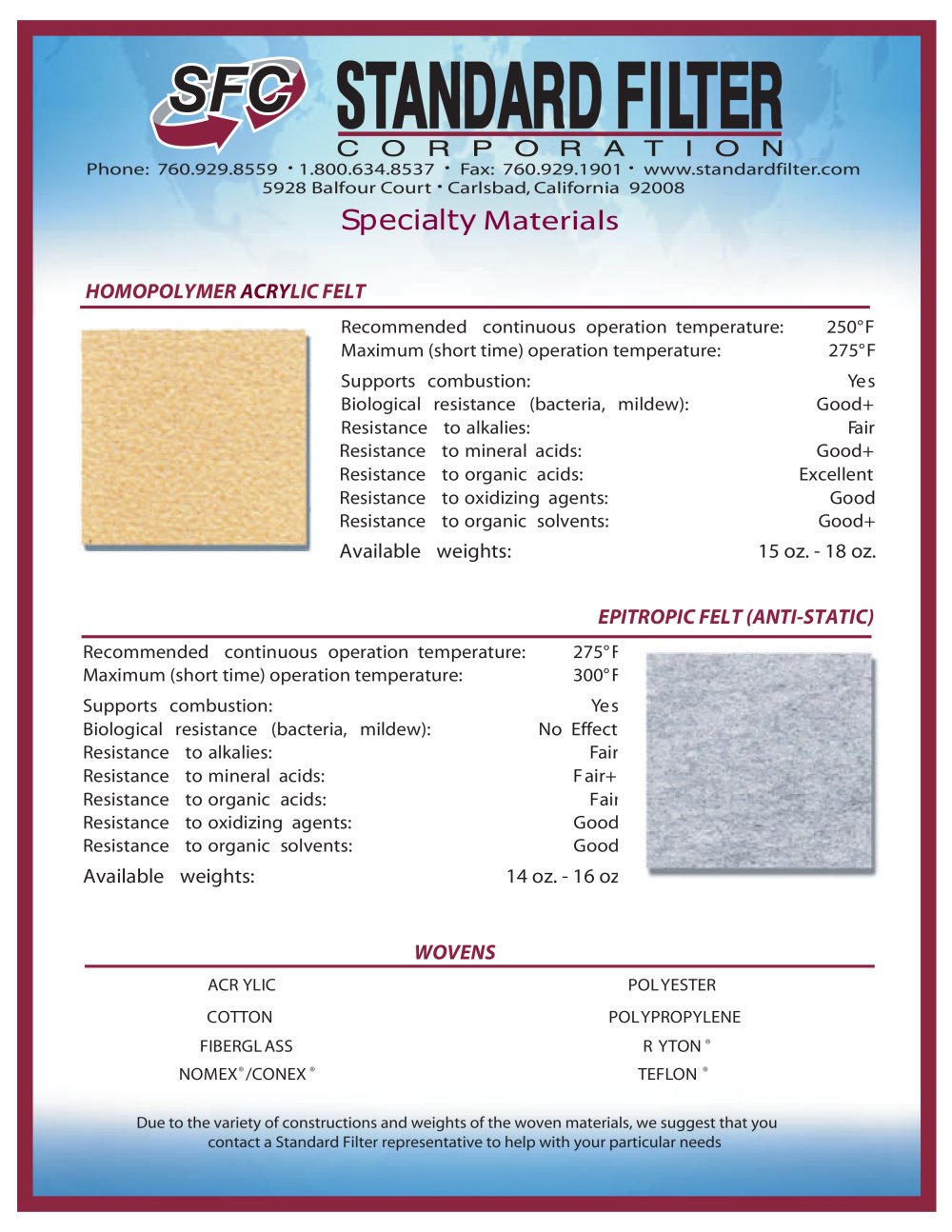

Phone: 760.929.8559 · 1.800.634.8537 · Fax: 760.929.1901 · www.standardfilter.com 5928 Balfour Court · Carlsbad, California 92008 Recommended continuous operation temperature: 275°F Maximum (short time) operation temperature: 300°F Supports combustion: Yes Biological resistance (bacteria, mildew): No Effect Resistance to alkalies: Fair Resistance to mineral acids: Fair+ Resistance to organic acids: Fair Resistance to oxidizing agents: Good Resistance to organic solvents: Good Available weights: 14 oz. - 16 oz. ACR YLIC POLYESTER COTTON POLYPROPYLENE FIBERGLASS R YTON ® NOMEX®/CONEX ® TEFLON ® Due to the variety of constructions and weights of the woven materials, we suggest that you contact a Standard Filter representative to help with your particular needs Recommended continuous operation temperature: 250°F Maximum (short time) operation temperature: 275°F Supports combustion: Yes Biological resistance (bacteria, mildew): Good+ Resistance to alkalies: Fair Resistance to mineral acids: Good+ Resistance to organic acids: Excellent Resistance to oxidizing agents: Good Resistance to organic solvents: Good+ Available weights: 15 oz. - 18 oz. Specialty Materials HOMOPOLYMER ACRYLIC FELT EPITROPIC FELT (ANTI-STATIC) WOVENS
Open the catalog to page 1Phone: 760.929.8559 · 1.800.634.8537 · Fax: 760.929.1901 · www.standardfilter.com 5928 Balfour Court · Carlsbad, California 92008 STYLE AC16SS STYLE AC18SS PRIMARY APPLICATIONS DRY FILTRATION PRIMARY APPLICATIONS DRY FILTRATION PROPERTY U.S. SYSTEM PROPERTY U.S. SYSTEM FIBER CONTENT 100% ACRYLIC FIBER CONTENT 100% ACRYLIC CONSTRUCTION NEEDLE PUNCHED, SCRIM-SUPPORTED CONSTRUCTION NEEDLE PUNCHED, SCRIM-SUPPORTED WEIGHT 16 OZ./SQ YD. NOM. WEIGHT 18 OZ./SQ YD. NOM. THICKNESS 0.085” - 0.105” THICKNESS 0.080” - 0.110” FINISH SINGED FINISH SINGED MULLEN 450 PSI MIN. MULLEN 450 PSI MIN....
