Low Temp Material

Product catalog summary
Overview: The document provides technical specifications for various filtration materials, focusing on their composition, construction, and performance characteristics under different temperature conditions.
Material Specifications:
  • Temperature Resistance: Materials are rated for continuous operation temperatures ranging from 190°F to 275°F, with maximum short-term operation temperatures up to 300°F.
  • Combustion Support: All materials support combustion.
  • Biological Resistance: Excellent resistance to bacteria and mildew is noted for some materials, while others show no effect.
  • Chemical Resistance: Varies across materials, with excellent resistance to alkalies, mineral acids, organic acids, and organic solvents in some cases, while others show fair to good resistance.
  • Available Weights: Materials are available in weights ranging from 10 oz. to 22 oz.
Product Styles:
  • STYLE CB16GU: Composed of 60/40 polyester/polypropylene, suitable for dry filtration, with a weight of 16 oz./sq yd and a temperature range of 210°F continuous to 225°F surge.
  • STYLE PP16GU: Made of 100% polypropylene, applicable for both dry and liquid filtration, with similar weight and temperature specifications as CB16GU.
  • STYLE PE10SU, PE12SU, PE16SU, PE18SU: All styles are 100% polyester, designed for dry filtration, with varying weights and thicknesses. They support continuous operation at 275°F and surge up to 300°F.
Performance Characteristics:
  • Construction: All materials are needle punched and self-supported.
  • Finish: Materials are either glazed or singed.
  • Mullen Burst Strength: Ranges from 250 PSI to 425 PSI, depending on the style.
  • Permeability: Varies from 20 to 55 CFM @ 0.5” W.G., indicating the airflow capacity through the material.
Conclusion: The document outlines the specifications for various filtration materials, emphasizing their suitability for different applications based on temperature resistance, chemical resistance, and physical properties. All specifications are subject to change to enhance product performance.
See more

Catalog excerpts

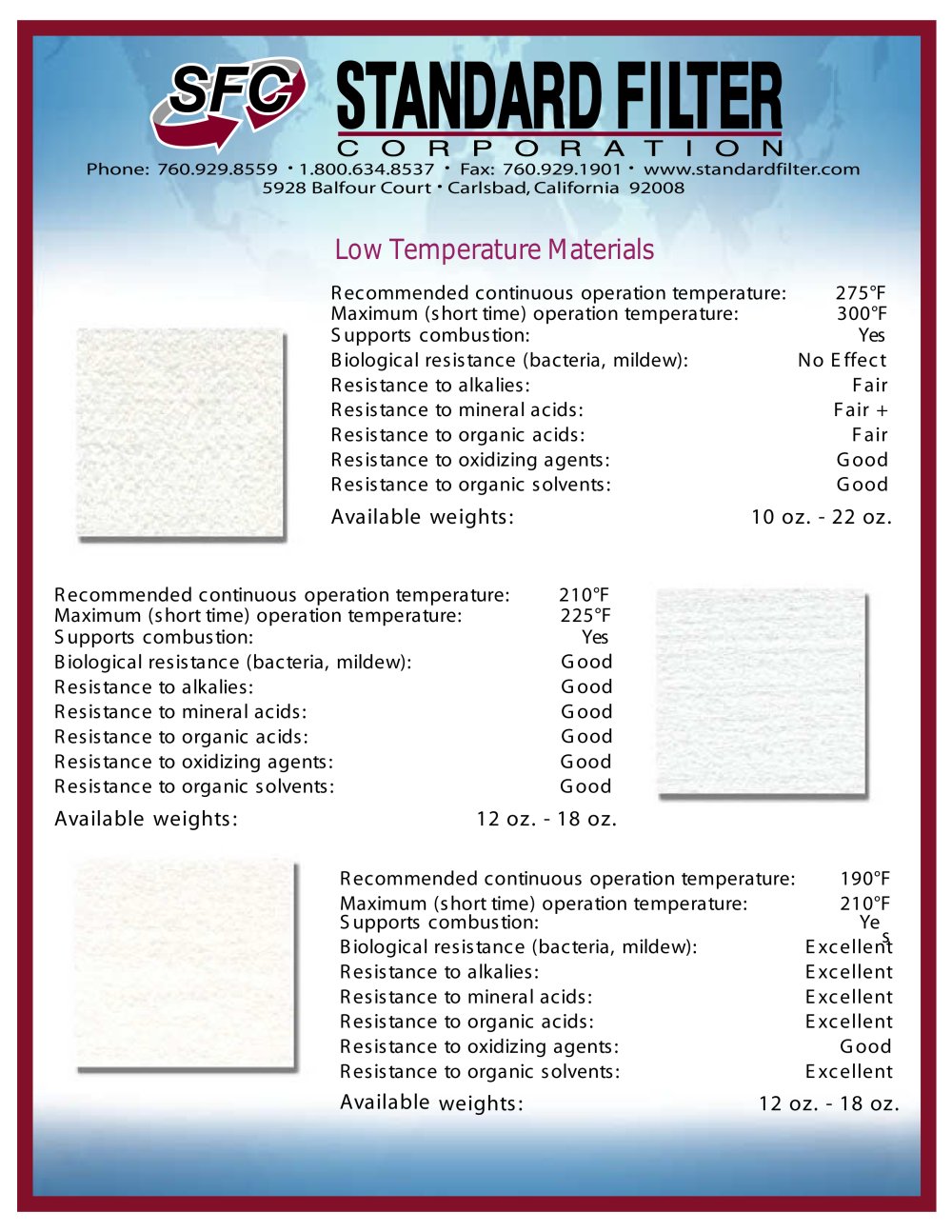

Low Temp Material-1

Phone: 760.929.8559 · 1.800.634.8537 · Fax: 760.929.1901 · www.standardfilter.com 5928 Balfour Court · Carlsbad, California 92008 Recommended continuous operation temperature: 190°F Maximum (short time) operation temperature: 210°F S upports combustion: Ye Biological resistance (bacteria, mildew): E xcellenst Resistance to alkalies: E xcellent Resistance to mineral acids: E xcellent Resistance to organic acids: E xcellent Resistance to oxidizing agents: Good Resistance to organic solvents: E xcellent Available weights : 12 oz. - 18 oz. Recommended continuous operation temperature: 275°F Maximum (short time) operation temperature: 300°F S upports combustion: Yes Biological resistance (bacteria, mildew): No E ffect Resistance to alkalies: Fair Resistance to mineral acids: Fair + Resistance to organic acids: Fair Resistance to oxidizing agents: Good Resistance to organic solvents: Good Available weights : 10 oz. - 22 oz. Recommended continuous operation temperature: 210°F Maximum (short time) operation temperature: 225°F S upports combustion: Yes Biological resistance (bacteria, mildew): Resistance to alkalies: Resistance to mineral acids: Resistance to organic acids: Resistance to oxidizing agents: Good Resistance to organic solvents: Good Available weights : 12 oz. - 18 oz. Good Good Good Good Low Temperature Materials

 Open the catalog to page 1
Low Temp Material-2

Phone: 760.929.8559 · 1.800.634.8537 · Fax: 760.929.1901 · www.standardfilter.com 5928 Balfour Court · Carlsbad, California 92008 STYLE CB16GU STYLE PP16GU PRIMARY APPLICATIONS DRY FILTRATION PRIMARY APPLICATIONS DRY FILTRATION, LIQUID FILTRATION PROPER TY U.S. SYSTEM PROPER TY U.S. SYSTEM FIBER CONTENT 60/40 POLYESTER/POLYPROPYLENE FIBER CONTENT 100% POLYPROPYLENE CONSTRUCTION NEEDLE PUNCHED, SELF-SUPPORTED CONSTRUCTION NEEDLE PUNCHED, SELF-SUPPORTED WEIGHT 16 OZ./SQ YD. NOM. WEIGHT 16 OZ./SQ YD. NOM. THICKNESS 0.075” - 0.095" THICKNESS 0.080” NOM. FINISH GLAZED FINISH GLAZED MULLEN 400 PSI...

 Open the catalog to page 2
