Filter Bags

Product catalog summary
Overview: The document provides detailed information on the design and manufacturing capabilities of Standard Filter Corporation regarding various types of filter bags used in industrial applications.
Reverse Air Bag Types: The company offers a variety of top designs such as strap top, loop top, cord top cuff, compression band tops with steel caps, and grommet top bags. Bottom designs include raw edge, cuffed, compression band, or beaded cuff. Anti-collapse rings made from different materials can be added for enhanced cleaning efficiency.
Pulse-Jet and Plenum Pulse Filter Bags: These bags are designed to use support cages for optimal airflow. They are sewn with a 3-needle chain stitch for seam integrity. Top constructions include snap band, flange top, ring top, soft cuffs, or raw edge. Bottom removal bags feature disc bottoms sewn with overlock or lock stitch, with optional wear strips or custom skirts to prevent abrasion.
Shaker Type Collectors: Standard Filter manufactures bags from woven materials and shakerfelts, offering various top attachments like loop, hanger, strap, and grommet to fit different shaker mechanisms. Bottom attachments can include snapbands, corded cuffs, or reinforced cuffs for durability.
Welded Filter Tubes: To prevent fine particulate bleed through needle holes, the company offers one-piece welded filter tubes, enhancing filter efficiency. These are available in materials like Polyester, Polypropylene, and Ryton®.
Custom Filter Bags: Standard Filter Corporation can produce custom filter bags and envelope style bags based on samples, descriptions, or drawings. They also offer engineering services to recommend custom materials for improved performance.
See more

Catalog excerpts

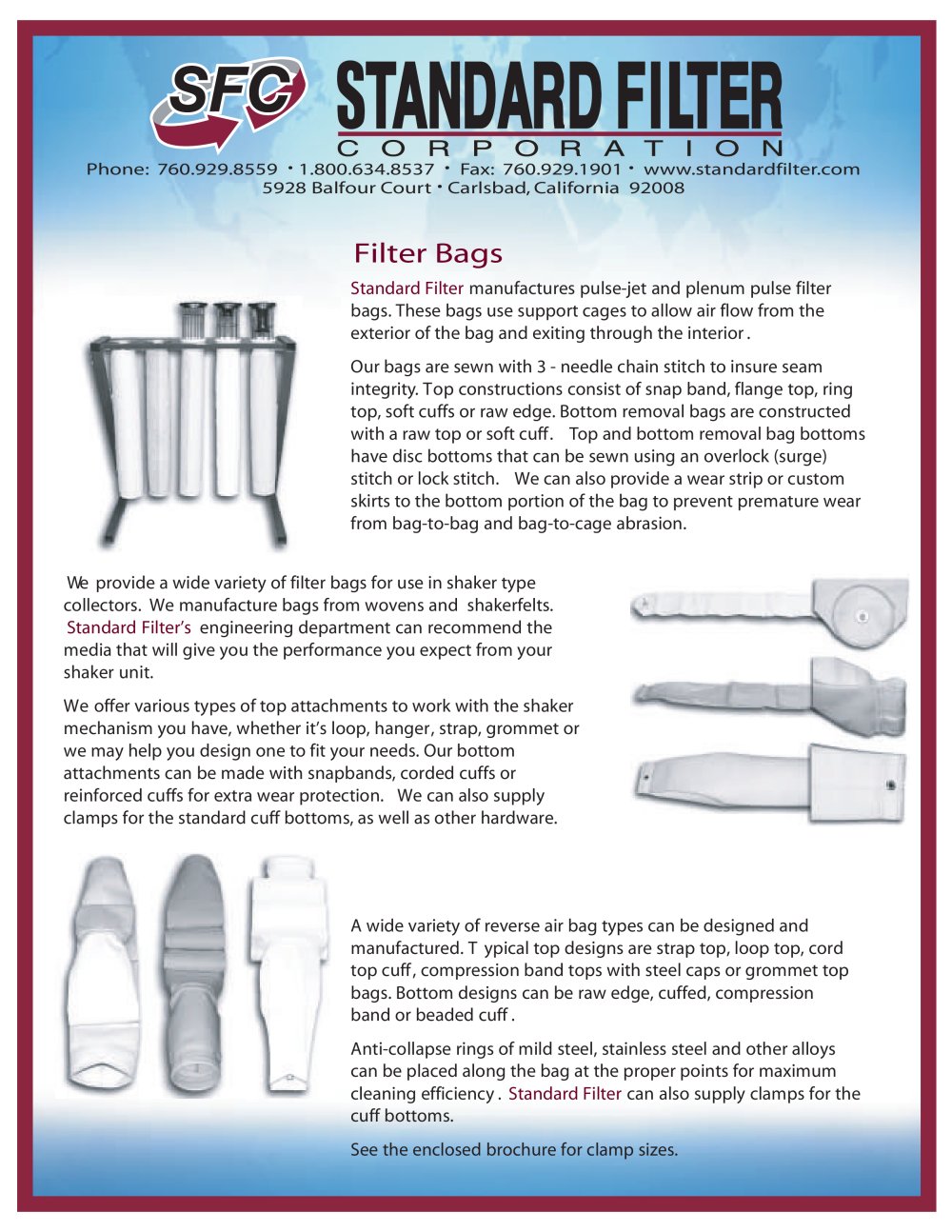

Filter Bags-2

Besides the common filter bags, Standard Filter Corporation is > capable of producing custom filter bags and envelope style bags.Since there are so many different and unique filter bags to list, with a sample, description or drawing, Standard Filter can > produce your special filter bag.We can also engineer & recommend custom materials from ourtextile mill that will improve your baghouse performance and improve problem applications. Needle holes in the vertical seam of a filter bag can be a conduitfor fine particulate bleed through. In order to give you the most efficient filter possible, Standard...

 Open the catalog to page 2
