Cartridges

Cartridges
1 / 2 PagesView full catalog

Cartridges

Product catalog summary
Overview: Standard Filter provides a diverse range of industrial and commercial cartridge filters, customizable in size and construction to meet specific requirements. These filters are available with high-temperature capabilities, fire retardant properties, PTFE membranes, and conductive and high-efficiency materials.
Materials: The document lists various materials used in filter construction, including:
  • 100% Cellulose
  • 80/20 Cellulose/Polyester
  • 50/50 Cellulose/Polyester
  • 100% Cellulose Flame Retardant
  • 100% Spun Bond Polyester
  • 100% Spun Bond Polyester with PTFE
  • 100% Polyester Hydro/Oleophobic
  • Felt (all types available upon request)
Filter Tops and Bottoms: Options include round, 14”x16” rectangular, flange screw mount, open, closed, and closed with bolt hole configurations. Various internal and external supports are available upon request.
Specifications: The document provides detailed specifications for different materials:
  • 100% Cellulose: Basis weight of 79 lbs per 3000 sq. ft., Frazier permeability of 12 CFM/Sq. Ft. at 0.5 inch H2O, caliper overall of 0.015 inches, corrugation depth of 0.032 inches, Mullen burst dry of 54 PSI, and a temperature limit of 200°F.
  • 80% - 20% Cellulose/Polyester: Basis weight of 80 lbs per 3000 sq. ft., Frazier permeability of 14 CFM/Sq. Ft. at 0.5 inch H2O, caliper overall of 0.029 inches, corrugation depth of 0.017 inches, Mullen burst dry of 50 PSI, and a temperature limit of 200°F.
  • Spun Bond Polyester: Basis weight of 8.1 lbs per 3000 sq. ft., Frazier permeability of 28-33 CFM/Sq. Ft. at 0.5 inch H2O, Mullen burst dry of 287 PSI, temperature limit of 275°F, and efficiency of 99.95% depending on application.
Contact Information: For further information, customers are encouraged to contact the sales staff at Standard Filter.
See more

Catalog excerpts

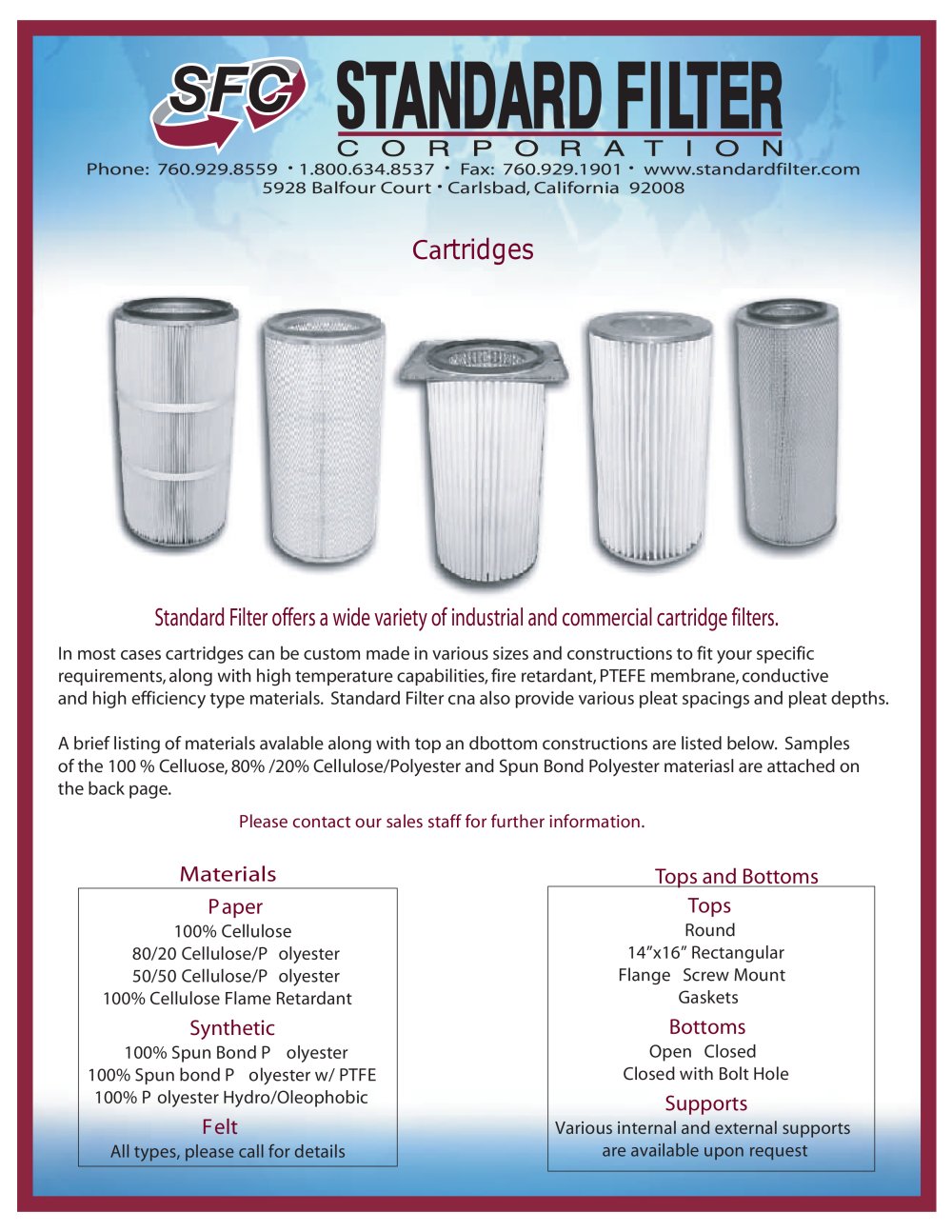

Cartridges-1

In most cases cartridges can be custom made in various sizes and constructions to fit your specific requirements, along with high temperature capabilities, fire retardant, PTEFE membrane, conductive and high efficiency type materials. Standard Filter cna also provide various pleat spacings and pleat depths.A brief listing of materials avalable along with top an dbottom constructions are listed below. Samplesof the 100 % Celluose, 80% /20% Cellulose/Polyester and Spun Bond Polyester materiasl are attached on the back page. Please contact our sales staff for further information. Materials Tops and Bottoms Paper Tops > 100% Cellulose80/20 Cellulose/Polyester 50/50 Cellulose/Polyester100% Cellulose Flame Retardant Round14x16Ԕ RectangularFlange Screw MountGaskets Synthetic Bottoms > 100% Spun Bond Polyester100% Spun bond Polyester w/ PTFE100% Polyester Hydro/Oleophobic Open ClosedClosed with Bolt Hole Supports Felt > Various internal and external supportsare available upon request All types, please call for details size="-2">
