AQ70 Cylinder Catalogue
10Pages

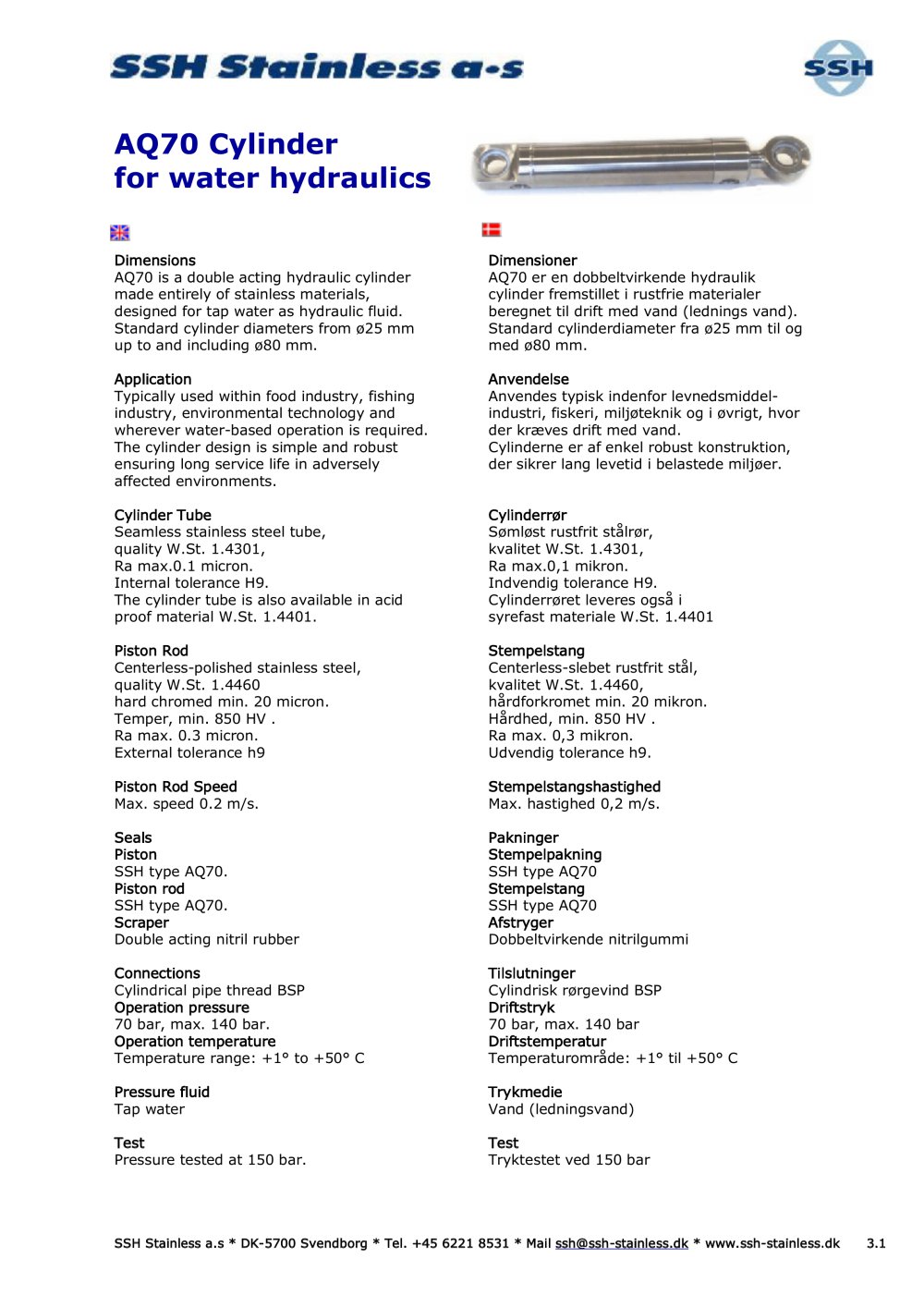

AQ70 Cylinder for water hydraulics Dimensions Cylinder Tube Operation pressure Operation temperature Pressure fluid AQ70 is a double acting hydraulic cylinder made entirely of stainless materials, designed for tap water as hydraulic fluid. Standard cylinder diameters from ø25 mm up to and including ø80 mm. Typically used within food industry, fishing industry, environmental technology and wherever water-based operation is required. The cylinder design is simple and robust ensuring long service life in adversely affected environments. Seamless stainless steel tube, quality W.St. 1.4301, Ra max.0.1 micron. Internal tolerance H9. The cylinder tube is also available in acid proof material W.St. 1.4401. Centerless-polished stainless steel, quality W.St. 1.4460 hard chromed min. 20 micron. Temper, min. 850 HV . Ra max. 0.3 micron. External tolerance h9 Max. speed 0.2 m/s. SSH type AQ70. SSH type AQ70. Double acting nitril rubber Cylindrical pipe thread BSP 70 bar, max. 140 bar. Temperature range: +1° to +50° C Tap water AQ70 er en dobbeltvirkende hydraulik cylinder fremstillet i rustfrie materialer beregnet til drift med vand (lednings vand). Standard cylinderdiameter fra ø25 mm til og med ø80 mm. Anvendes typisk indenfor levnedsmiddelindustri, fiskeri, miljøteknik og i øvrigt, hvor der kræves drift med vand. Cylinderne er af enkel robust konstruktion, der sikrer lang levetid i belastede miljøer. Sømløst rustfrit stålrør, kvalitet W.St. 1.4301, Ra max.0,1 mikron. Indvendig tolerance H9. Cylinderrøret leveres også i syrefast materiale W.St. 1.4401 Centerless-slebet rustfrit stål, kvalitet W.St. 1.4460, hårdforkromet min. 20 mikron. Hårdhed, min. 850 HV . Ra max. 0,3 mikron. Udvendig tolerance h9. Max. hastighed 0,2 m/s. Dobbeltvirkende nitrilgummi Cylindrisk rørgevind BSP 70 bar, max. 140 bar Temperaturområde: +1° til +50° C Vand (ledningsvand) Tryktestet ved 150 bar SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.

AQ70 Cylinder for water hydraulics Position Sensoring Equipment Magnetic Field Sensor Positioneringsudstyr Magnetfelt sensor For further information see page 4.1 or enter our homepage: www.ssh-stainless.dk/ Magnetic Field Sensor For yderligere information se side 4.1 eller besøg vores hjemmeside: www.ssh-stainless.dk/ Magnetic Field Sensor Integrated Sensors Indbygget positionsføler For further information see page 5.1 or enter our homepage: www.ssh-stainless.dk/ Special Cylinders. For yderligere informationer se side 5.1 eller besøg vores hjemmeside: www.ssh-stainless.dk/ Special Cylinders...

Standard ends for cylinder and piston rod Type AQ70 The ends and bearings for the cylinder and piston rod may be combined according to requirements. De illustrerede cylinder og stempelstangs ophæng kan frit kombineres i henhold til ønske. If the chosen combination is not to be found under the shown cylinder types, you can either combine the shown ends for cylinders or contact us for further information. Hvis den ønskede kombination ikke findes under de viste cylindertyper, kan man enten kombinere de viste cylinderophæng eller kontakte os for yderligere information. Cylinder ends SSH...

x1: Inside diameter : 50 mm x2: Piston rod : 30 mm x3: Stroke : 200 mm Ordering code: AQ70 VZ 50/30*200 x1: Indvendig diameter : 50 mm x2: Stempelstang : 30 mm x3: Slaglængde : 200 mm Ordre kode: AQ70 VZ 50/30*200 SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-s

x1: Inside diameter : 50 mm x2: Piston rod : 30 mm x3: Stroke : 200 mm Ordering code: AQ70 LL 50/30*200 x1: Indvendig diameter : 50 mm x2: Stempelstang : 30 mm x3: Slaglængde : 200 mm Ordre kode: AQ70 LL 50/30*200 SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-sta

x1: Inside diameter : 50 mm x2: Piston rod : 30 mm x3: Stroke : 200 mm Ordering code: AQ70 NN 50/30*200 x1: Indvendig diameter : 50 mm x2: Stempelstang : 30 mm x3: Slaglængde : 200 mm Ordre kode: AQ70 NN 50/30*200 SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-s

x1: Inside diameter : 50 mm x2: Piston rod : 30 mm x3: Stroke : 200 mm Ordering code: AQ70 HD 50/30*200 SSH S x1: Indvendig diameter : 50 mm x2: Stempelstang : 30 mm x3: Slaglængde : 200 mm Ordre kode: AQ70 HD 50/30*200 tainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-s

x1: Inside diameter : 50 mm x2: Piston rod : 30 mm x3: Stroke : 200 mm Ordering code: AQ70 FD 50/30*200 SSH S x1: Indvendig diameter : 50 mm x2: Stempelstang : 30 mm x3: Slaglængde : 200 mm Ordre kode: AQ70 FD 50/30*200 tainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-s

Magnetic Field Sensor Cylinder with internal, piston fitted magnet Cylinder med indvendigt monteret magnet SR20 and AQ70 hydraulic cylinders with built-in magnet for position sensoring. SR20 og AQ70 hydrauliske cylindre med indbygget magnet for positionering. The BMF 305 sensor is easily fitted externally on the cylinder tube by means of a stainless steel clip. If required, several of sensors may be fitted onto the cylinder. Til montering af BMF 305 sensoren hører et rustfrit spændebånd, som er let at fastgøre udvendigt på cylinderrøret. Der kan monteres flere sensorer på cylinderen, alt...

Spherical Bearings Sfæriske ledlejer Spherical bearings have a W.St. 1.4401 ball and a POM outer ring. Sfæriske ledlejer fremstilles med kugle i W.St. 1.4401 med yderring i POM. SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-stainless.dk
