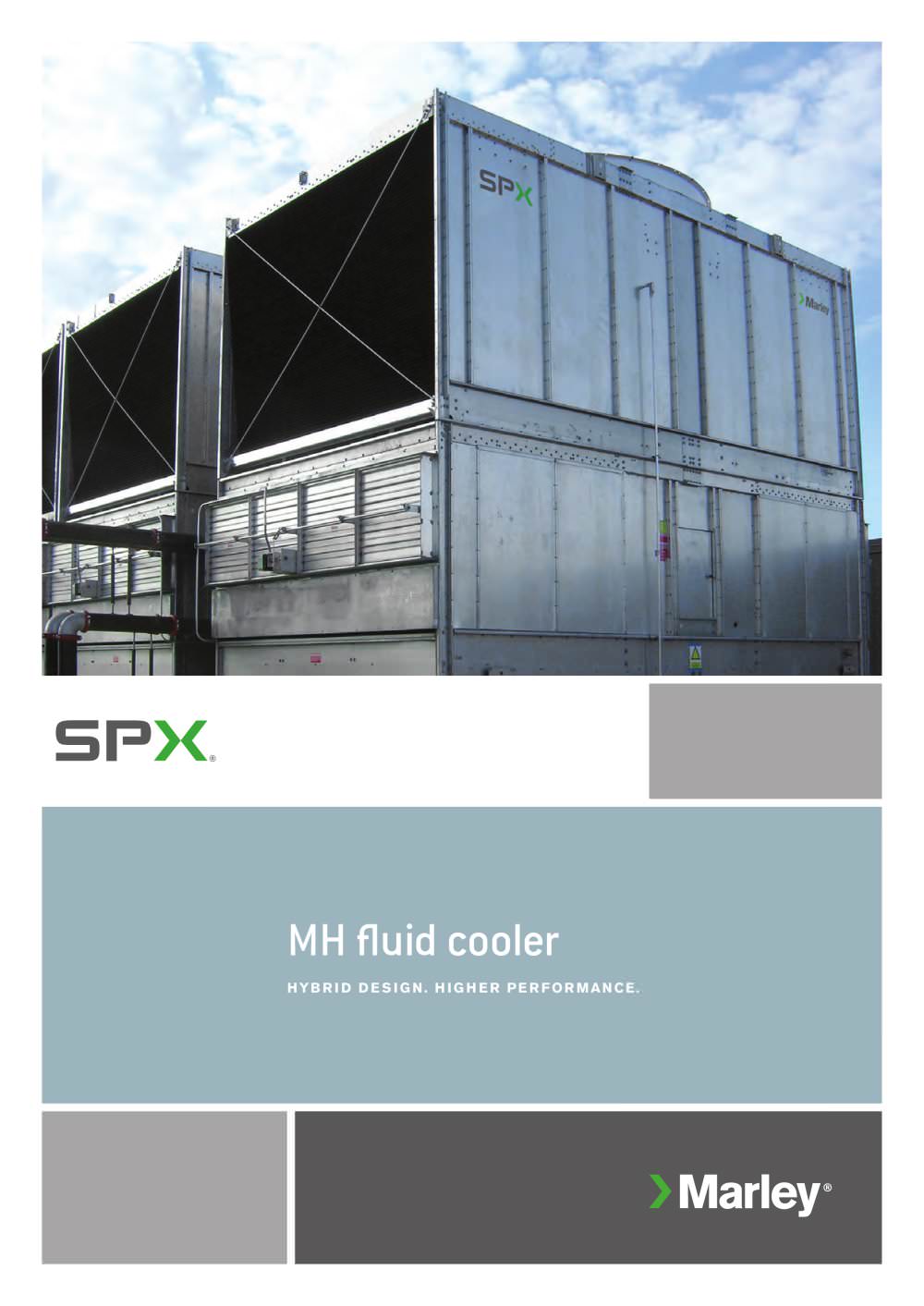

Marley MH Fluid Cooler
8Pages

MH fluid cooler HYB R I D D E S IG N. H IG H E R PE R FOR MANCE.

Hybrid Design. Utilizing a combination of evaporative fill media and prime surface coil(s), the MH Fluid Cooler offers significantly improved performance over conventional closed circuit coolers. Water Distribution System • rocess fluid is pumped internally P through the coil MX75 Fill H • eat is transferred from the process Finned Tube Bundle (optional) fluid to the recirculating water as it flows Air In over the outside of the coil tubes • he heated recirculating water is T Coil Louvers Warm Air pumped from the collection basin to the gravity distribution basin E • venly distributed over...

The Right Choice. The Marley MH Fluid Cooler is one of the most energy efficient closed circuit systems on the market and a great choice for closed loop Industrial and HVAC applications. Maximum Efficiency Hybrid design and high efficiency components deliver consistent, reliable cooling with low input power. Space Saving Footprint With higher capacity per footprint than conventional closed circuit designs, the MH Fluid cooler is a great fit for applications with space restrictions. Unmatched Reliability Heavy duty construction backed by our 5-year mechanical warranty helps keep your process...

Higher Performance. CoolBoost Technology • Utilizes high-efficiency components and optimum fluid paths to boost cooling dramatically when compared to forced-draft units with comparable footprint • Requires up to 35% less process fluid to fill the coil • Weight is reduced by 15% Strategic Coil Location Coil • Less risk of hot discharge air recirculation • Easier to access and clean Marley MH Fluid Cooler Other Leading Fluid Cooler

Maximum Efficiency. Need Efficient Closed-Loop Cooling? The MH Fluid cooler provides Single-Flow Models Models exceeding ASHRAE just that, with unit capacities efficiency requirements. Find the right tower for your application at spxcooling.com/update * ominal capacity based on 0.155 m3/hr per kW at 35˚C Hot Water, 29.5˚C Cold Water, 25.5˚C Wet-Bulb. N Varies depending on configuration. (available option)

Maximum Marley. Double-Flow Models Models * ominal capacity based on 0.155 m3/hr per kW at 35˚C Hot Water, 29.5˚C Cold Water, N 25.5˚C Wet-Bulb. Varies depending on configuration. (available option)

Marley MH fluid cooler additional MH FLUID COOLER Other SPX COOLING TECHNOLOGIES products SPX Cooling Technologies offers a full line of industry leading products – with unmatched support and innovation designed to help you get the most out of your cooling process. Take a look at these other Marley products at spxcooling.com. For further information about the MH Fluid Cooler – including engineering schematics, data, layout requirements and more – download these MHF publications and others at spxcooling.com. R EAD AN D U N D E R STAN D TH I S MAN UAL PR IOR TO OPE RATI NG OR S E RVICI NG TH...
