Introduction
Atmospheric Heat Vaporization Systems (AHVS) offer a more efficient method for LNG regasification, significantly reducing emissions and natural gas consumption while generating pure water.

Environmental Benefits
AHVS can reduce CO2 and NOX emissions by up to 90% compared to traditional combustion-only systems. Additionally, these systems can save 20% to 90% of the energy required by conventional heating methods.

Water Generation
The heat transfer process in AHVS condenses atmospheric water, providing up to 1 million gallons of water daily to local communities.

System Configurations
SPX Cooling Technologies offers various innovative configurations, including direct and indirect contact heating towers and fin-fan heat exchangers, to maximize atmospheric heat transfer and optimize energy consumption.

Design Options
SPX provides custom-designed systems tailored to specific terminal needs, considering factors like cost, wind conditions, and expandability. Options include direct and indirect contact tower designs with vertical fan and counterflow configurations.

Energy Savings
Estimated gas savings vary by location, with potential savings of 74% on the Gulf Coast U.S., 88% in the Southeast U.S., 67% in Italy, 40% in Western UK, and 29% in Eastern Canada.

Conclusion
SPX Cooling Technologies, a leader in heat transfer technology, offers comprehensive solutions for optimizing LNG import terminals, enhancing performance while conserving natural resources.

Contact Information
For more information, contact SPX Cooling Technologies at 800 462 7539 or visit www.spxcooling.com.

Catalog excerpts

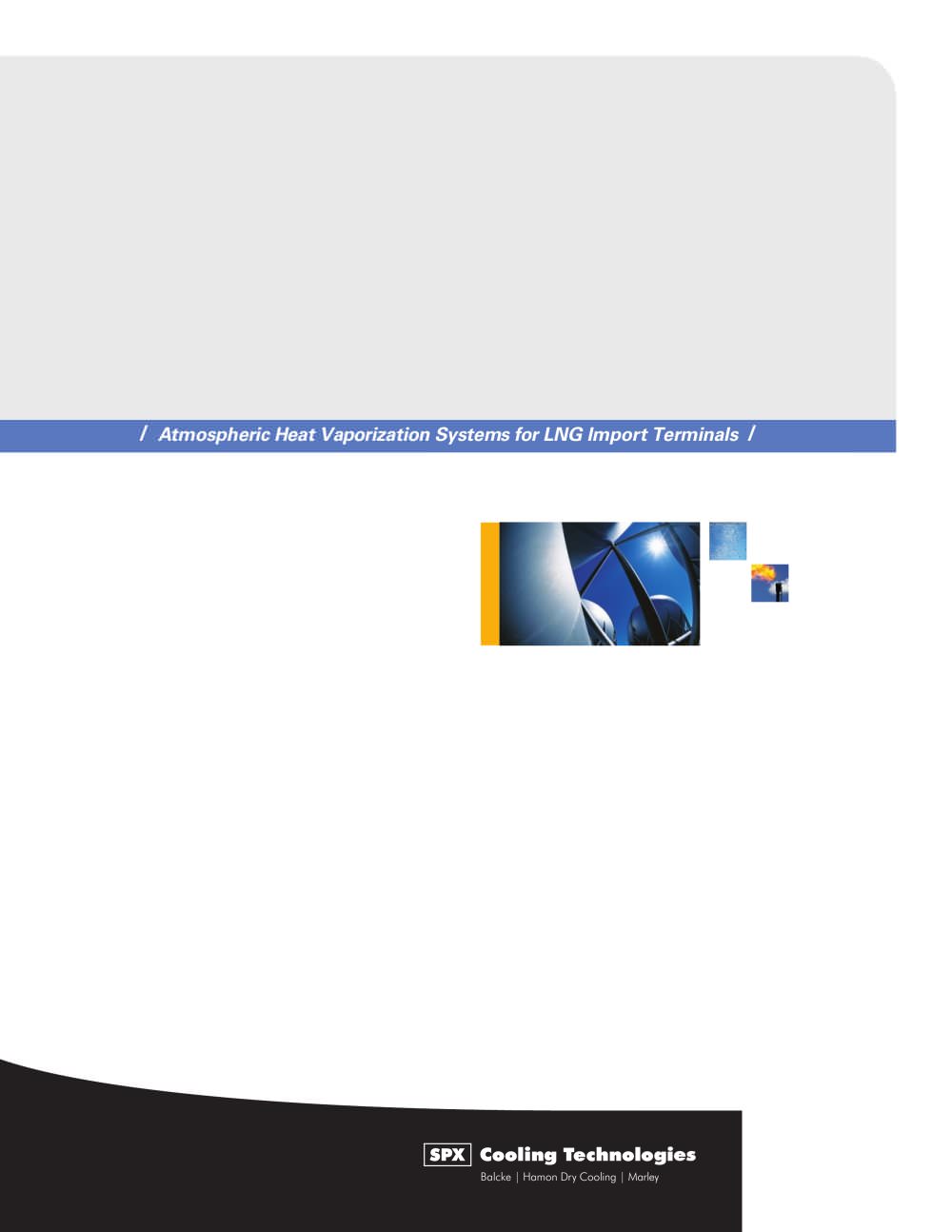

/ > Atmospheric Heat Vaporization Systems for LNG Import Terminals / > Balcke | Hamon Dry Cooling | Marley size="-2">

Open the catalog to page 1

Introducing dramatically more efficient regasification. Plus an innovative source for pure water. >

Open the catalog to page 2

Compared to traditional combustion-only systems, Atmospheric Heat Vaporization Systems can reduce CO The heat transfer process condenses water from the atmosphere, delivering up to 1 million gallons of water a day to the local community.Any major oil company or natural gas marketer planning or operating an LNG terminal can expect to save 20% 90% of the energy required by traditional methods of heating. > 2 and NO > X emissions by as much as 90%. >

Open the catalog to page 3

Unlike traditional gas-fired only methods, Atmospheric Heat Vaporization Systems utilize heat from the atmosphere extracted via a direct or indirect heat exchanger, resulting in significantly less fuel consumption. >

Open the catalog to page 4

VAPORIZER GASEOUS OUTPUT TO PIPELINELNG HEATINGTOWERGAS FIREDHEATERCONDENSED WATER FROM ATMOSPHERE > VAPORIZER GASEOUS OUTPUT TO PIPELINELNG GAS FIREDGLYCOL* HEA TER > CONDENSED WATER FROM ATMOSPHEREFIN-FAN HEATEXCHANGER > APORIZER GASEOUS OUTPUT TO PIPELINELNGHEATINGTOWERGAS FIREDGLYCOL* HEATERCONDENSED WATER FROM A GLYCOL* HEATING WATER HEAT EX CHANGER > AIR HEATINGTOWER BLOWER LNG STORAGE T ANK VAPORIZER > WATERTANKCOMBUSTIONCHAMBERSPARGER GASEOUS OUTPUT TO PIPELINE HEATING T OWER BASINCONDENSED WATERFROM ATMOSPHERE FUEL - NG >

Open the catalog to page 5

LNG VAPORIZATION SYSTEM AUDITS SPX Cooling Technologies conducts sizing, selection, plant modeling and environmental analyses to custom design and build an Atmospheric Heat Vaporization System that optimizes your operations. DIRECT CONTACT OR INDIRECT CONTACT TOWER DESIGNS FOR MOST TERMINAL SITES Whether your requirements focus on cost, wind conditions or future expandability, SPX Cooling Technologies offers patented tower designs to satisfy the unique needs of your import terminal. > INDIRECT CONTACT DESIGN DIRECT CONTACTVERTICAL FANCOUNTERFLOW DESIGNDIRECT CONTACTWIND ADAPTEDCOUNTERFLOW DESIGNDIRECT...

Open the catalog to page 6

Learn more about Atmospheric Heat Vaporization Systems.Call 800 462 7539 or visit www.spxcooling.com today. >

Open the catalog to page 7
