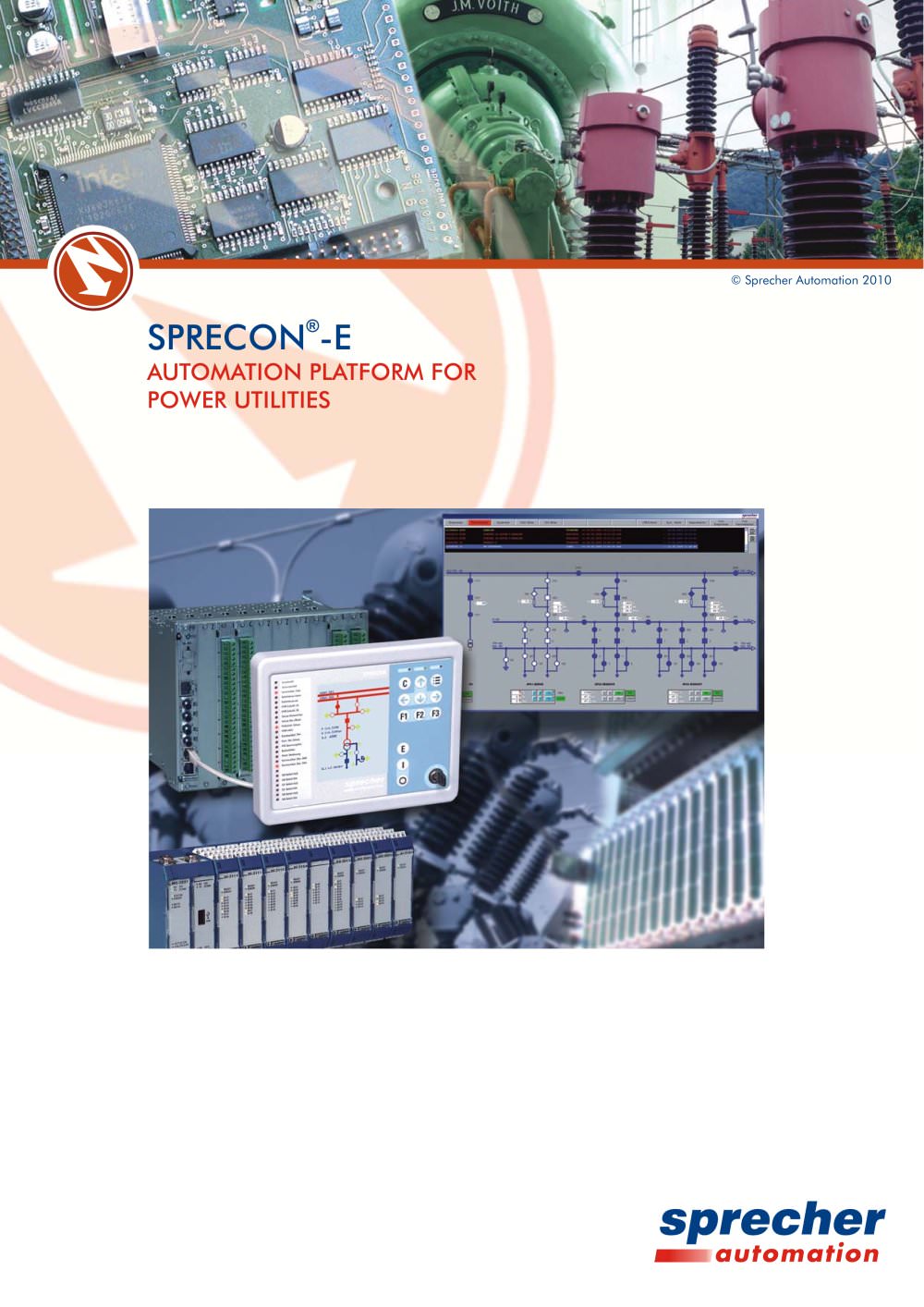

SPRECON®-E AUTOMATION PLATFORM FOR POWER UTILITIES © Sprecher Automation 2010

® SPRECON -E IS APPLIED AS SPRECON SPRECON-E-C Multifunctional devices for automation, control and remote control SPRECON-E-T3 Compact RTUs for automation and remote control SPRECON-E-P Protection devices and one-box solutions (combined protection and control) -V460 Control center system SPRECON-E is the result of our long-term experience in the areas of power system engineering as well as control and automation. SPRECON-E can be organised decentralised or centralised. All system data is processed either close to the point of data generation or at a central location in the power system,...

A full-graphical HMI guarantees comfortable, clear and secure operating of the power system: process visualisation, archiving functions for events, alarms, measured-values and diagnostics of power system equipment as well as reporting and hardcopy functions. As an extended version, the HMI workstation can be also applied as a control center for supply networks. The station level, which is higher-levelled than the decentral control units, can be also designed as a redundant system. As applied to the complete SPRECON-E platform, the SPRECON-E station computer is also based on a modular...

4 SPRECON -E SYSTEM ARCHITECTURE ® © Sprecher Automation 2010 System control center (SPRECON-V460) STATION LEVEL BAY LEVEL PROCESS LEVEL (HV/MV) Event printer SPRECON-E-Cx4 SCADA LEVEL HMI workstation (SPRECON-V460) System control center (external system) Broad (parallel) Serial SPRECON-E-Cx4 SPRECON-E-Cx6 Available topologies: ring, star or bus IEC 61850 or IEC 60870-5-101/-104 Time synchronisation GPS, DCF SMS notification Maintenance Mobile access via PDA Remote Mainten. AVR Prot. dev. SPRECON-E-T3 Protect. devices compact RTUs SPRECON-E-P-D6: protection and control device or:...

The concept of the SPRECON-E automation, protection and remote control system is based on technical and economical considerations in order to provide optimal solutions by simultaneously sustaining the overall system concept. All devices are based on a uniform and modular system architecture in terms of hardware, data structures, communication, logical functions as well as engineering and service tools. They are distinguished by their rack sizes as well as their application-related functions. Due to their high scalability, all automation, protection and remote control devices can be applied...

6 © Sprecher Automation 2010 ® SPRECON -V460 PROCESS VISUALISATION Visualisation of a hydroelectric power plant (turbine) Visualisation of a substation SPRECON-V460 also provides the necessary features for follow-up projects. All functions can be copied and easily reapplied to other projects. In the areas of HMI and process visualisation, Sprecher Automation has put the main emphasis on the design of the graphical user interface - especially on user guidance, general usability as well as on the design of the various functions. The system additionally provides an interface to the Internet...

7 © Sprecher Automation 2010 SPRECON-E ENGINEERING CENTER Administration center for all relevant automation objects SPRECON-E CONFIGURATOR Configuration and component settings of control and protection devices SPRECON-E DESIGNER Parameterisation of the application software SPRECON-E PLC-DESIGNER Implementation of logic functions (according to IEC 61131-3) SPRECON-E COMM-3 Settings for protection devices and combined control and protection devices (one-box solutions, OBS) SPRECON-E SERVICE PROGRAM Commissioning and maintenance with loading and test functions SPRECON-V460 EDITOR Design and...

8 SPRECON -E STATION CONTROL ® © Sprecher Automation 2010 Configuration example of a station control system for a substation with IEC 61850 (or IEC 60870-5-104) As a station control system, SPRECON-E can be applied to switchgears and substations of all types and voltage levels. The flexible system concept and the wide-ranging scalability for the components allow practice-oriented, reliable and cost-efficient configurations. As a result, adaptions to specific requirements can be easily accomplished. Beside implementation into new plants, SPRECON-E is also perfectly qualified for retrofit due...

9 SPRECON -E REMOTE CONTROL ® © Sprecher Automation 2010 Configuration example of a telecontrol network with SPRECON-E-C devices and compact RTUs (SPRECON-E-T3) Ethernet IEC 60870-5-104 Remote maintenance VPN / GSM / PSTN / leased line SPRECON-E station control IEC 61850 / IEC 60870-5-104 (fibre-optic) SPRECON-E-C gateway 2 SPRECON-E-C gateway 1 SPRECON-E-C bay computers SPRECON-V460 system control center (redundant) SPRECON-E-C: front ends SPRECON-E-C remote terminal units SPRECON-E-C data concentration units IEC 60870-5-101/-104 or other protocols SPRECON-E-T3 compact RTUs SPRECON-E-T3...

10 SPRECON -E POWER PLANT CONTROL ® © Sprecher Automation 2010 Configuration example of a (redundant) power plant control system with connection to station control of the local power system Ethernet IEC 60870-5-104 (fibre-optic) Remote maintenance IEC 60870-5-104 (fibre-optic) SPRECON-E-C: machine 1 I/Os, turbine control, mechanical protection, etc. IEC 60870-5-101/-104 system control center SPRECON-E-C dam gates SPRECON-E-C machine 2 - n SPRECON-E station control IEC 61850 / IEC 60870-5-104 (fibre-optic) SPRECON-E-C power plant management (redundant) SPRECON-E-C front end SPRECON-E-C bay...

11 SPRECHER AUTOMATION - THE EXPERT FOR YOUR TURNKEY SOLUTION Planning and engineering Experienced engineers of Sprecher Automation perform professional consultancy as well as optimal project management and engineering. Software engineering Project-specific configuration of protection and control systems as well as parameterisation of the application software is accomplished by experts with long-term experience gained from over 1000 automation system projects of various types. Assembly and installation An highly qualified team installs the system from high-voltage cables to optical fibres....
