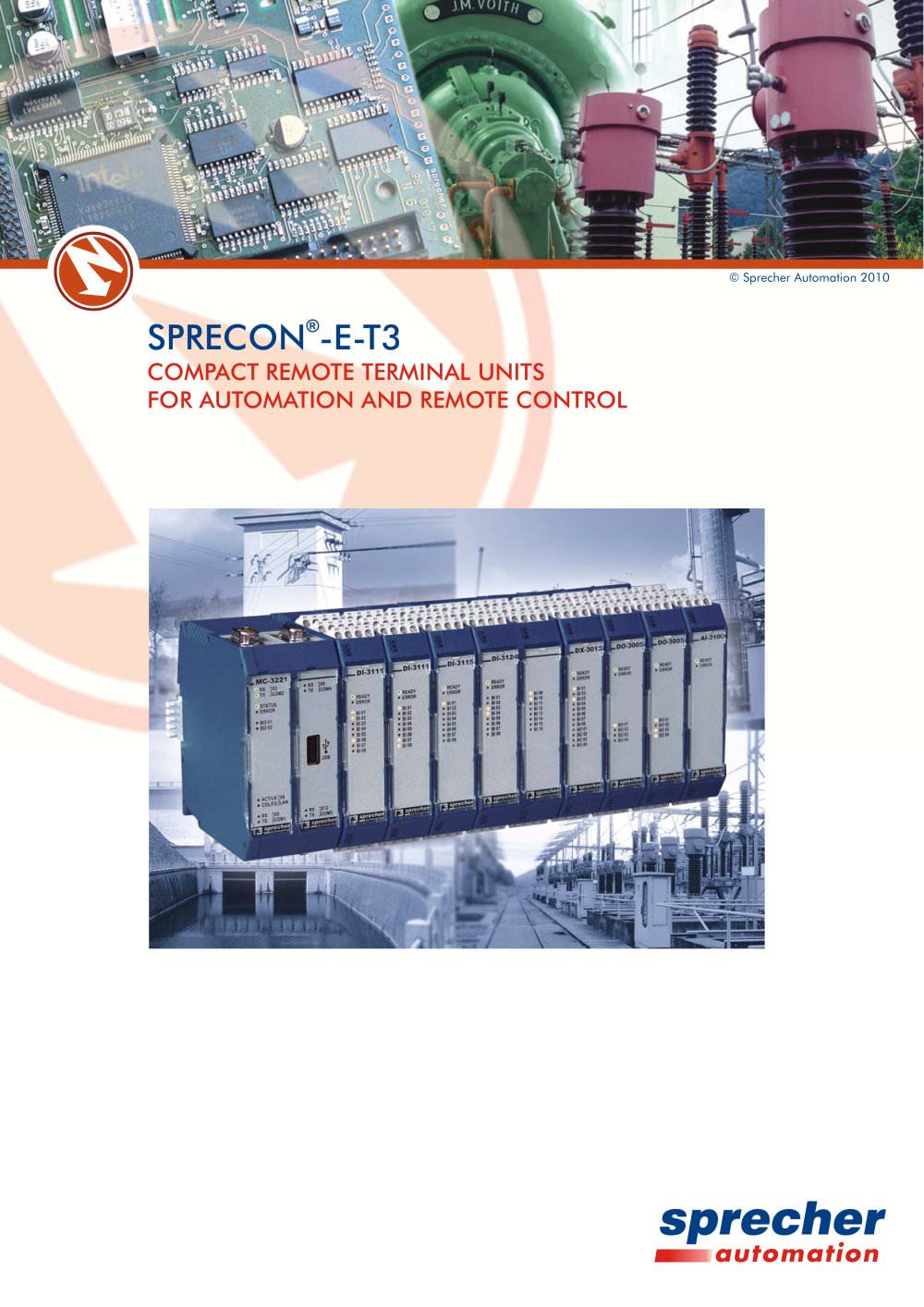

® SPRECON -E-T3 COMPACT REMOTE TERMINAL UNITS FOR AUTOMATION AND REMOTE CONTROL © Sprecher Automation 2010

© Sprecher Automation 2010 ® SPRECON -E-T3 SPRECON -V SCADA Cx6 T3 T3 T3 IEC 60870-5 -101/-104 or other protocols SPRECON -E automation and remote control system Remote control systems have become essential for supervisory control and monitoring of separated or geographically spread processes regarding energy distribution or industrial networks. Depending on the field of application, various requirements have to be met regarding: Various inputs and outputs Process signals Environmental conditions Communication protocols Communication technology As well as essential logical functions The...

Access via Web browser on a PC or a PDA COMPACT REMOTE TERMINAL UNITS FOR AUTOMATION AND REMOTE CONTROL 60870-5-104 SPRECON-E-T3 compact RTUs T3 T3 T3 TECHNICAL DATA (excerpt) Performance characteristics Max. number of inputs/outpus per module - Up to 16 digital inputs 24/48-60/110/220 V DC time resolution: 1ms - Up to 16 digital outputs 250 V AC/DC - Up to 8 digital control outputs 250 V AC/DC - Up to 8 analog inputs 0 to ±20 mA / 0 to ±10 V Up to 8 I/O modules per CPU Power supply - 24 V DC to 48 V DC, 60 V DC or 110 to 250 V DC and 110 to 230 V AC / 50/60 Hz Modules (W x H x D) 22,5 x...

12.1.101.30en C © Sprecher Automation 2010 Sprecher Automation, the Sprecher Automation logo and any alternative version thereof are trademarks and service marks of Sprecher Automation. Other names mentioned, either registered or not, are the property of their respective companies. Any liability regarding the correctness and completeness of information and/or specifications in the brochure is excluded. All rights are reserved to alter specifications, make modifications, or terminate models without prior notice. The specifications of a model may vary from country to country. Sprecher...
