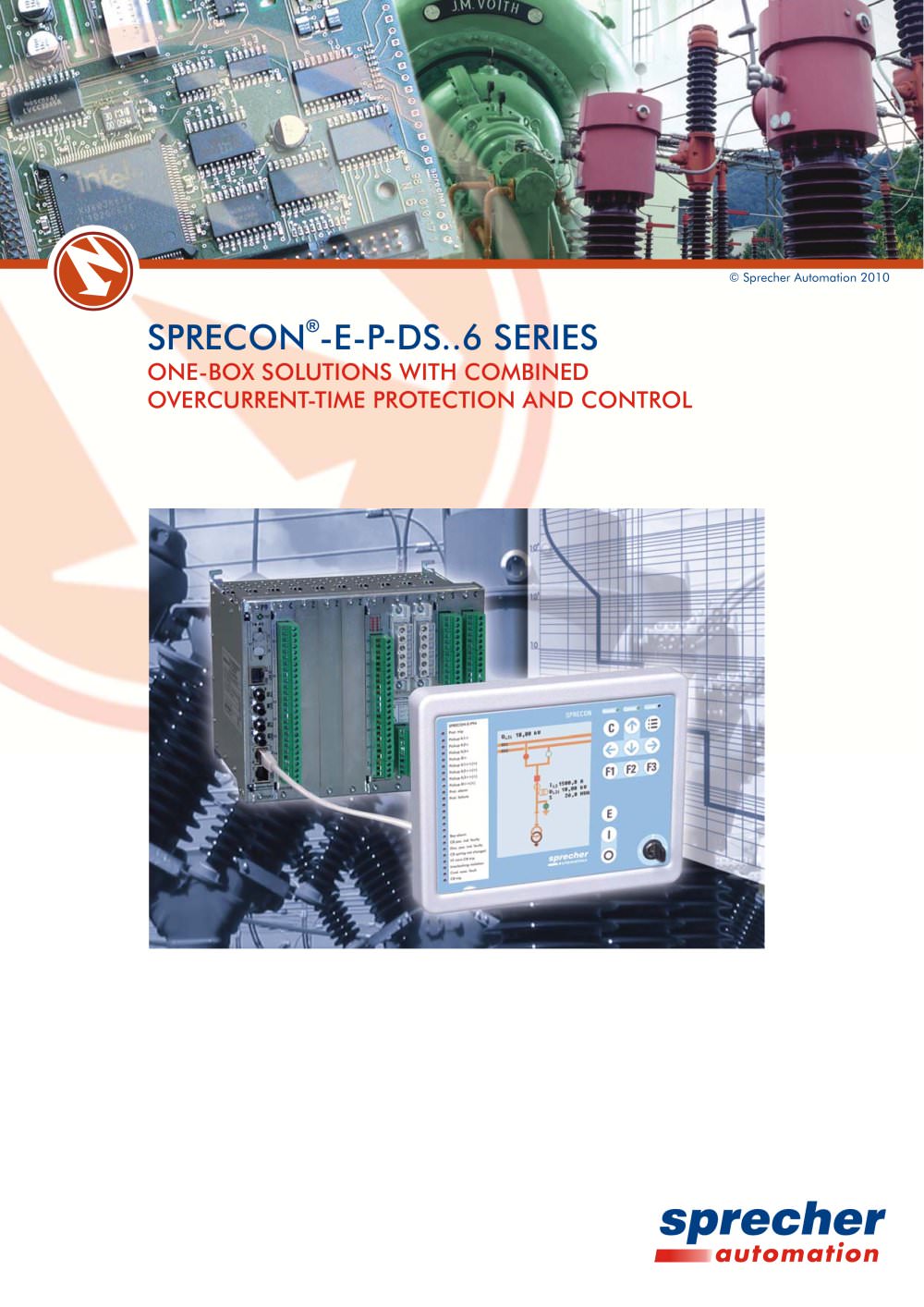

© Sprecher Automation 2004 ® SPRECON -E-P-DS..6 SERIES ONE-BOX SOLUTIONS WITH COMBINED OVERCURRENT-TIME PROTECTION AND CONTROL © Sprecher Automation 2010

Introduction The SPRECON -E-P-DS..6 series consists of one-box solutions for protection and control, which allow protection of primary equipment by simultaneously accomplishing control and monitoring functions in electric power sytems. The multifunctional SPRECON -E-P-DS..6 devices can be used for various protection and control applications due to the wide range of implemented functions. They feature a clear separation of control and protection functions which allows either combined or separated operations of control and protection functions: The devices are especially qualified for the...

Disturbance data evaluation Tripping characteristics (overcurrent-time protection) 0,1 1 10 102 3 10 2 10 -2 10 t /s a 1 10 100 I / IB I > L I >> L I >>> L I >>>> L t> t>> t>>> t>>>> TECHNICAL DATA (excerpt) Communication IEC60870-5-101/-103/-104 IEC61850 RS232, RS422/485, fibre-optic,10/100 Mbit Ethernet 2 additional optical Ethernet interfaces for optical redundant ring Connection via leased or dialup line Wireless communication with external GSM or wireless modem Integration of stand-alone devices via station bus (counter, metering devices, protection relays, AVR, Petersen coil...
