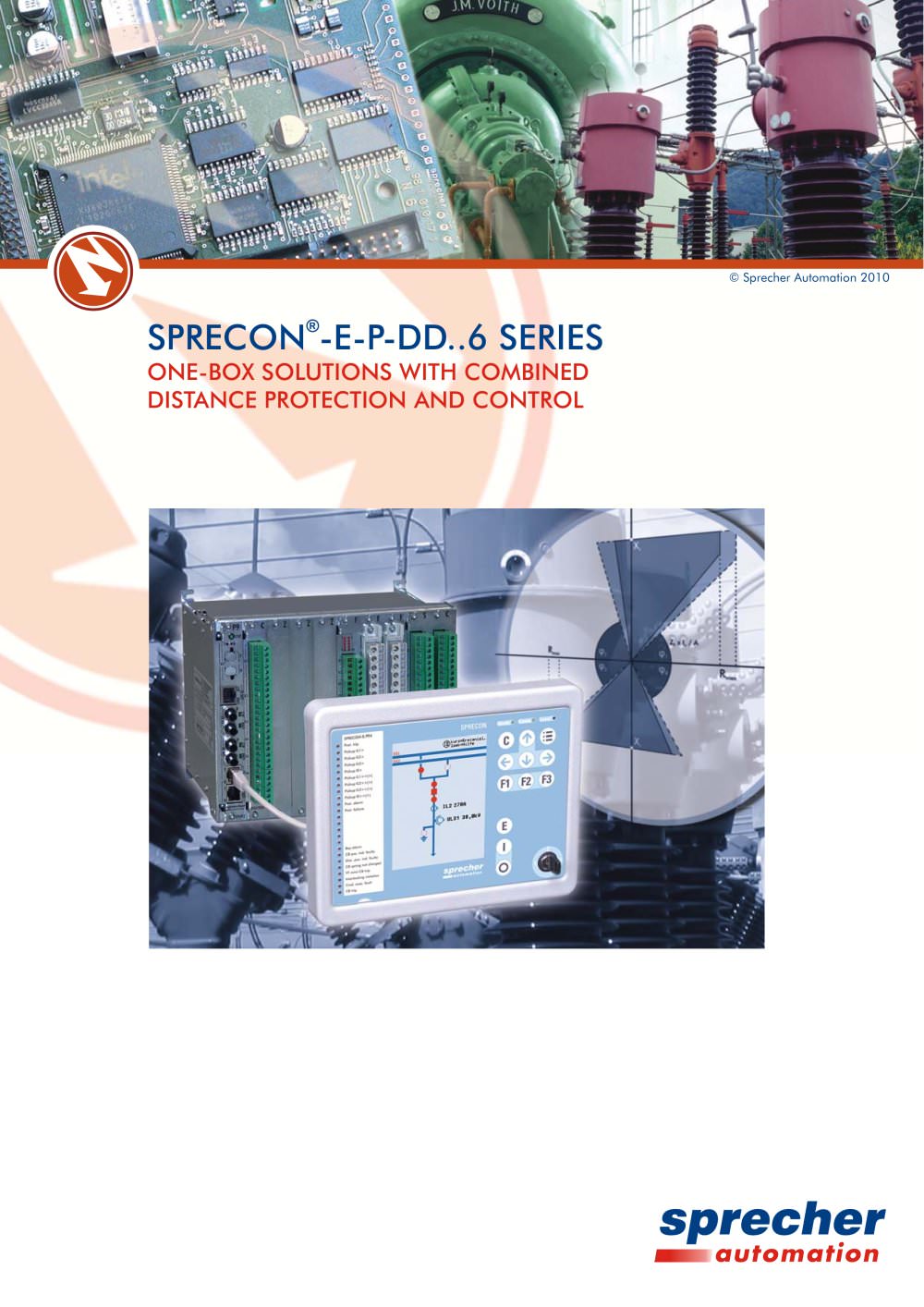

© Sprecher Automation 2004 ® SPRECON -E-P-DD..6 SERIES ONE-BOX SOLUTIONS WITH COMBINED DISTANCE PROTECTION AND CONTROL © Sprecher Automation 2010

Introduction The SPRECON -E-P-DD..6 devices are one-box solutions for protection and control, which allow protection of primary equipment by simultaneously accomplishing control and monitoring functions in electric power sytems. The multifunctional SPRECON -E-P-DD..6 devices can be used for various protection and control applications due to the wide range of implemented functions. They feature a clear separation of control and protection functions which allows either combined or separated operations of control and protection functions: The implementation of standard and proprietary...

Disturbance data evaluation jX R ö2 ö3 ö1 ö4 Xv Xr Rmax Rmax Load Load I at operating voltage (Z<) min Z x I / A s n Starting range (distance protection) TECHNICAL DATA (excerpt) Protection functions Communication IEC60870-5-101/-103/-104 IEC61850 RS232, RS422/485, fibre-optic,10/100 Mbit Ethernet 2 additional optical Ethernet interfaces for optical redundant ring Connection via leased or dialup line Wireless communication with external GSM or wireless modem Integration of stand-alone devices via station bus (counter, metering devices, protection relays, AVR, Petersen coil controller, etc.)...
