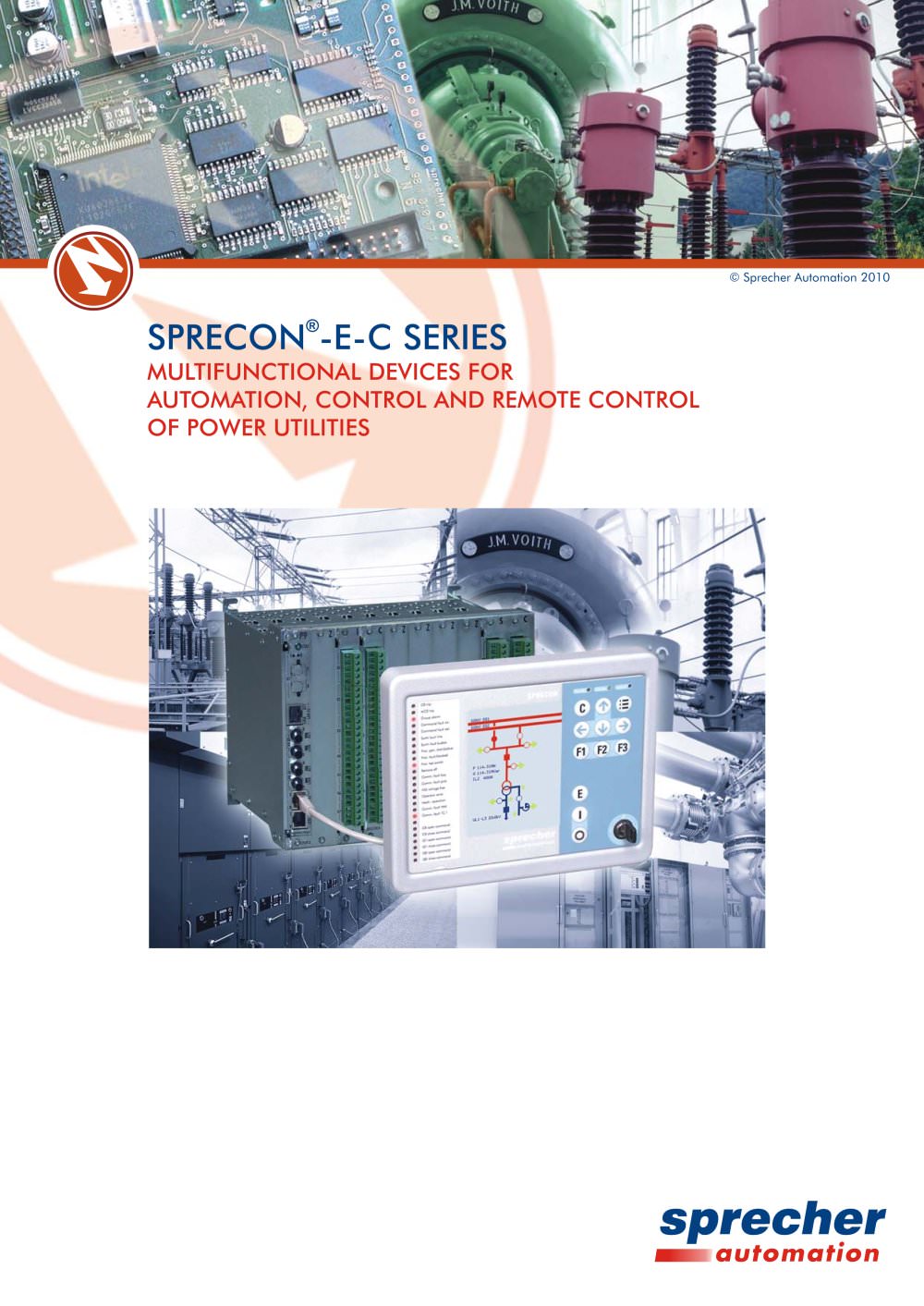

© Sprecher Automation 2004 SPRECON®-E-C SERIES MULTIFUNCTIONAL DEVICES FOR AUTOMATION, CONTROL AND REMOTE CONTROL OF POWER UTILITIES © Sprecher Automation 2010

© Sprecher Automation 2010 ® SPRECON -E-C SERIES Areas of application The SPRECON-E-C series is especially qualified for the following application areas: ·Electric power supply - High voltage switchgears - Medium voltage switchgears - Distribution systems - Caloric power plants - Hydroelectric power plants - Traction power supply - Wind power stations - Industrial networks ·Municipal utilities - Water supply - Sewage systems - Gas and oil supply - District heating - Tunnels System control center Cx6 Ethernet 10/ 100Mbit Gx2 gateway AVR IEC 61850 / IEC 60870-Ò SPRECON -E automation, control...

© Sprecher Automation 2010 SPRECON -V Ò Protection relay STATION LEVEL Cx2 60870-5-104 Px4 System control center One-box solution BAY LEVEL TECHNICAL DATA (excerpt) Performance characteristics ·Max. number of inputs/outputs per slot - Up to 20 digital inputs 24 to 220 V DC and 110 to 230 V AC / 50/60 Hz - Up to 20 digital outputs 250 V AC/DC - Up to 10 digital control outputs 250 V AC/DC - Up to 8 analog inputs or 4 outputs 0 to ±20 mA / 0 to ±10V - Up to 8 PT100 inputs for 2-wire or 4-wire circuit - Up to 8 measurement inputs - 1 A, 2 A, 5 A or 10 A - 50 V to 130 V - 16,7/50 Hz - Up to 32...

12.1.101.21en F © Sprecher Automation 2010 Sprecher Automation, the Sprecher Automation logo and any alternative version thereof are trademarks and service marks of Sprecher Automation. Other names mentioned, either registered or not, are the property of their respective companies. Any liability regarding the correctness and completeness of information and/or specifications in the brochure is excluded. All rights are reserved to alter specifications, make modifications, or terminate models without prior notice. The specifications of a model may vary from country to country. Sprecher...
