bulk bag filler

Product catalog summary

Overview: The document provides detailed information on Spiroflow's innovative solutions for dust-free filling and weighing stations used in various industries such as food, dairy, chemicals, pharmaceuticals, plastics, building products, and minerals. It highlights the versatility and adaptability of their equipment, particularly for bulk bags, rigid IBCs, and drums.

Key Features and Specifications:

Bulk Bag Weigh/Fillers: Designed for versatility, these fillers include features like bag/liner inflation, inflatable neck seals, and vibratory bases for deaeration and compaction. Optional equipment includes spinner filling heads, automatic bag removal, and pallet dispensers.
Model C Series: Ideal for low to medium volume requirements, featuring a modular construction that allows for future upgrades. Standard features include a 4-post design, inflatable neck seal, and vibration facility. Options include automatic height adjustment and pneumatic bag loop release.
Model LC Series: Built for heavy-duty operations, this model allows for easy removal by loops and includes robust weigh platforms and vibration facilities. It can fill up to 20 bulk bags per hour.
Low Profile Fillers: Designed for areas with height restrictions, these fillers allow for filling without a forklift, using a low loading ramp and pallet base.

Operational Considerations:

Determining requirements involves assessing the need for bag liners, grounding equipment, automation, vibration, and dust containment.
Handling options include using pallets or bag loops, and consulting with manufacturers for optimal bag styles and sizes.

Additional Equipment: Spiroflow offers a range of other equipment including flexible screw conveyors, vacuum conveyors, bulk bag dischargers, and continuous mixing systems.

Company Information: Spiroflow has manufacturing facilities in the UK and USA, with a strong emphasis on after-sales service and customer partnerships. They offer a fully equipped test facility and on-site trials.

Catalog excerpts

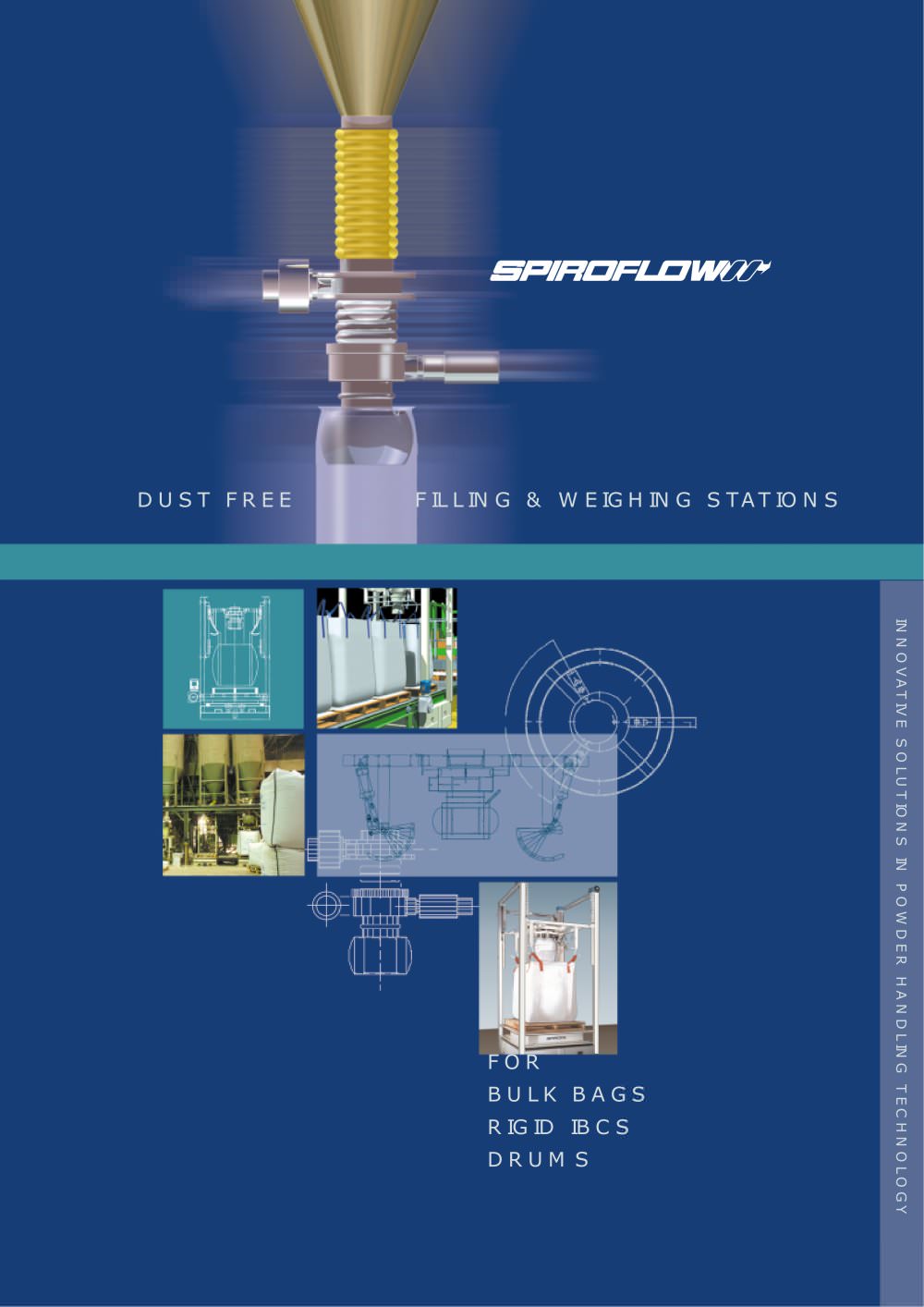

INNOVATIVE SOLUTIONS IN POWDER HANDLING TECHNOLOGY >

Open the catalog to page 1

Q. How do we handle the bulkbag? Q. What bag style and size do weuse? > A. By pallet or by the bag loops. A. At this stage, you shouldconsult both the bag manufacturer and Spiroflow. The bag needs to optimise all its volume for safe storage and transport. > Q. Is automatic loop release andheight adjustment available? A. Yes, automatic loop release offilled bags is a useful labour saving option for pallet loaded bags. Powered height adjustment is also recommended if different sizes of bag are being filled in order to speed up the filling process. Q. Can the filling system beautomated? A. If filling...

Open the catalog to page 2

STANDARD FEATURES: 4 post design Automaticbag loop release > Inflatable neck seal for dust-free filling.Quick release latchablehooks or tubular bars for suspension of FIBCs. Vibration facility forproduct deaeration and compaction to provide a stable load for storage and transport (electrical or pneumatic operation). Approved load cell weigh platform and controller. Stainless steel fillingnozzle: dual concentric filling spout combines venting system with integral bag/liner inflator. Alternative Cђ Type with horizontal support arms.Powered roller, mesh or belt conveyor foreasy removal of Bulk Bags.Pneumatic...

Open the catalog to page 3

Inflatable neck seal for dust-free filling.Stainless steel filling nozzle anddual concentric filling spoutcombines venting system withintegral bag/liner inflator. Fill rate up to 20 Bulk Bags perhour depending on bag size and material infeed rate. Rise and fall bag loop supportarms designed for quick andeasy removal by fork lift truck.These arms are fully adjustable to suit varying bag sizes.Robust weigh platformmounted on four load cells with mechanical overload protection. Vibration facility for productdeaeration and compaction toprovide a stable load for storage and transport (ModelLCV). Electrical...

Open the catalog to page 4

Spiroflows low loader means bulk bags can nowbe filled without the need for a forklift. The Low loading ramp and low profile pallet base makes unloading filled bulk bags a simple task with a pallet truck. > OPTIONS: Vibration facility for product deaeration and compaction.Certified load cell weigh platform. Bulk bag and liner inflation. Integral controls. Adjustable arms for multiple bag sizes. Pneumatic neck seal inflation for dust-free filling.Venturi attachment for facility-supplied dust collection.Flow control. > OPERATION: Height restrictions can sometimes pose aproblem filling Bulk Bags....

Open the catalog to page 5

bulk bag filler
