Standard Range power springs

Product catalog summary

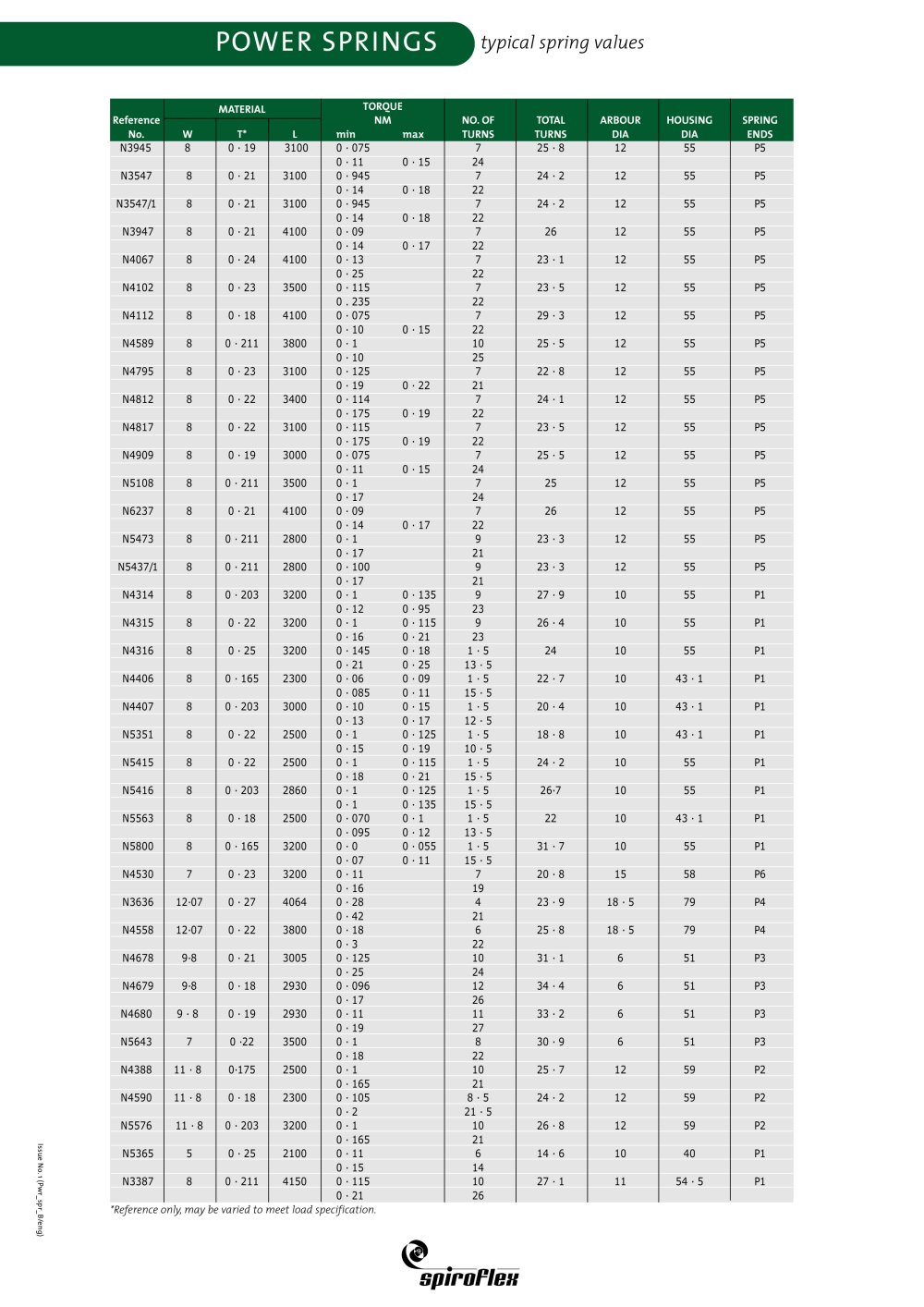

Material Torque Specifications:
This document provides detailed specifications for various power springs, including material torque values, reference numbers, and other critical parameters. Each entry includes:

Reference Number: Unique identifier for each spring.
Material Width (W): The width of the material used in the spring.
Thickness (T*): The thickness of the spring material, with a note that it may vary to meet load specifications.
Length (L): The length of the spring material.
Minimum and Maximum Torque: The range of torque values the spring can handle.
Total Turns: The number of turns the spring can make.
Arbour Diameter (DIA): The diameter of the arbour around which the spring is wound.
Spring Ends: The type of ends on the spring, denoted by a code (e.g., P5, P1).

Key Observations:

The document lists multiple springs with varying specifications, indicating a wide range of applications and load capacities.
Some springs have similar specifications but differ in minor parameters, suggesting customization for specific applications.
The note on thickness variation highlights the importance of adapting specifications to meet specific load requirements.
