Brush Springs

Product catalog summary

Overview: This document provides specifications for a range of brush springs used in various applications. The data includes load capacities, material dimensions, and spring characteristics.

Specifications:

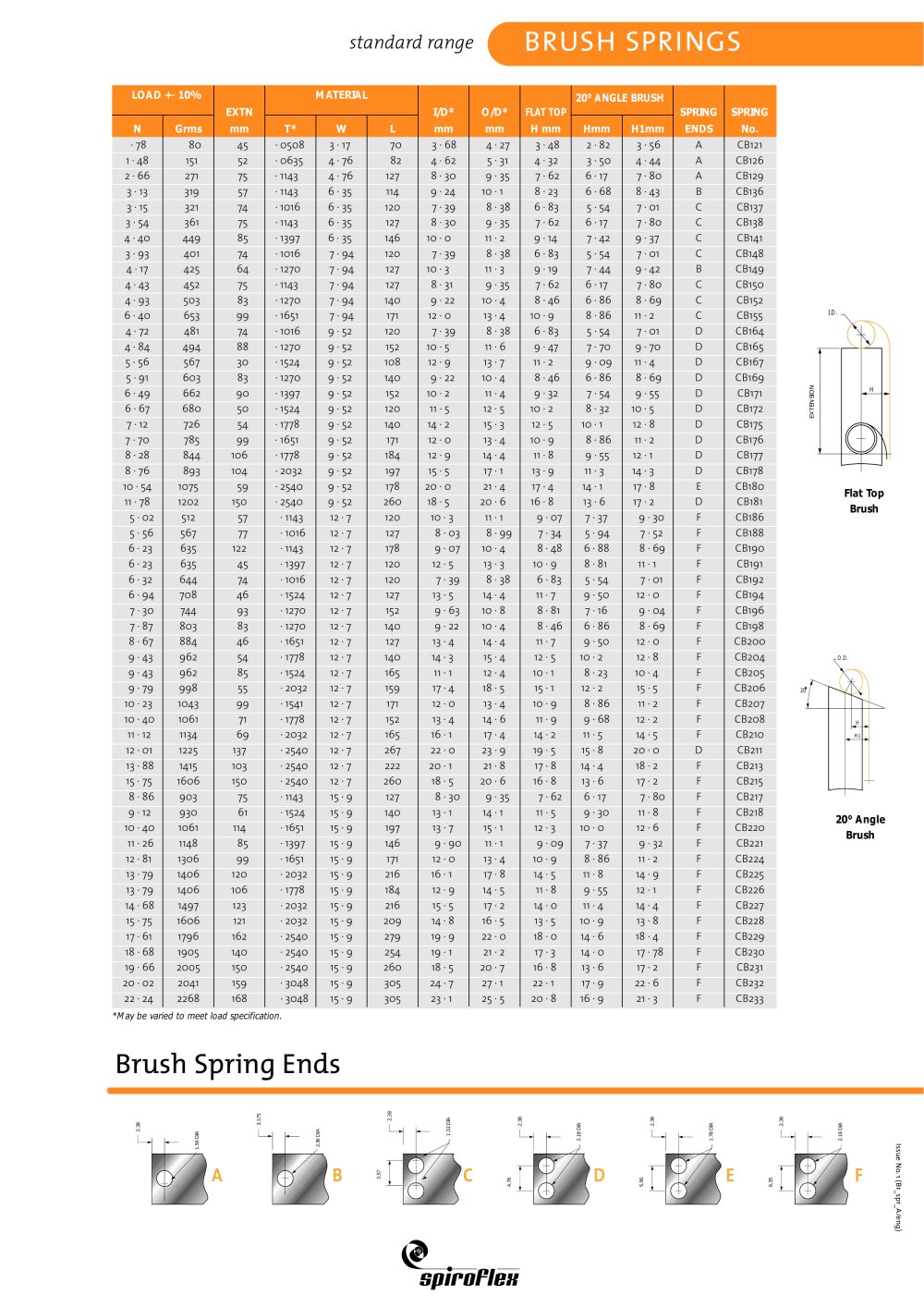

Load: The load capacity varies by model, with a range of approximately 78 to 22,240 grams.
Material: The springs are designed to accommodate a 20° angle brush.
Dimensions: Key dimensions include internal diameter (I/D), outer diameter (O/D), and height (H, H1).

Spring Characteristics:

Extension: The extension values are specified for each model, indicating the spring's ability to extend under load.
Ends: Different types of spring ends are noted, such as A, B, C, D, E, and F, which may affect the spring's application and performance.

Data Summary: The document includes a detailed table listing each spring model with its corresponding specifications, such as load, dimensions, and spring type. This information is crucial for selecting the appropriate spring for specific applications.

Key Considerations:

Ensure the selected spring meets the load requirements of the application.
Consider the material and dimensional specifications to ensure compatibility with the intended use.
Review the spring end type to ensure it fits the application requirements.
