MNCS© Mobile Network Combining System

Product catalog summary

Overview
The SPINNER Mobile Network Combining System (MNCS®) is a versatile solution designed for the efficient use of antennas in both general wireless and in-house networks. It supports a wide frequency range from 380 to 2700 MHz, covering all major bands such as CDMA2000, GSM900, GSM1800, UMTS, TETRA, and WLAN, and complies with 3GPP standards.

Key Features

Compact and modular 19” design, allowing for easy upgrades and modifications.
Short installation downtime and high reliability due to factory mounting and testing.
Cost-effective with shared infrastructure and reduced costs through multi-operator and multi-band antenna sharing.
High transmission capacity and space-saving solutions.

Technical Specifications

Utilizes passive components to ensure low intermodulation values and excellent signal isolation.
Filter assemblies provide clear signal decoupling, preventing interference between connected systems.
System components can be mounted in configurable cabinets and racks, with options for customer-specific solutions.

Applications

Indoor and outdoor solutions for combining multiple UMTS NodeBs and GSM BTSs into common antenna ports.
SPINNER multiplexer technology ensures very low insertion loss and guaranteed intermodulation values of -155 dBc.

Catalog excerpts

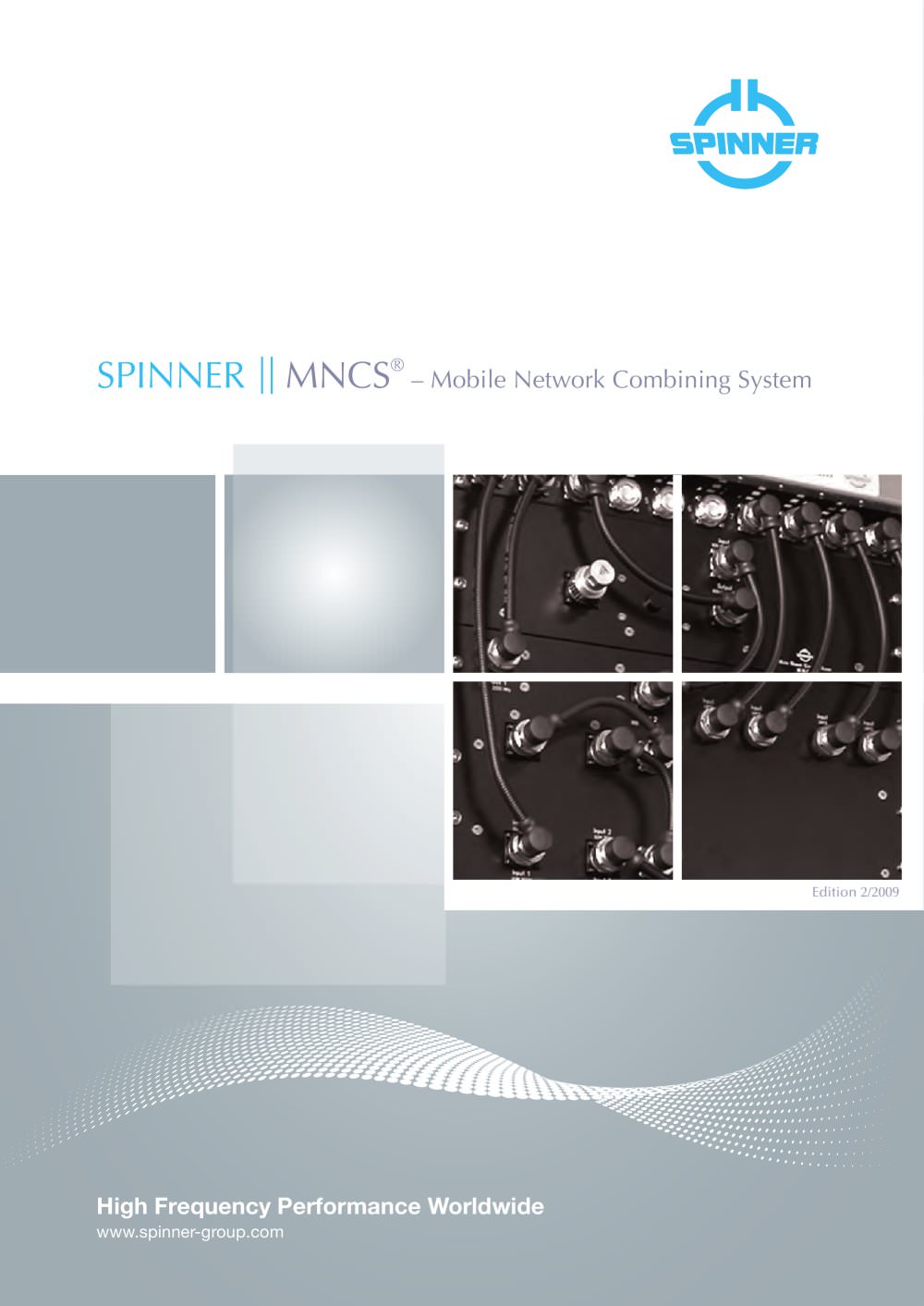

SPINNER || MNCS® – Mobile Network Combining System Edition 2/2009 High Frequency Performance Worldwide www.spinner-group.com

Open the catalog to page 1

..Compact design ..19” modular design ..Upgradable ..Short downtime for installation ..High reliability ..Factory mounted and tested ..Cost saving ..kompaktes Design ..19” modulare Bauweise ..beliebig erweiterbar ..kurze Abschaltzeit ..hohe Zuverlässigkeit ..vormontiert und geprüft ..kostengünstig The – Mobile Network Combining System – offered by SPINNER is a future-orientated solution for the multiple utilization of antennas in the general wireless network or for in-house networks. The system bandwidth ranging from 380 to 2700 MHz covers all frequency bands in use, including CDMA2000, GSM900,...

Open the catalog to page 2

Multi-Operator – Multi-Band Antenna Sharing ..reduziert Kosten durch Mehrfachnutzung ..entspricht den Vorgaben der Lizenzbehörden ..bietet platzsparende Lösungen ..ermöglicht hohe Übertragungskapazitäten Multi-Operator – Multi-Band Antenna Sharing ..Shared infrastructure – shared costs ..Up to licensing guidelines ..Overcomes space limitations ..A llows for high capacity demand MNCS® – Mobile Network Combining System – Indoor & Outdoor Solutions

Open the catalog to page 3

3./MC/Feiner 1.2010 Abbildungen unverbindlich | Figures not binding Konstruktionsänderungen vorbehalten | Designs subject to modification SPINNER GmbH | Erzgiessereistr. 33 | 80335 München | Germany | www.spinner-group.com Tel.: +49 89 12601-0 | Fax: +49 89 12601-1292 MNCS®-Systemschrankfür die Zusammenschaltung von: 4 UMTS-NodeB mit je 2 Sektor-Ausgängen und 2 GSM1800-BTS mit je 1 Sektor-Ausgang und 2 GSM900-BTS mit je 1 Sektor-Ausgang auf 2 gemeinsame Antennen-Anschlüsse Alle Ein-/Ausgänge (7-16 Kuppler) auf dem Schrankdach angebordnet. Die SPINNER Multiplexer-Technologie bietet sehr geringe...

Open the catalog to page 4
