Jumper Cables

Product catalog summary

Specifications:
The document outlines the specifications for SPINNER jumper cables, focusing on high-frequency performance. The cables have an impedance of 50 Ohms and are available in two sizes: SF 3/8" and SF 1/2". The minimum bending radius for repeated bending is 25 mm for SF 3/8" and 32 mm for SF 1/2". Intermodulation (IM3) performance is specified at ≤ -160 dBc, with typical values at -165 dBc.

VSWR (Voltage Standing Wave Ratio):
The document provides typical VSWR values for cable lengths ≤ 5 m across various frequencies (1000 MHz to 5825 MHz). The values vary slightly depending on the connector configuration (straight or right angle).

Attenuation and Power Rating:
Maximum attenuation and mean power ratings are provided for both SF 3/8" and SF 1/2" cables across the same frequency range. SF 1/2" cables generally have lower attenuation and higher power ratings compared to SF 3/8" cables.

Features and Benefits:
The cables are noted for their excellent VSWR and intermodulation properties, long-term performance, and high RF screening efficiency. They feature a complete 360° induction soldering connection and a special profile gasket to prevent moisture ingress, even under extreme conditions (IP68).

Manufacturing and Customization:
SPINNER emphasizes its modern manufacturing processes, ensuring high quality and short delivery times. The company offers customization options, including phase adjustment and additional protective sheaths. All cables comply with the EU RoHS directive 2002/95/EEC.

Ordering Information:
Customers can order by specifying connector combinations and cable lengths, with order confirmation provided within 24 hours. Various connector configurations are available, including 7-16 and N type plugs and sockets.

Catalog excerpts

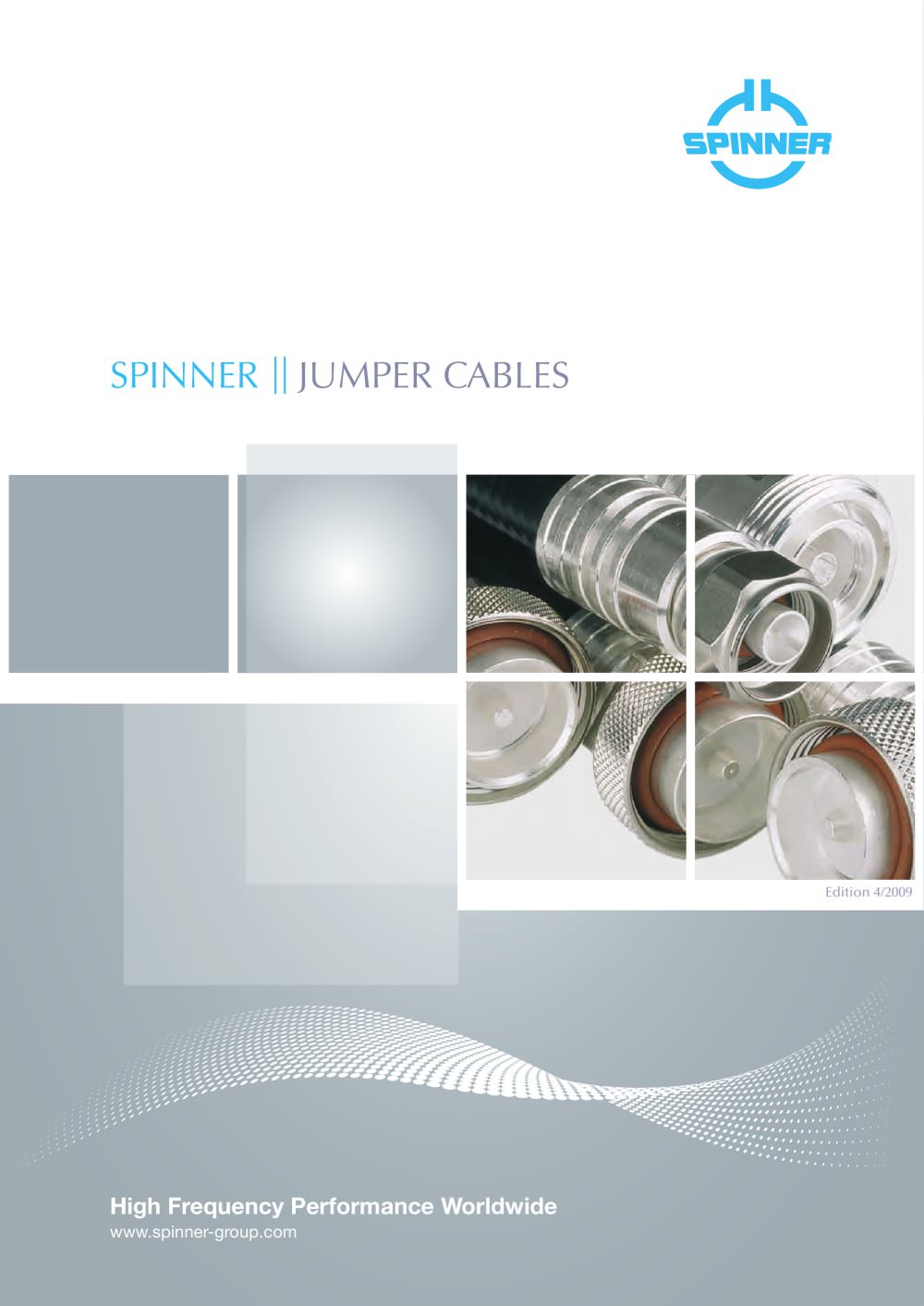

SPINNER || JUMPER CABLES Edition 4/2009 High Frequency Performance Worldwide www.spinner-group.com

Open the catalog to page 1

THERE IS NO BETTER WAY TO TRANSMIT YOUR RF SIGNAL Wellenwiderstand Impedance 50 Ohm min. Biegeradius (wiederholte Biegung) Min. bending radius (repeated bending) SF 3/8" 25 mm SF 1/2" 32 mm Intermodulation (IM3) 2 x 20 W f1 = 1770 MHz; f2 = 1810 MHz; fIM3 = 1850 MHz - 160 dBc typ. - 165 dBc VSWR - typische Werte für Kabellängen 5 m - typical values for cable length 5 m 1000 MHz 2200 MHz 2700 MHz 3800 MHz 5825 MHz Kabel mit 2 geraden Steckverbindern Cable with 2 straight connectors 1.03 1.05 1.06 1.08 1.10 Kabel mit 1 geraden und 1 Winkelsteckverbinder Cable with 1 straight and 1 right angle connector...

Open the catalog to page 2

.. Lieferbar für 1/2" und 3/8" Kupferwellrohrkabel .. Hervorragende VSWR-Werte und IM-Eigenschaften .. Ausgezeichnete Langzeiteigenschaften .. Komplette 360° Induktionslötverbindung der Innen-. und Außenleiter .. Hohe HF-Dichtigkeit .. Spezialprofildichtung verhindert das Eindringen von. Feuchtigkeit zwischen Kabelmantel und Steckverbinder, sogar unter extremen Umgebungsbedingungen (IP68) .. Lieferung mit Schutzkappen SPINNER has long-standing experience in manufacturing high-quality jumper cables for mobile communication. applications. Our most modern manufacturing and testing processes ensure...

Open the catalog to page 3

3./MC/Feiner 11.2009 Abbildungen unverbindlich | Figures not binding Konstruktionsänderungen vorbehalten | Designs subject to modification SPINNER GmbH | Erzgiessereistr. 33 | 80335 München | Germany | www.spinner-group.com Tel.: +49 89 12601-0 | Fax: +49 89 12601-1292 Für Ihre Bestellung nennen Sie uns einfach die benötigten Steckverbinder-Kombinationen und Kabellängen. Innerhalb von 24 Stunden erhalten Sie dann die Auftragsbestätigung von uns. All you need to do to order a jumper cable assembly is to tell us the required connector combinations and cable lengths. Within 24 hours you will receive...

Open the catalog to page 4
