Tungsten Carbide

Product catalog summary

General Information
Tungsten Carbide materials are known for their high compressive strength, hardness, and wear resistance, along with the ability to withstand shock and impact. These properties make them suitable for applications such as valves, flowmeters, ball screws, linear bearings, ballizing, gauging, and ball pens.

Material Specification

Composition: Tungsten Carbide (93-95%), Cobalt (5-7%)
Hardness: Hra 90.5 - 91.5
Mechanical Properties:
- Density: 14.947 - 15.0 g/cm³
- Thermal Conductivity: 100 W/m/°C
- Electrical Resistivity: 20 µ ohms/cm
- Linear Expansion Coefficient:
  - 20 - 400°C: 4.9 x 10^-6/°C
  - 20 - 800°C: 5.3 x 10^-6/°C
- Transverse Rupture Strength @ 20°C: 2600 N/mm²
- Fracture Toughness K_c @ 20°C: 12 MN/m^3/2
- Compressive Strength @ 20°C: 6200 N/mm²
- Poisson's Ratio: 0.22
- Magnetic Properties: Slightly magnetic
Size Range: 1.588mm (1/16") to 50.800mm (2")
Standard Grades Available: 5, 10, 25, 100

Catalog excerpts

Tungsten Carbide 93 - 95 % Cobalt 5 - 7 % > Density 14.947 - 15.0% g/cm > 3 o Thermal Conductivity 100 W/m/C Electrical Resistivity 20 u ohms/cm Linear Expansion Coefficient 20 - 400C > o 4.9 10/C > -6o Linear Expansion Coefficient 20 - 800C > o 5.3 10/C > -6o Transverse Rupture Strength @ 20C > o 2600 N/mm > 2 Fracture Toughness K c @ 20C > o 12 MN/m > 2 Compressive Strength @ 20C > o 6200 N/mm > 2 Poisson's Ratio 0.22 Magnetic Properties Slightly magnetic >

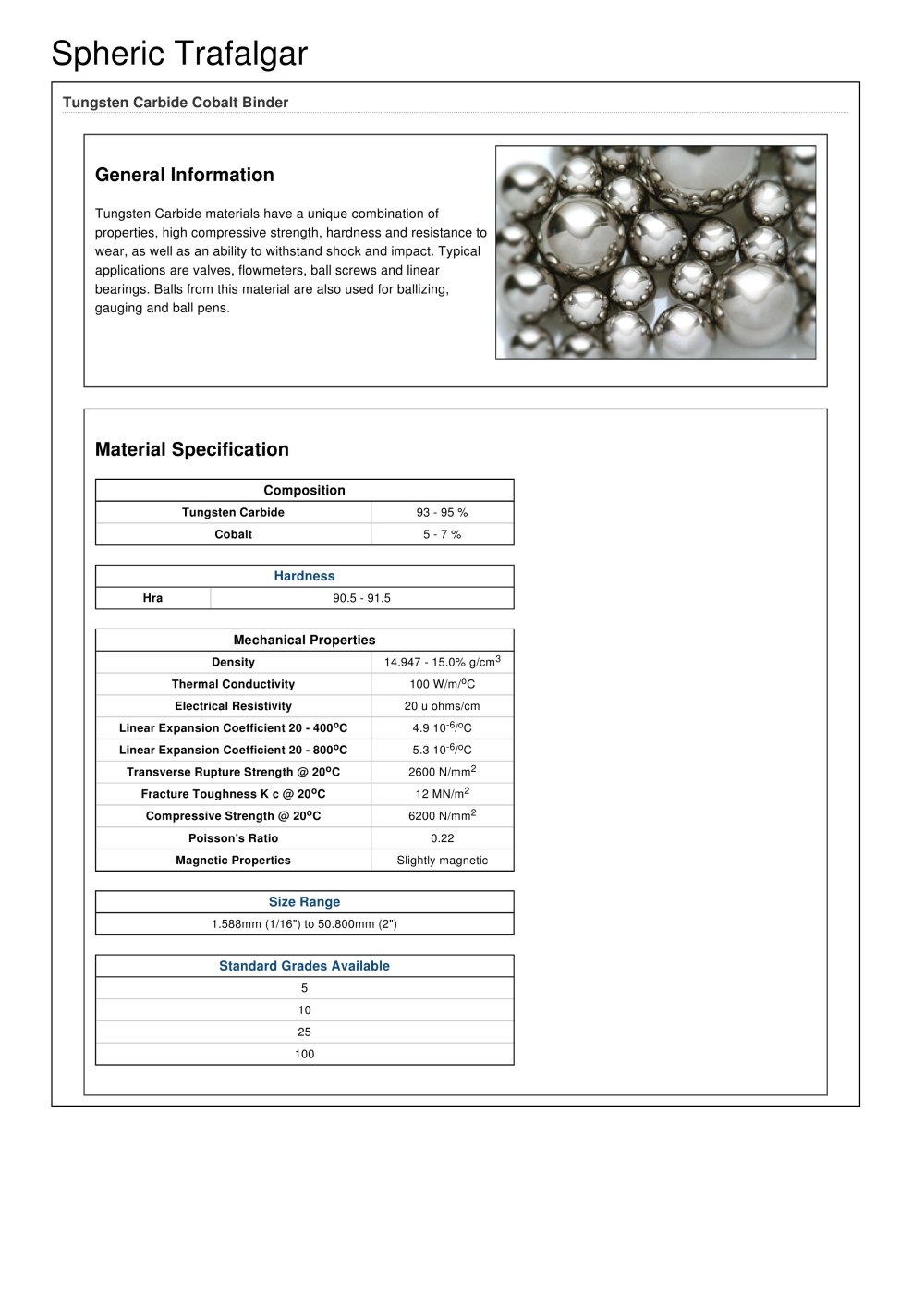

Open the catalog to page 1
