Ceramic Balls
Product catalog summary
General Information
Ceramic balls are ideal for harsh environments due to their lower density, reduced thermal expansion, and increased hardness compared to steel. They are 40% less dense, have 29% lower thermal expansion, and are 150% harder than steel. In high-speed applications, their lifespan can be extended up to 100 times. The primary materials used are Alumina Oxide, Zirconia Oxide, and Silicon Nitride.
Ceramic balls are ideal for harsh environments due to their lower density, reduced thermal expansion, and increased hardness compared to steel. They are 40% less dense, have 29% lower thermal expansion, and are 150% harder than steel. In high-speed applications, their lifespan can be extended up to 100 times. The primary materials used are Alumina Oxide, Zirconia Oxide, and Silicon Nitride.
Material Specifications
- Alumina Oxide: Composed of 99.5% Al2O3, it has a hardness of 1700 Hv, an ultimate tensile strength of 31,000 psi, and a compressive strength of over 300,000 psi. Its modulus of elasticity is 53 x 106 psi, and it can withstand temperatures up to 1400°C. It is inert except for hydrofluoric and hot concentrated sulfuric acids.
- Zirconia Oxide: Composed of 97% ZrO2, it has a hardness of 80 - 84 Ra, an ultimate tensile strength of 60,000 psi, and a compressive strength of 285,000 psi. Its modulus of elasticity is 29 x 106 psi, and it can withstand temperatures up to 2400°C. It is inert to most substances but not recommended for hydrochloric or strong alkaline solutions.
- Silicon Nitride: Composed of 87% Si3N4, it has a hardness of 1400 - 1700 Hv and a compressive strength of over 570,000 psi. Its modulus of elasticity is 44-45 x 106 psi, and it can withstand temperatures up to 1000°C. It is inert to most substances.
See more

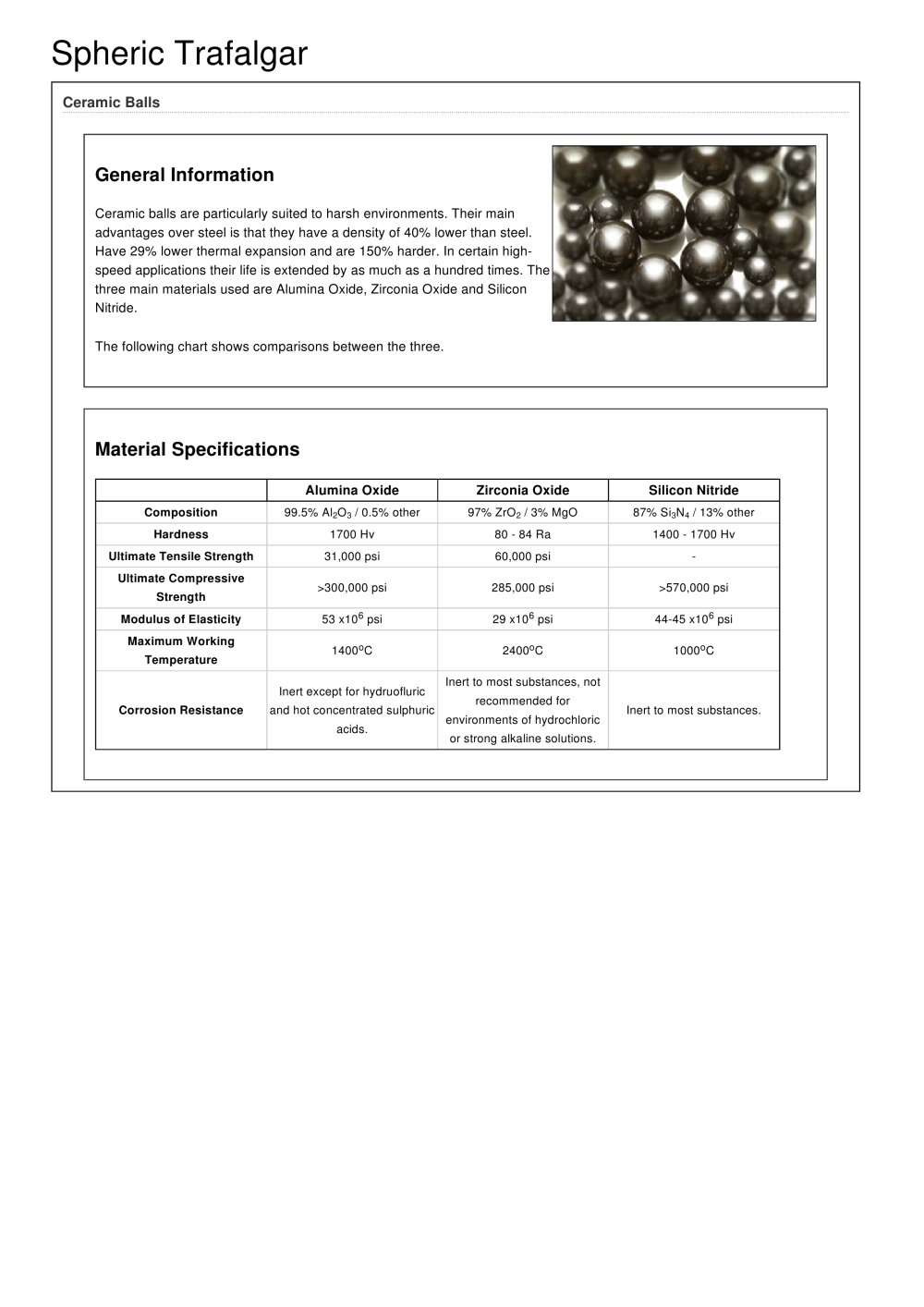

Catalog excerpts
Composition 99.5% AlO / 0.5% other97% ZrO / 3% MgO87% SiN / 13% other > 23234 Hardness 1700 Hv 80 - 84 Ra 1400 - 1700 Hv Ultimate Tensile Strength 31,000 psi 60,000 psi - Ultimate Compressive Strength >300,000 psi 285,000 psi >570,000 psi Modulus of Elasticity 53 x10 psi29 x10 psi44-45 x10 psi > 666 ooo Maximum Working Temperature 1400C2400C1000C Inert except for hydruofluric and hot concentrated sulphuric Corrosion Resistance acids. Inert to most substances, not recommended for environments of hydrochloric or strong alkaline solutions. Inert to most substances. >
