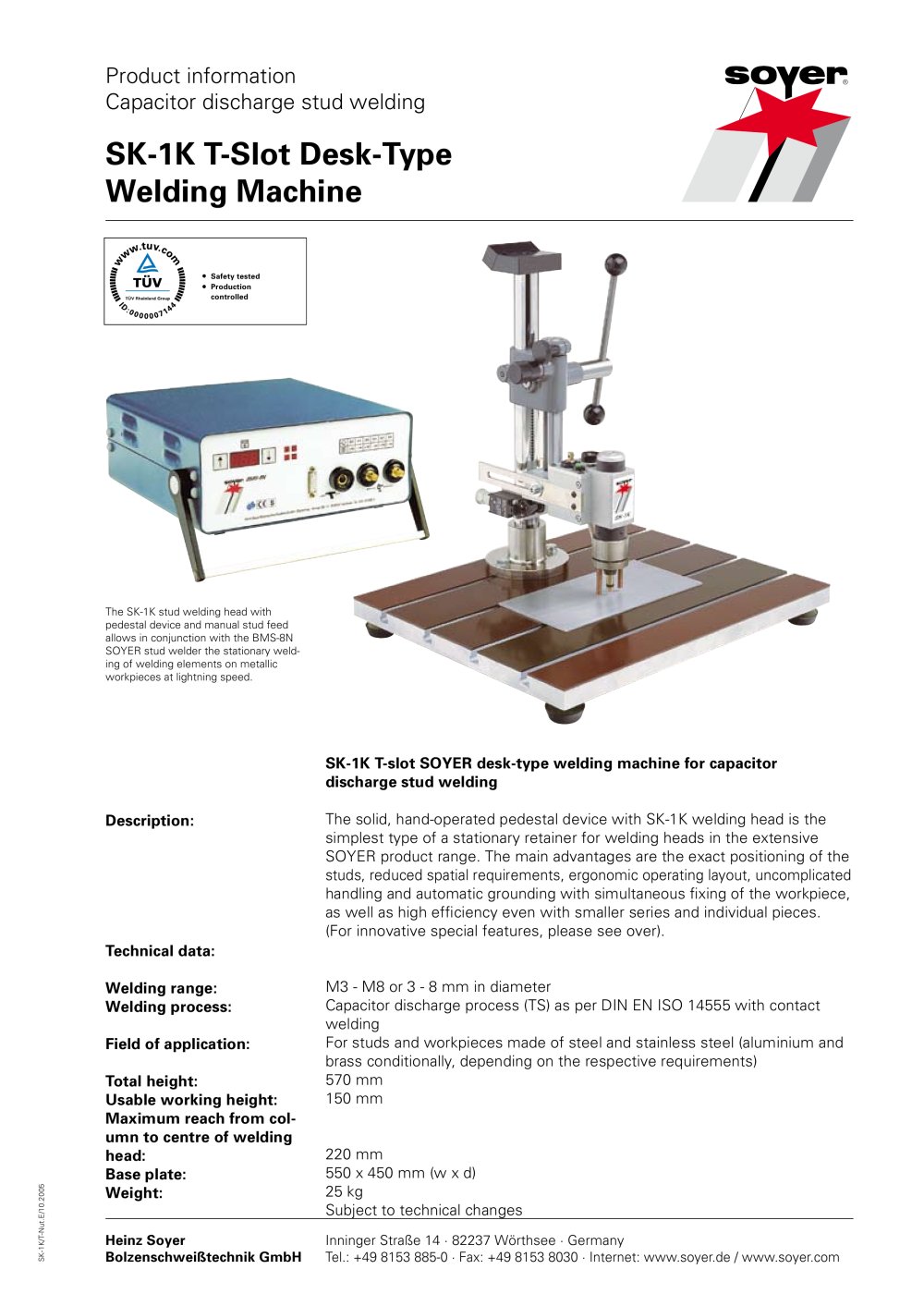

SK-1K T-Slot Desk-Type Welding Machine
1 / 2 PagesView full catalog
SK-1K T-Slot Desk-Type Welding Machine
Product catalog summary
Product Overview: The SK-1K T-slot desk-type welding machine by Heinz Soyer Bolzenschweißtechnik GmbH is a stationary pedestal device designed for capacitor discharge stud welding. It features a hand-operated SK-1K welding head, offering precise stud positioning, ergonomic operation, and high efficiency for small series and individual pieces.
Technical Specifications:
- Welding Range: M3 - M8 or 3 - 8 mm in diameter
- Welding Process: Capacitor discharge process (TS) as per DIN EN ISO 14555 with contact welding
- Field of Application: Suitable for steel and stainless steel, with conditional use for aluminum and brass
- Dimensions: Total height 570 mm, usable working height 150 mm, maximum reach 220 mm
- Base Plate: 550 x 450 mm (w x d)
- Weight: 25 kg
Innovative Features:
- Adjustable in all motional axes (X Y Z) for universal application
- Large, accessible aluminum bench plate with T-slots
- Fully insulated plastic-coated bench plate to prevent charring and burns
- High stud positioning accuracy of +/- 0.1 mm
- Long service life with wear-free guide bush and ball bearing
Quality and Safety: The machine is safety tested and production controlled, conforming to DIN EN ISO 9001:2000 standards. It has received international approval and EC conformity, ensuring high production quality and design standards.
