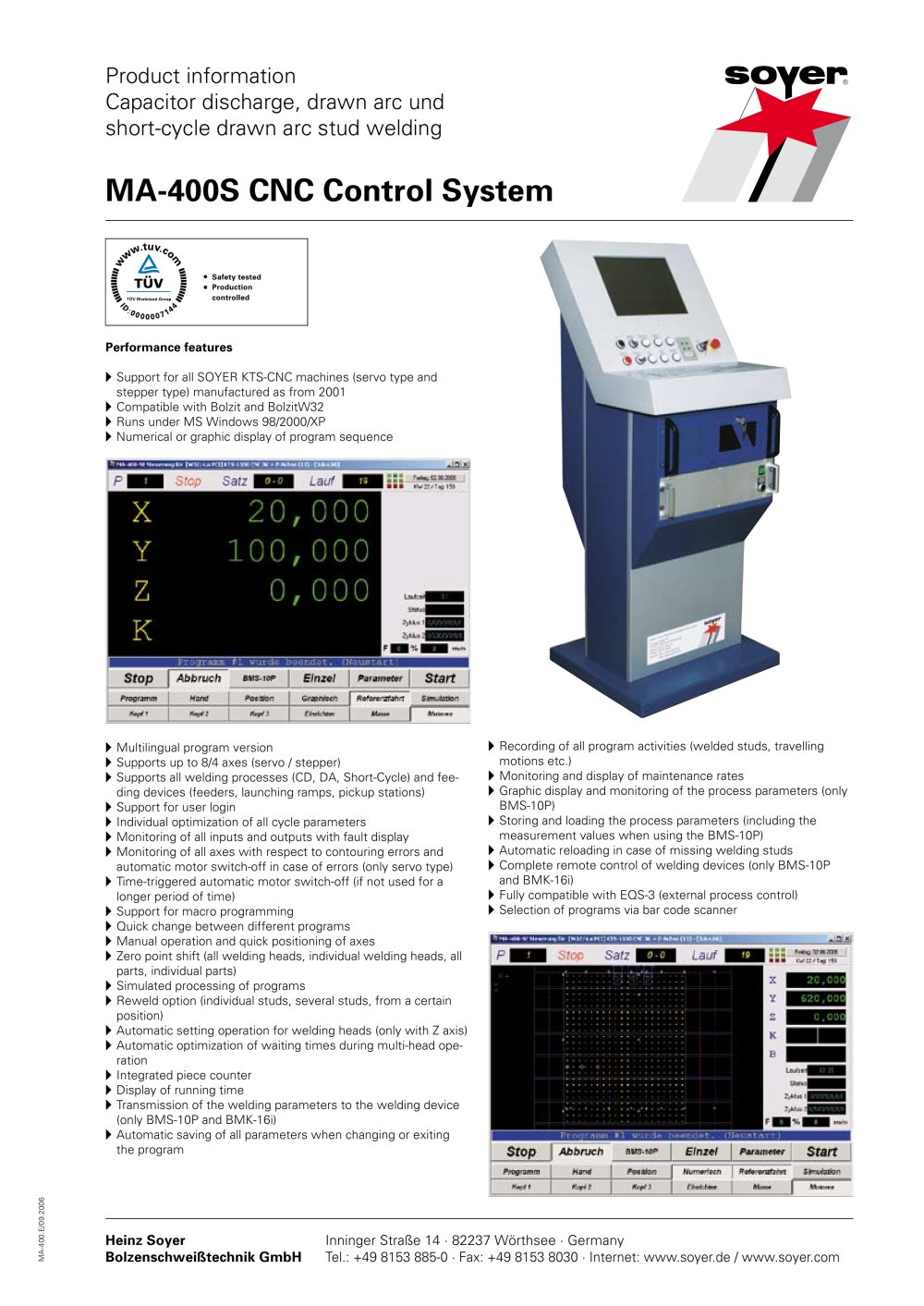

Overview: The MA-400S CNC Control System by Heinz Soyer Bolzenschweißtechnik GmbH is designed for use with SOYER KTS-CNC machines, supporting both servo and stepper types manufactured from 2001 onwards. It is compatible with Bolzit and BolzitW32 and operates under MS Windows 98/2000/XP.

Performance Features: The system supports up to 8/4 axes (servo/stepper) and all welding processes, including CD, DA, and Short-Cycle. It offers multilingual program versions, user login support, and individual optimization of cycle parameters. Key features include monitoring of inputs/outputs, contouring error detection, macro programming, and quick program changes. It also supports manual operation, zero point shifts, simulated processing, and automatic setting operations for welding heads.

Remote Control Features: The system allows remote control of BMS-10P and BMK-16i welding devices, supporting up to four devices and mixed operation. It provides automatic transmission of welding parameters and measurement values, with multilingual support available in German and English.

System Requirements: The system requires an IBM-compatible PC with at least 2 GHz, MS Windows 98/2000/XP, 256 MB RAM (512 MB recommended), and a minimum resolution of 1024 x 768 dpi. A Microsoft-compatible mouse is also necessary.

Quality and Standards: The product adheres to international quality standards, including DIN EN ISO 9001:2000 and DIN EN ISO 13918. It has received various industry awards and certifications for safety and design.
