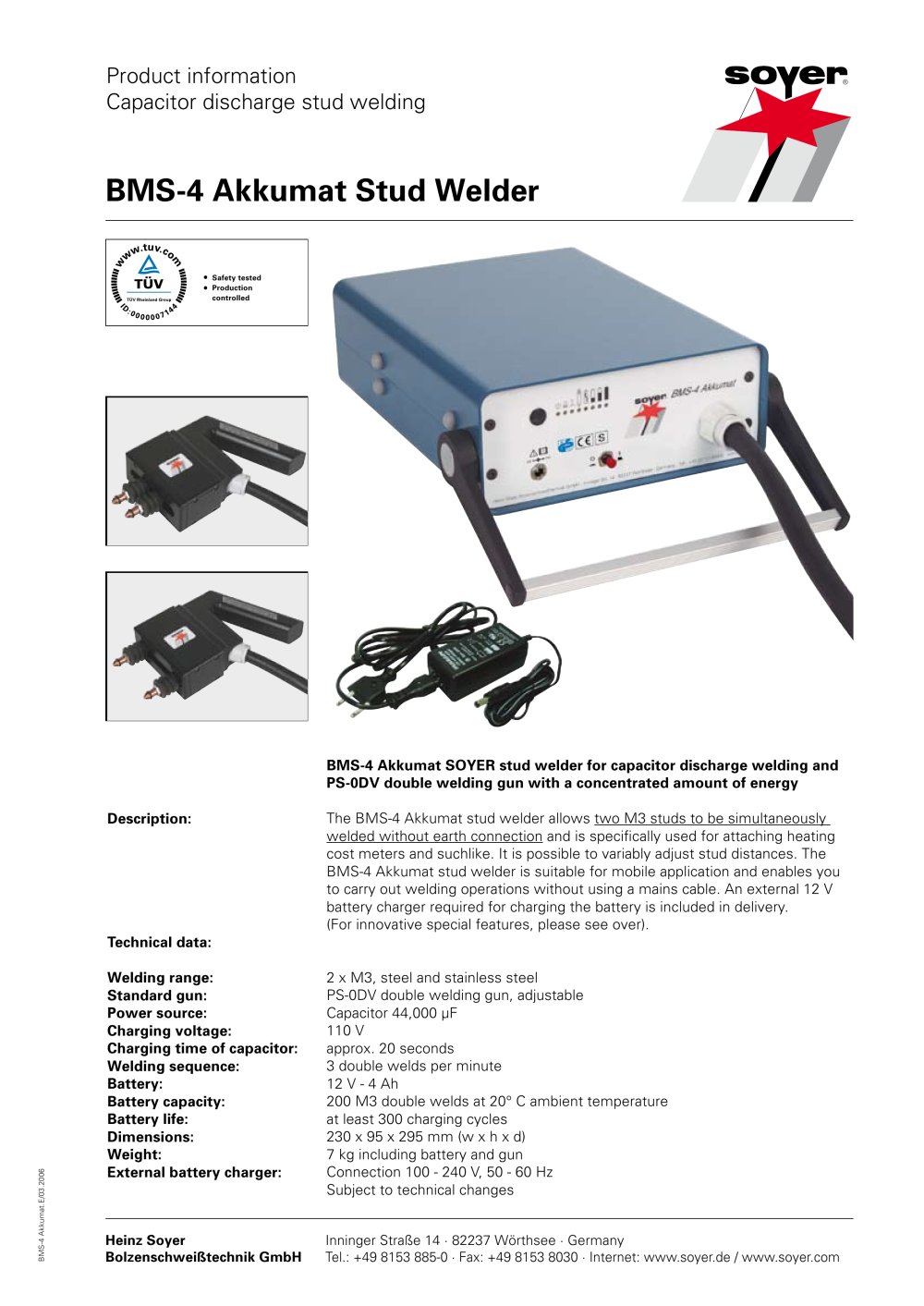

BMS-4 Akkumat

Product catalog summary

Product Overview: The BMS-4 Akkumat SOYER stud welder is designed for capacitor discharge welding, specifically for attaching heating cost meters. It allows simultaneous welding of two M3 studs without an earth connection and is suitable for mobile applications.

Technical Specifications:

Welding Range: 2 x M3, steel and stainless steel
Standard Gun: PS-0DV double welding gun, adjustable
Capacitor: 44,000 µF
Charging Voltage: 110 V
Charging Time: Approximately 20 seconds
Welding Sequence: 3 double welds per minute
Battery: 12 V - 4 Ah
Battery Capacity: 200 M3 double welds at 20°C ambient temperature
Battery Life: At least 300 charging cycles
Dimensions: 230 x 95 x 295 mm
Weight: 7 kg including battery and gun
External Battery Charger: Connection 100 - 240 V, 50 - 60 Hz

Safety and Compliance: The product meets safety and accident prevention regulations, electromagnetic compatibility standards, and European machinery directives. It holds GS/CE/S marks for verified safety and complies with DIN EN ISO 9001:2000 and DIN EN ISO 13918 standards.

Innovative Features:

Processor-guided artificial intelligence for functional and work flows
Automatic system test and self-monitoring of functions
Special battery charging control and deep-discharging protection
Quick-change battery system and charge display
Single-button operation to prevent maloperation
Automatic standby mode and switch-off
Compact, lightweight design with a flexible connecting cable
Adjustable double welding head from 20 - 60 mm
Anti-spatter protection, sound insulation, and arc shielding
Optional synthetic case for easy transport

Applications: The BMS-4 Akkumat is particularly suited for attaching heating cost meters to metallic steel panel radiators, offering high-quality stud welded joints.
