LP - Cam Latches
1 / 1 PageView full catalog
LP - Cam Latches
Product catalog summary

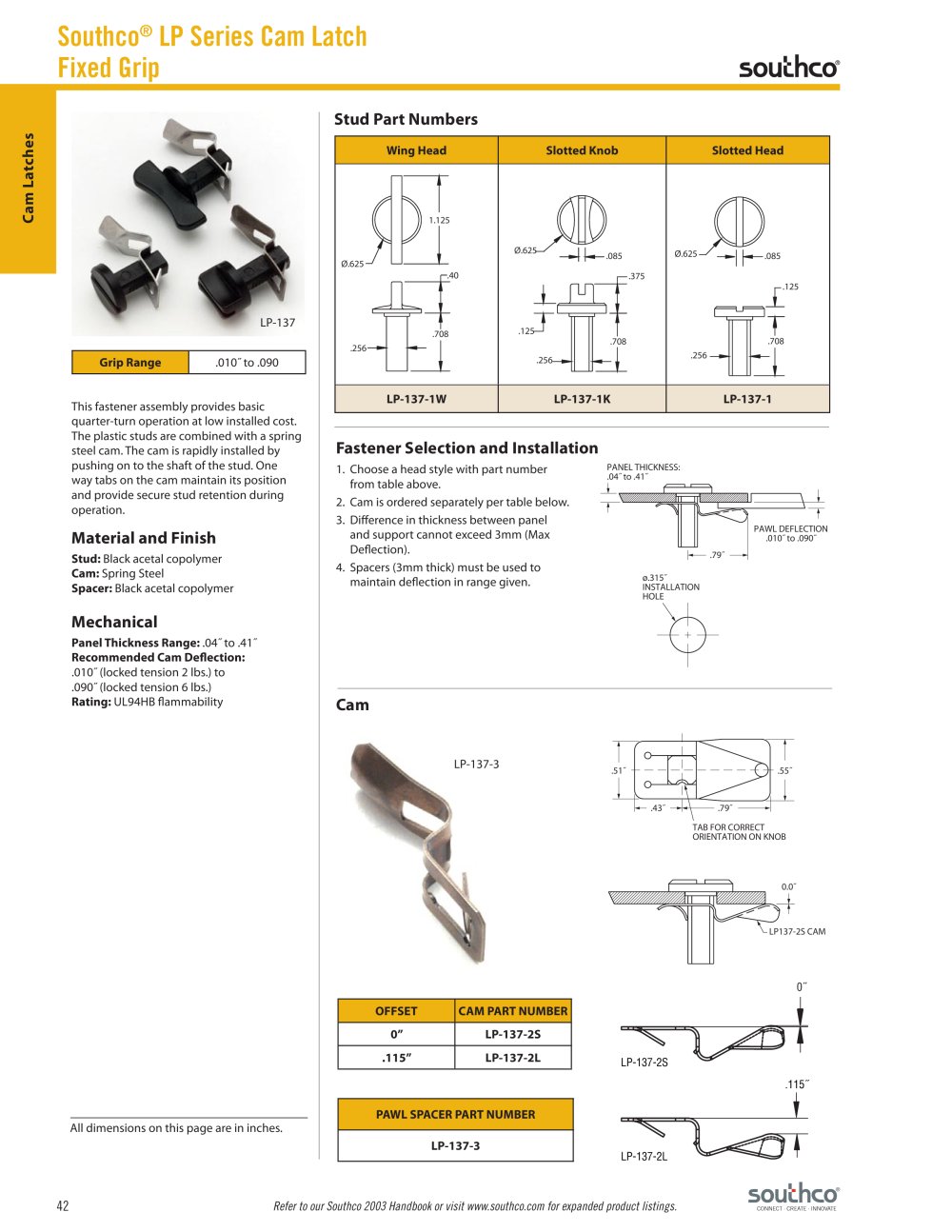

Overview: The document provides technical specifications and installation instructions for the Southco LP Series Cam Latch, specifically the LP-137 model. This fastener assembly is designed for basic quarter-turn operation with a focus on low installation cost.
Specifications:
- Grip Range: .010˝ to .090˝
- Panel Thickness: .04˝ to .41˝
- Material: Stud and Spacer made of Black acetal copolymer; Cam made of Spring Steel
- Flammability Rating: UL94HB
Installation Instructions:
- Select a head style and corresponding part number from the provided table.
- Order the cam separately according to the table.
- Ensure the difference in thickness between the panel and support does not exceed 3mm to maintain proper deflection.
- Use 3mm thick spacers to maintain the deflection within the recommended range.
Mechanical Details:
- Recommended Cam Deflection: .010˝ (locked tension 2 lbs.) to .090˝ (locked tension 6 lbs.)
- Offset Cam Part Numbers: LP-137-2S (0”), LP-137-2L (.115”)
Additional Notes: The cam is installed by pushing it onto the shaft of the stud, with one-way tabs ensuring secure retention during operation. All dimensions are provided in inches.
