HP - Cam Latches
1 / 1 PageView full catalog
HP - Cam Latches
Product catalog summary

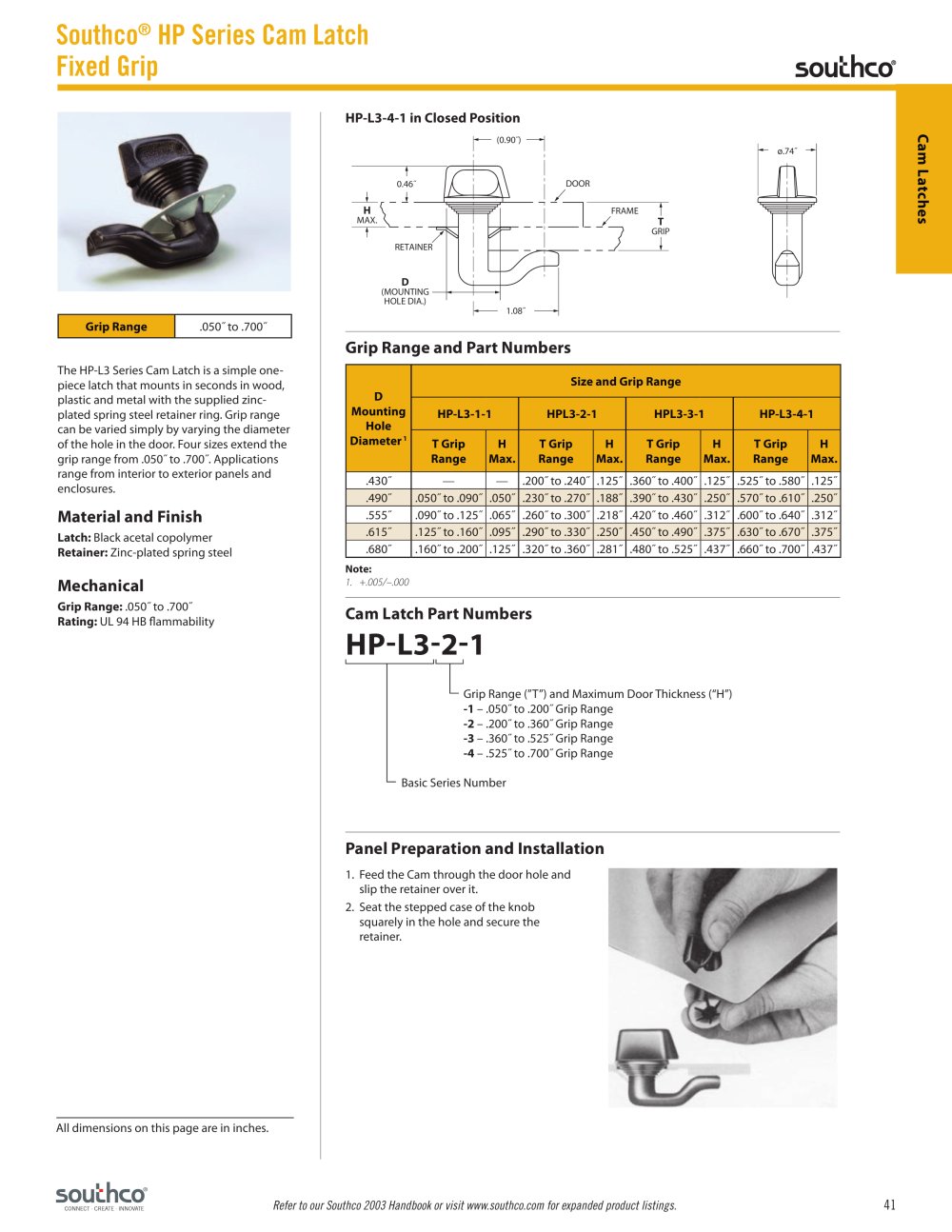

Overview: The document provides technical specifications and installation instructions for the Southco HP Series Cam Latch, specifically the HP-L3 Series. This latch is designed for quick installation in various materials such as wood, plastic, and metal.
Specifications:
- Material: The latch is made from black acetal copolymer, and the retainer is made from zinc-plated spring steel.
- Grip Range: The latch offers a grip range from 0.050 inches to 0.700 inches, adjustable by varying the diameter of the mounting hole.
- Flammability Rating: UL 94 HB.
Product Variants:
- HP-L3-1-1: Grip range not specified.
- HP-L3-2-1: Grip range 0.200 inches to 0.240 inches.
- HP-L3-3-1: Grip range 0.360 inches to 0.400 inches.
- HP-L3-4-1: Grip range 0.525 inches to 0.580 inches.
Installation Procedure:
- Feed the cam through the door hole.
- Slip the retainer over the cam.
- Seat the stepped case of the knob squarely in the hole and secure the retainer.
Applications: Suitable for both interior and exterior panels and enclosures.
