61 - Universal Cabinet Series Latches
1 / 2 PagesView full catalog
61 - Universal Cabinet Series Latches
Product catalog summary

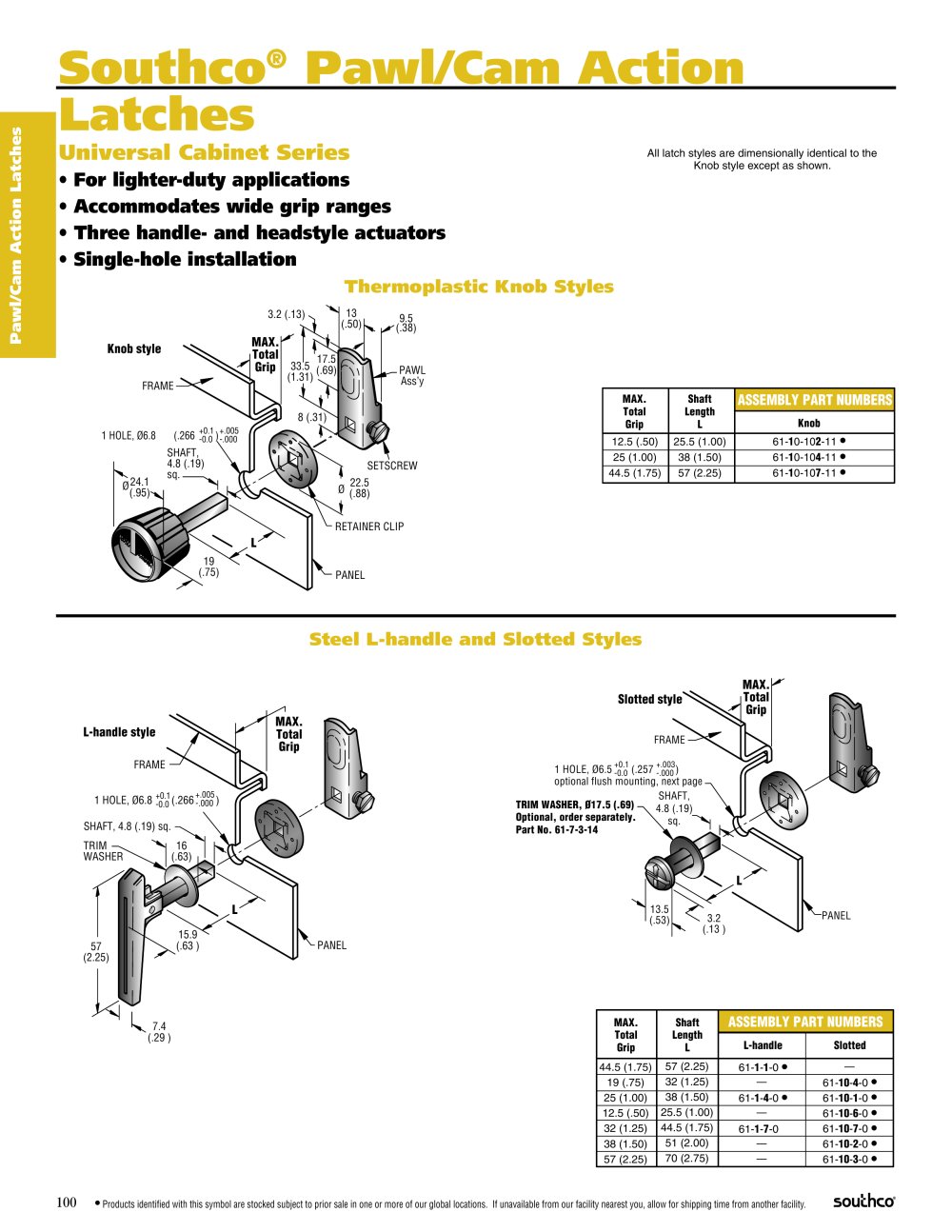

Overview: The document provides technical specifications and installation guidelines for Southco® Pawl/Cam Action Latches, specifically designed for lighter-duty applications. These latches accommodate wide grip ranges and are available in three handle and headstyle actuators: L-handle, slotted, and knob styles.
Specifications:
- Materials: The latches are made from various materials including 1010 and 1008 steel, nylon, and low carbon steel, with finishes such as bright nickel plating and zinc plating with chromate sealer.
- Dimensions: Detailed measurements are provided for each component, including shaft lengths, hole sizes, and maximum grip ranges.
- Product Strength: The maximum static load capacity is 110 N (25 lbs).
Installation Procedures:
- Single-hole installation is required for all latch styles.
- Retainer clip installation involves pressing the retainer down the shaft until snug against the panel, using a shaped installation tool.
- Pawl adjustment is necessary to achieve the proper grip position, followed by tightening the setscrew.
Optional Components:
- Flush mounting cups are available for slotted style assemblies and must be ordered separately.
- Trim washers are optional and can be ordered separately.
Assembly Part Numbers: Various part numbers are listed for different latch styles and configurations, indicating the availability of components for specific applications.
Material and Finish Details: Detailed descriptions of materials and finishes for each component are provided, ensuring compatibility and durability in various environments.
