ISONIC PA AUT 16/32
4Pages

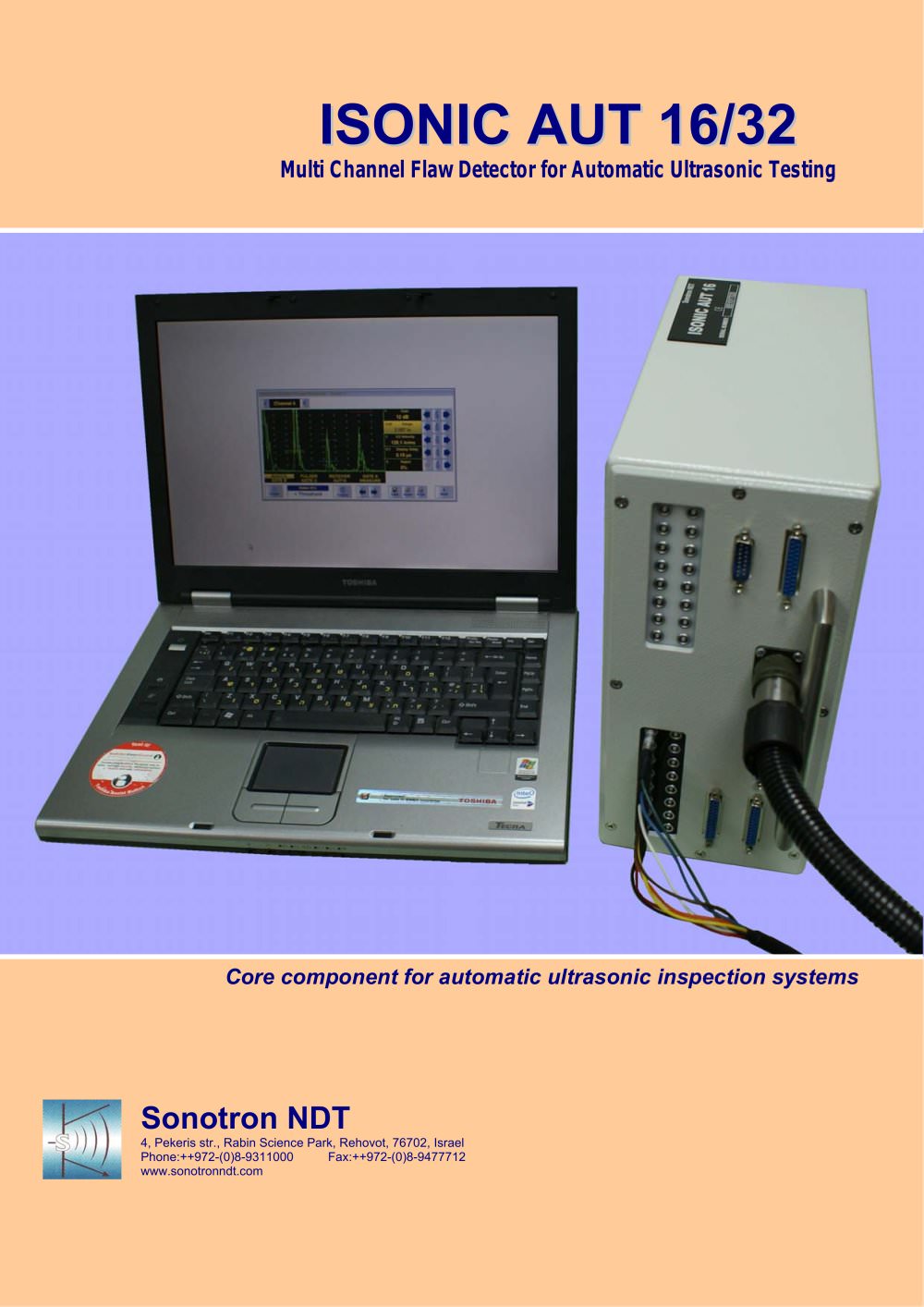

Multi Channel Flaw Detector for Automatic Ultrasonic Testing ISSOONNIICCAAUUTT1166//3322 I > Core component for automatic ultrasonic inspection systems Sonotron NDT 4, Pekeris str., Rabin Science Park, Rehovot, 76702, Israel Phone:++972-(0)8-9311000 Fax:++972-(0)8-9477712 www.sonotronndt.com size="-4">

PEAmplitude / TOF Pulse Echo Strip represents peak amplitude and time of flight for signals matching with Gate and exceeding its threshold level Position of > Time of Flight (TOF) Rectangle Amplitude Line Amplitude Line trace to full strip width level. Width of gray on the strip is proportional to the signal height. Echo amplitude equal or exceeding 100% of A-Scan height brings is proportional to the signal position within the Gate. For signals, whichs time of flight measurement point matches with the Gate end width of gray Timeof Flight (TOF) Rectangle is equal to the full strip width For...

For the area scanning inspection data may be presented in a form combining amplitude / TOF / Thickness C-Scan, B- and D-Scan, 3D-View, etc. Significant increasing of scanning speed is provided through use of grape-, brush-, or other type of composition of several probes driven each by its own channel into one inspection head Raw data A-Scans are stored completely upon saving inspection results into a file and may be played-back and processed off-line then enabling echo-dynamic pattern analysis, defects sizing, outlining, pattern recognition. Inspection data may be converted into widely used...

Number of Channels: 16 - ISONIC AUT 16 32 - ISONIC AUT 32 Pulsing/Receiving Methods: Parallel - all channels do fire, receive, digitize, and record signals simultaneously Sequential cycles of firing, receiving, digitizing, and recording signals by each channel are separated in time in a sequence loop Pulse Type: Bipolar Square Wave Pulse Initial Transition: 5 ns (10-90%) Pulse Amplitude**: Smoothly tunable (12 levels) 75 V օ 400 V peak to peak into 50 Pulse Duration*: 50600 ns for each half wave synchronously controllable in 10 ns step Modes*: Single / Dual PRF**: 0 Ŗ optionally; 15...5000...
