ISONIC 2008
12Pages

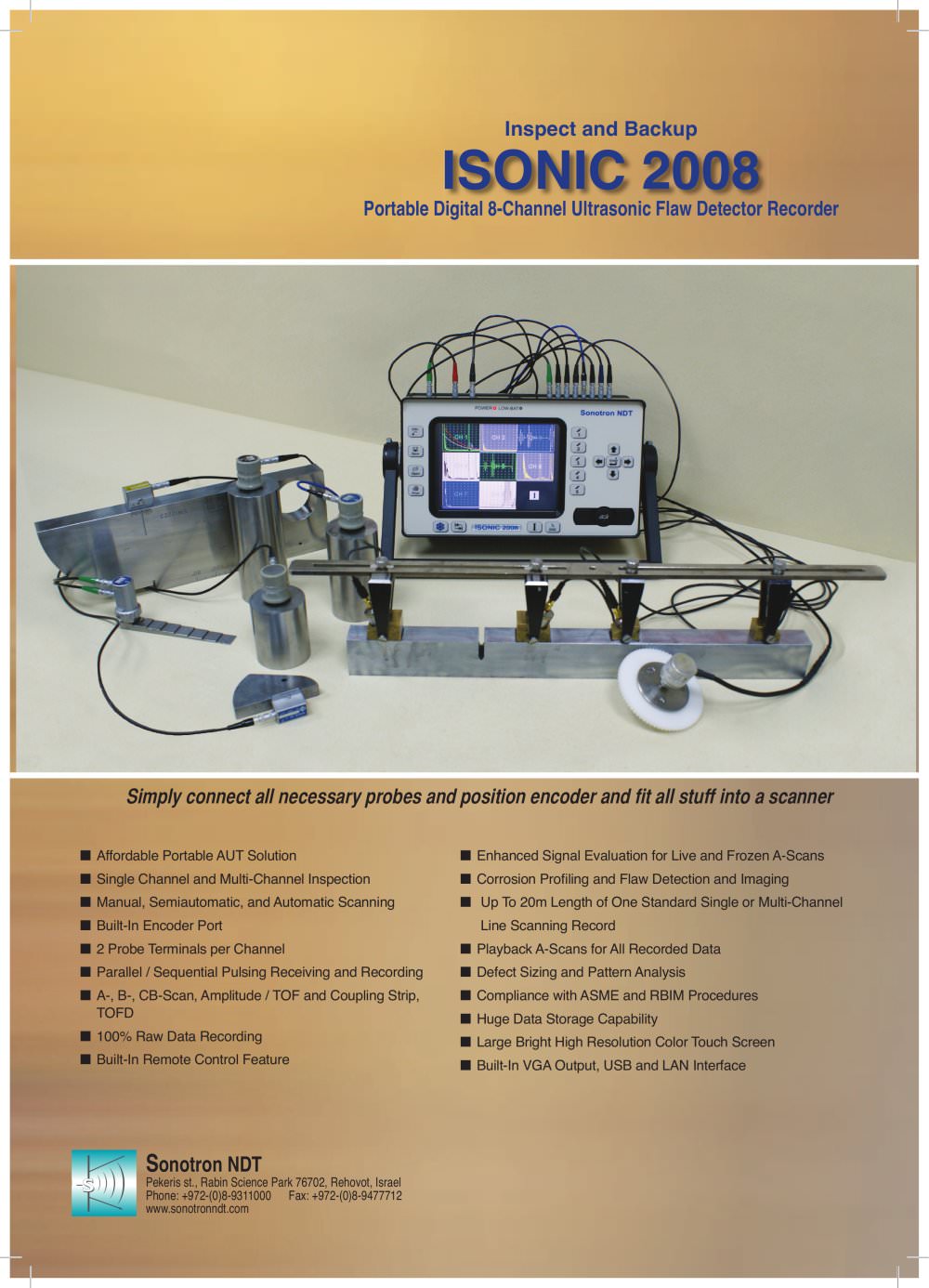

Inspect and Backup Portable Digital 8-Channel Ultrasonic Flaw Detector Recorder > Simply connect all necessary probes and position encoder and fit all stuff into a scanner > ■■ ■ ■ ■ ■ ■■■ Affordable Portable AUT Solution Single Channel and Multi-Channel Inspection Manual, Semiautomatic, and Automatic Scanning Built-In Encoder Port 2 Probe Terminals per Channel Parallel / Sequential Pulsing Receiving and Recording A-, B-, CB-Scan, Amplitude / TOF and Coupling Strip, TOFD100% Raw Data Recording Built-In Remote Control Feature ■■ ■■■ ■ ■ ■ ■ Enhanced Signal Evaluation for Live and Frozen A-ScansCorrosion Profiling and Flaw Detection and Imaging Up To 20m Length of One Standard Single or Multi-Channel Line Scanning RecordPlayback A-Scans for All Recorded Data Defect Sizing and Pattern Analysis Compliance with ASME and RBIM Procedures Huge Data Storage Capability Large Bright High Resolution Color Touch Screen Built-In VGA Output, USB and LAN Interface Pekeris st., Rabin Science Park 76702, Rehovot, IsraelPhone: +972-(0)8-9311000 Fax: +972-(0)8-9477712 www.sonotronndt.com

Off-Line On-Line Thickness Profile imaging and recording is performed through continuous capturing of thickness readings along probe trace: > ●●● ●●● Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) mode of data recording are supported Complete sequence of A-Scans is recorded along with thickness profile Off-line evaluation of thickness profile record is featured with: Sizing of thickness damages at any location along stored image: remaining thickness, thickness loss, and length of damage Օ Play-back and evaluation of A-Scans obtained during...

Off-LineOn-Line CB-Scan horizontal plane-view imaging and recording of defects for shear, surface, and guided wave inspection performed through continuous measuring of echo amplitudes and reflectors coordinates along probe trace: > ●●● ●●● ● Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) mode of data recording are supported Complete sequence of A-Scans is recorded along with CB-Scan defects images Off-line evaluation of CB-Scan record is featured with: Sizing of defects at any location along stored image Ֆ coordinates and projection...

ISONIC 2008 comprises 8 identical UDS 3-6 pulsing-receiving channels. Most of parameters such as gain, filter settings, pulse duration, display mode, delay, range, ultrasound velocity, etc are individually calibrated per channel. Just firing level (the amplitude of initial pulse) and PRF (pulse repletion frequency) are common for all channels. Every channel may drive either single or dual element probe or probe pair through 2 probe terminals Every channel has its own signal digitizer (A/D Converter)Highest scanning speed may be achieved through simultaneous (parallel) pulsing,receiving,...

Multi-channel record includes few strips of the following types:TOFD Map Amplitude / TOF Pulse Echo Coupling Strips may appear in any combination created by an operator according to inspection procedure. Positioning of the probes in the scanner relatively to each other (the offset) to be keyed in at pre-scanning stage to align the strips > ●● ● ● 256 gray levels TOFD strip represents sequence of RF A-Scans whereas brightness of points for each horizontal line is modulated according to corresponding signal level. Main use TOFD strip is recording of TOFD channels data for weld inspection....

Amplitude / TOF Pulse Echo Strip represents peak amplitude and time of flight for signals matching with Gate and exceeding its threshold level Position of Amplitude Line on the strip is proportional to the signal height. Echo amplitude equal or exceeding 100% of A-Scan height brings Amplitude Line trace to full strip width levelWidth of gray Time of Flight (TOF) Rectangle is proportional to the signal position in the Gate. For signals, whichҒs time of flight measurement point matches with the Gate end width of gray Time of Flight (TOF) Rectangle is equal to the full strip widthFor defects...

● Conversion of any Map Strip into Amplitude / TOF Pulse Echo Strip and reversal > ●● Varying Region of Interest (Gate) settings for every Amplitude / TOF Pulse Echo Strip Marking defects and generating of Strip Chart Inspection Report >

● Postprocessing each strip individually using applicable technology either TOFD, CB-Scan, or Thickness Profile including full scope of suitable procedures such as defects sizing, snap-shoots, off-line Gain correction, filtering, etc > ● Converting combination of few strips into thickness, distance or amplitude C-Scan with further C-Scan analysis >

Usually multi-channel inspection is performed with use of manual, semiautomatic, or automatic scanner carrying all probes and position encoder, which are connected to the instrument using long umbilical. This conventional way may be implemented with use of ISONIC 2008, which is capable to drive probes and position encoder through up to 50 meters length umbilicalSo far use of umbilical was accepted by NDT community an no-alternative solution despite low reliability, problems with signal to noise ratio, heavy weight and high cost > An alternative to heavy, noisy, and expensive long umbilical...

Number of Channels: 8 Pulsing/Receiving Methods: Parallel - all channels do fire, receive, digitize, and record signals simultaneouslySequential cycles of firing, receiving, digitizing, and recording signals by each channel are separated in time in a sequence loop Pulse Type**: Bipolar Square Wave Pulse Initial Transition**: ֢ɤ5 ns (10-90%) Pulse Amplitude**: Smoothly tunable (12 levels) 75 V 400 V peak to peak into 50 ŢĦ Pulse Duration*: 50600 ns for each half wave synchronously controllable in 10 ns step Modes*: Single / Dual PRF**: 0 Ŗ optionally; 15...5000 Hz controllable in 1 Hz...
